MZ Magnum (MZ Rambler) - Bad Boy Zero-Turn Mower (2022) ENGINE - KAWASAKI FR651V Parts Diagram

Zero-Turn Mower

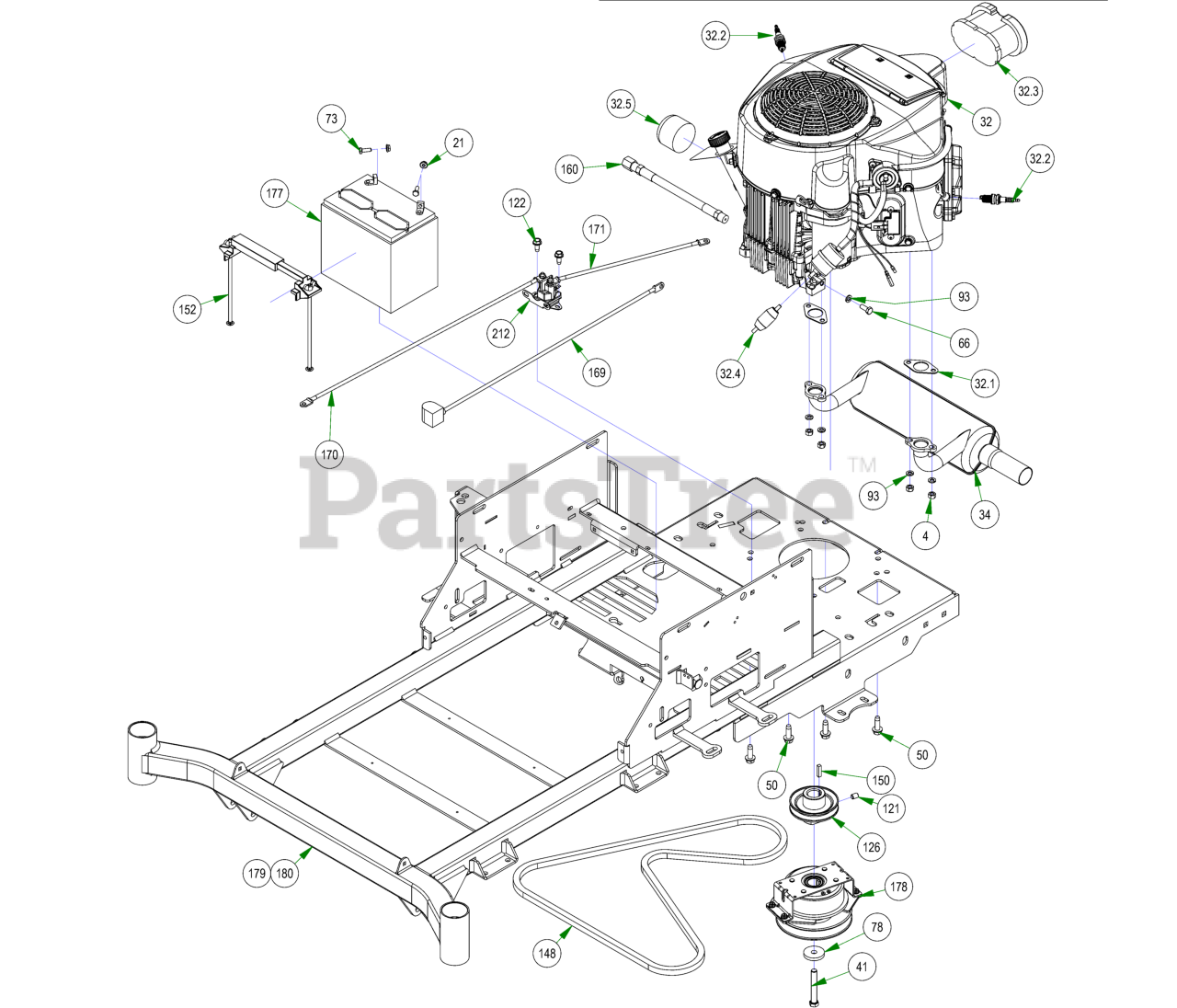

ENGINE - KAWASAKI FR651V Parts Diagram

  • Title

4

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

In Stock, only 2 left!

0

21

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

32

Bad Boy 015-0022-00

726cc Kawasaki Engine-FR651V

$2267.99

$

Usually ships in 4-7 days

0

34

Bad Boy 015-0052-00

Kawasaki Muffler 1251

$247.99

$

Usually ships in 4-7 days

0

41

Bad Boy 018-0007-21

7/16-20x3” Hex Bolt GR 8 W/ Patch

$3.49

$

Usually ships in 4-7 days

0

50

Bad Boy 018-1075-00

3/8-16 X 1-1/8HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS

$1.99

$

In Stock, Qty 11

0

66

Bad Boy 018-5321-00

M8-1.25 X 20MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$1.99

$

Usually ships in 4-7 days

0

73

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

78

Bad Boy 019-0010-00

CLUTCH WASHER

$6.49

$

In Stock, only 4 left!

0

93

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

121

Bad Boy 030-6029-00

3/8-16 X 1/2 SOCKET SET SCREW (CUP PT) PLAIN

$0.99

$

In Stock, only 2 left!

0

122

Bad Boy 030-7042-00

5/16-18 X 3/4HEX WASHER SLOT (F) TCS ZINC

$1.49

$

Usually ships in 4-7 days

0

126

Bad Boy 033-2010-00

3-3/4" Motor Pulley

$33.99

$

In Stock, only 4 left!

0

148

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

150

Bad Boy 042-6030-00

1/4 X 1 SQ MACHINERY KEY 1018 STL PLN

$4.99

$

In Stock, Qty 20+

0

152

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, Qty 11

0

160

Bad Boy 051-5404-00

Oil drain Hose

$45.99

$

In Stock, only 3 left!

0

169

Bad Boy 064-0030-00

24 inch Black Cable – MZ/ZT

$19.99

$

Usually ships in 4-7 days

0

170

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

171

Bad Boy 064-5301-00

12 in red battery cable

$18.99

$

In Stock, only 2 left!

0

177

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

178

Bad Boy 070-0055-00

Clutch

$319.99

$

Usually ships in 4-7 days

0

179

Bad Boy 070-5422-00

2022 MZ/ZT 54"-60" Frame

$

$

Currently unavailable

180

Bad Boy 070-5811-00

2022 MZ/ZT 42"-48" Frame

$

$

Not available

212

Bad Boy 108-0001-00

Solenoid

$31.99

$

In Stock, Qty 12

0

32.1

Bad Boy 015-0077-01

Exhaust Gasket

$7.99

$

In Stock, only 2 left!

0

32.2

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 9

0

32.3

Bad Boy 063-2097-00

Kawasaki Air Filter

$27.99

$

In Stock, Qty 11

0

32.4

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0

32.5

Bad Boy 063-8017-00

Oil Filter

$30.99

$

In Stock, Qty 20+

0
