MZ 6128 (966502301) - Husqvarna 61" Zero-Turn Mower (2010-02) Seat Parts Diagram

61" Zero-Turn Mower

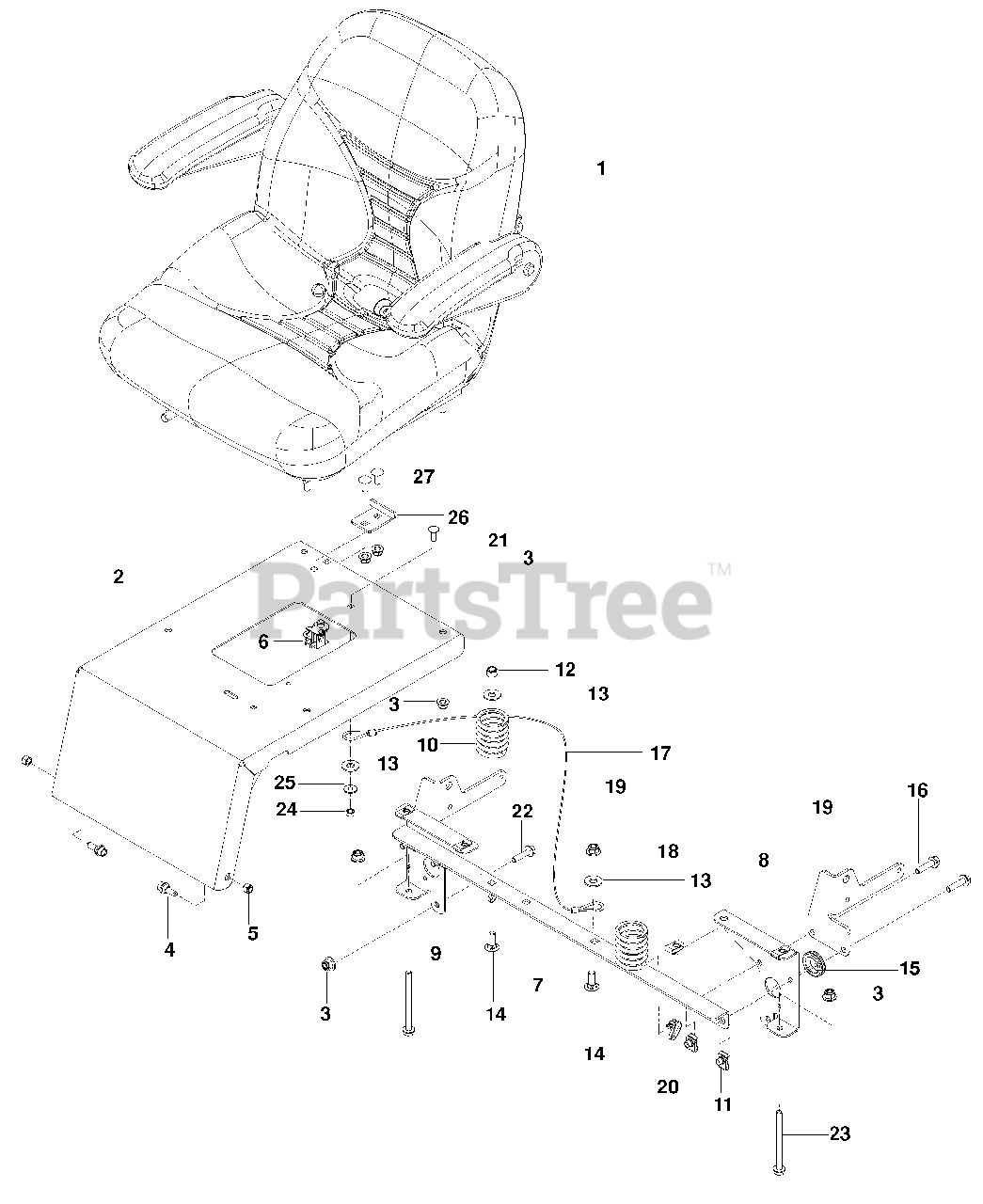

Seat Parts Diagram

  • Title
1

Husqvarna 539130873

SEAT
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575608601

MOUNT, SEAT w/ DECAL

$182.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

4

Husqvarna 539130896

BOLT 5/16-18 HEX HD

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539119741

SWITCH, SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

7

Husqvarna 539131656

SUPPORT, SEAT

$125.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575224102

SUPPORT, LT

$36.99

$

Usually ships in 3-10 days

0

9

Husqvarna 575224002

SUPPORT, RT

$42.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

11

Husqvarna 539104763

RETAINER, U TYPE 5/16-18

$6.49

$

In Stock, Qty 12

0

12

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990645

BOLT, RD HD 3/8-16 x 1

$

$

Not available

15

Husqvarna 539105974

GROMMET RUBBER

$

$

Not available

16

Husqvarna 525544001

HHFS 5/16-18 x 1 1/4 TPBLT

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539103247

LANYARD, SEAT

$21.99

$

In Stock, only 2 left!

0

18

Husqvarna 521996501

NUT 3/8-16 FLG HEX NYLOC

$

$

Not available

19

Husqvarna 575017402

MOUNT, SEAT BELT

$30.99

$

Usually ships in 3-10 days

0

20

Husqvarna 505280001

TIE WRAP w/ CLIP

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990074

RHSNB 1/4-40 x 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539113226

BOLT, HEX 5/16-18 x 1 THD FM
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539131780

SCREW, HX FLG 5/16-18 x 3 3/4

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

26

Husqvarna 539130793

DECK STOP
(Superseded to 539130794)

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539109100

RHSNB 5/16-18 x 3/4

$4.99

$

Usually ships in 3-10 days

0
