MZ 6128 (966502301) - Husqvarna 61" Zero-Turn Mower (2010-02) Parking Brake Parts Diagram

61" Zero-Turn Mower

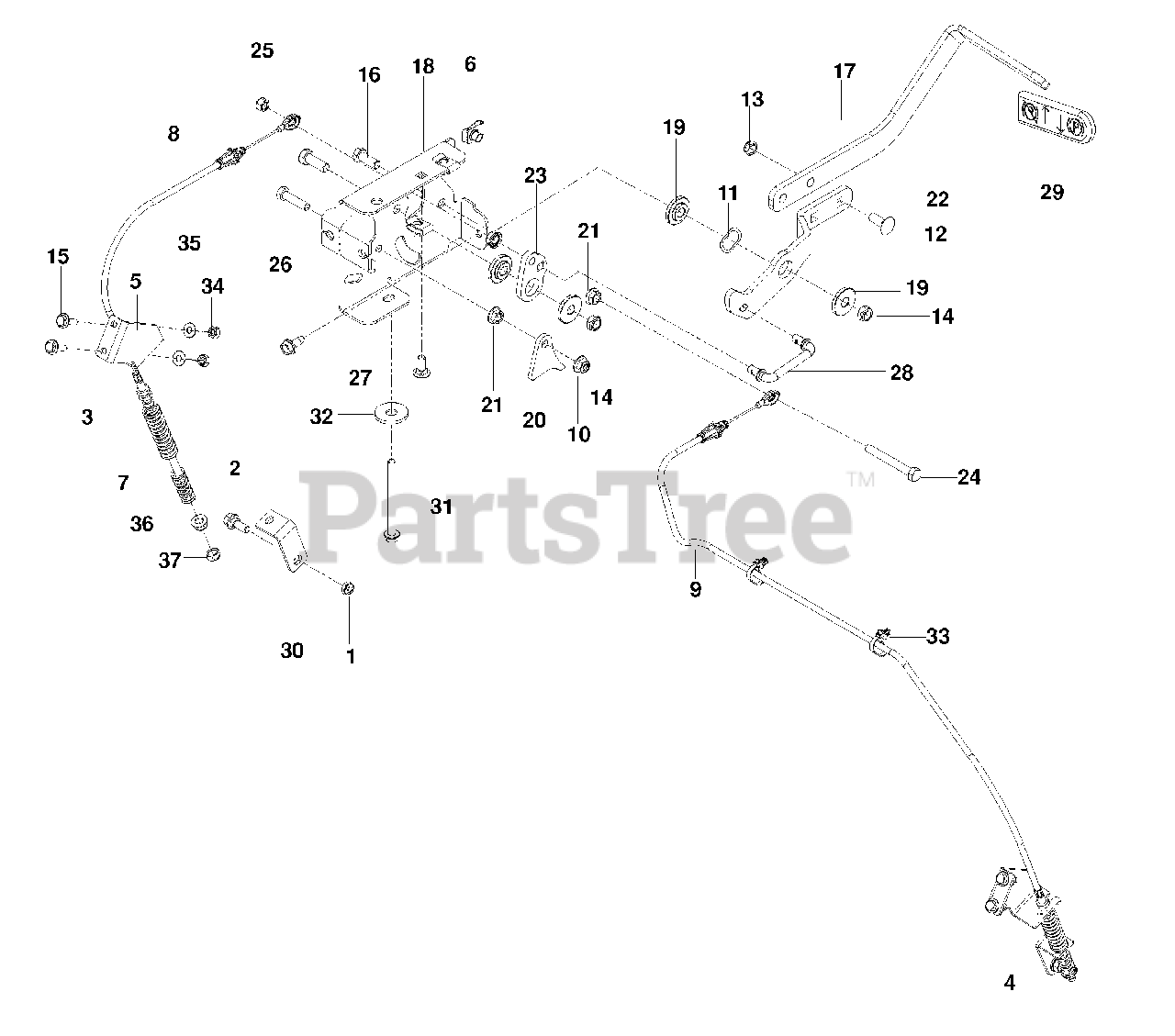

Parking Brake Parts Diagram

  • Title
1

Husqvarna 539115617

NUT 5/16 HEX NYLOC

$

$

Not available

2

Husqvarna 539110303

BOLT 5/16 SHOLDER

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 575230201

SPRING, RETURN

$6.99

$

In Stock, only 2 left!

0

4

Husqvarna 575229602

BRACKET, RT
(Superseded to 593279202)

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 575229702

BRACKET, LT
(Superseded to 593279902)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539104763

RETAINER, U TYPE 5/16-18

$6.49

$

In Stock, Qty 12

0

7

Husqvarna 575230301

SPRING, ENGAGEMENT

$6.49

$

In Stock, only 1 left!

0

8

Husqvarna 539132173

CABLE, BRAKE, SHORT

$40.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539132174

CABLE, BRAKE, LONG
(Superseded to 582122001)

$22.99

$

In Stock, only 2 left!

0

10

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 539133007

WASHER .825 WAVE

$4.99

$

In Stock, only 3 left!

0

12

Husqvarna 539990645

BOLT, RD HD 3/8-16 x 1

$

$

Not available

13

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

14

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

15

Husqvarna 539990643

HCS 1/4-20 x 7/8

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990563

BOLT, HEX 3/8-16 x 1

$1.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539132151

ARM, BRAKE
(Superseded to 593564002)

$9.49

$

In Stock, only 1 left!

0

18

Husqvarna 539132158

MOUNT, BRAKE

$66.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539132161

BUSHING, BRAKE

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 539132154

ACTUATOR, SWITCH
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

21

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539132423

LEVER, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

23

Husqvarna 539132153

BELLCRANK, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

24

Husqvarna 539108396

BOLT, HEX 5/16-18 x 2 1/2 TPBLT

$

$

Not available

25

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990209

BOLT, HEX 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990316

BOLT, RD HD 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539132424

LINKAGE, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

29

Husqvarna 539105036

GRIP, BRAKE HANDLE

$6.49

$

In Stock, only 2 left!

0

30

Husqvarna 575229802

BRACKET, BRAKE

$34.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539131780

HHFS 5/16-18 x 3 3/4

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539109554

WASHER 1/2 FLAT

$

$

Not available

33

Husqvarna 505280001

TIE, w/ CLIP

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

35

Husqvarna 539990055

WASHER 1/4 FLAT SAE

$3.99

$

In Stock, Qty 19

0

36

Husqvarna 539990585

NUT 5/16-18, WHIZLK

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539107897

NUT 5/16-18, JAM

$3.99

$

Usually ships in 3-10 days

0
