MZ 6128 (966502301) - Husqvarna 61" Zero-Turn Mower (2010-02) Engine Plate Parts Diagram

61" Zero-Turn Mower

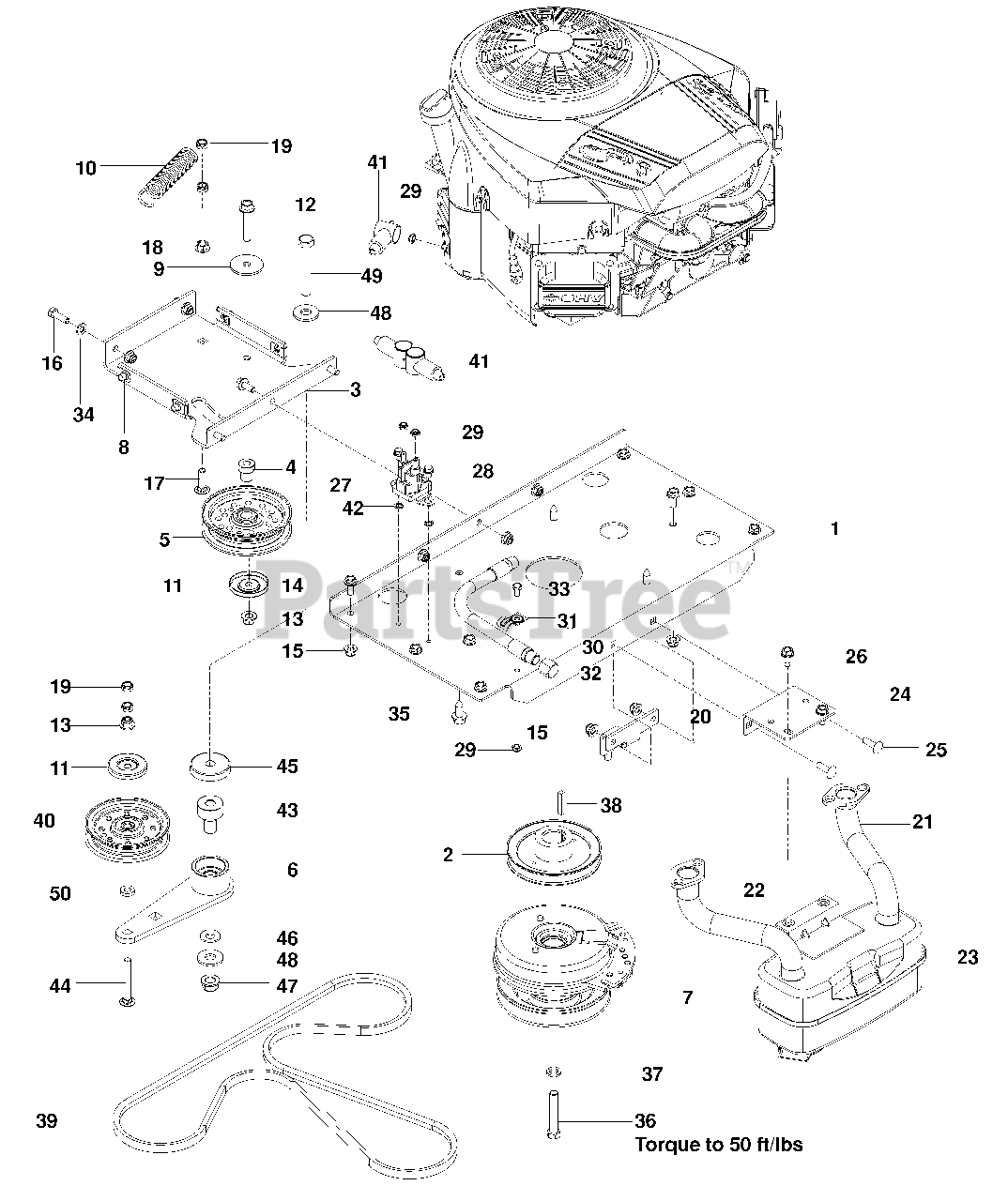

Engine Plate Parts Diagram

  • Title
1

Husqvarna 575608801

PLATE, ENGINE w/ DECAL

$265.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574811001

PULLEY, V 1 1/8 BORE

$53.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574846402

PLATE, IDLER SUPPORT

$91.99

$

In Stock, only 2 left!

0

4

Husqvarna 525435601

PIVOT, IDLER

$8.99

$

In Stock, Qty 5

0

5

Husqvarna 539976688

PULLEY, IDLER

$

$

Not available

6

Husqvarna 510041603

ARM, IDLER w/ BEARINGS

$56.99

$

Usually ships in 3-10 days

0

7

Husqvarna 574607001

CLUTCH, 200 FT-LB

$484.99

$

In Stock, only 1 left!

0

8

Husqvarna 539104763

RETAINER, U TYPE 5/16-18

$6.49

$

In Stock, Qty 12

0

9

Husqvarna 539111897

WASHER, SPECIAL

$

$

Not available

10

Husqvarna 510254401

SPRING, PUMP

$

$

Not available

11

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

12

Husqvarna 525866201

HHFS 3/8-16 x 2

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

14

Husqvarna 525464701

HHFS 5/16-18 x 3/4

$3.99

$

In Stock, only 1 left!

0

15

Husqvarna 539112899

NUT 5/16-18 HEX FLG NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539100413

RHSNB 3/8-16 x 1 1/4

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

20

Husqvarna 575017302

STOP, CLUTCH
(Superseded to 575017305)

$14.99

$

In Stock, only 2 left!

0

21

Husqvarna 532159955

EXHAUST TUBE, RT
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

22

Husqvarna 532160589

EXHAUST TUBE, LT
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

23

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 3 left!

0

24

Husqvarna 575229902

BRKT, MUFFLER, BLK

$34.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539107271

RHSSNB 5/16-18 x 1
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

26

Husqvarna 539107475

BOLT 5/16-18 x 3/4 THD FRM

$6.49

$

In Stock, only 4 left!

0

27

$26.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990302

SCREW 1/4-20 x 8 THD FRM

$

$

Not available

29

Husqvarna 539108120

NUT 1/4-20 HEX THIN NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

30

Husqvarna 539101362

HOSE-DRAIN

$47.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, only 1 left!

0

32

$7.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539990071

HCS 1/4-20 x 2

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

35

Husqvarna 532120616

HHFS 3/8-16 x 1 THD FRM
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

36

Husqvarna 539991120

HCS 7/16-20 x 21/2

$6.99

$

In Stock, Qty 8

0

37

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available

38

Husqvarna 539912757

KEY 1/4 SQ x 1 1/4

$4.99

$

Usually ships in 3-10 days

0

$39.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539107620

PULLEY, IDLER SECONDARY
(Superseded to 532175820)

$

$

Not available

41

$4.99

$

In Stock, only 2 left!

0

42

Husqvarna 539990053

WASHER 1/4 INT TOOTH LK

$3.99

$

In Stock, only 3 left!

0

43

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

44

Husqvarna 539130235

RHSNB 3/8-16 x 23/4

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

46

Husqvarna 539115528

WASHER 1/2" BELLEVILLE

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 521991101

NUT 1/2-13 HEX FLG NYLOC
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

48

Husqvarna 539109554

WASHER 1/2 FLAT ZD

$

$

Not available

49

Husqvarna 539103433

HCS 1/2-13 x 3 1/4

$6.99

$

In Stock, only 4 left!

0

50

Husqvarna 539109562

WASHER 3/8 x 3/4

$4.99

$

In Stock, Qty 16

0

Husqvarna 539102757

CABLE, POSITIVE

Note: (NOT SHOWN)

$15.99

$

Usually ships in 3-10 days

0

Husqvarna 539107516

KOHLER CV490S PIGTAIL

Note: (NOT SHOWN)

$

$

Not available

Husqvarna 575262002

HEAT SHIELD

Note: (NOT SHOWN) (Optional)

$66.99

$

Usually ships in 3-10 days

0
