MZ 6128 (966502301) - Husqvarna 61" Zero-Turn Mower (2010-02) Electrial Parts Diagram

61" Zero-Turn Mower

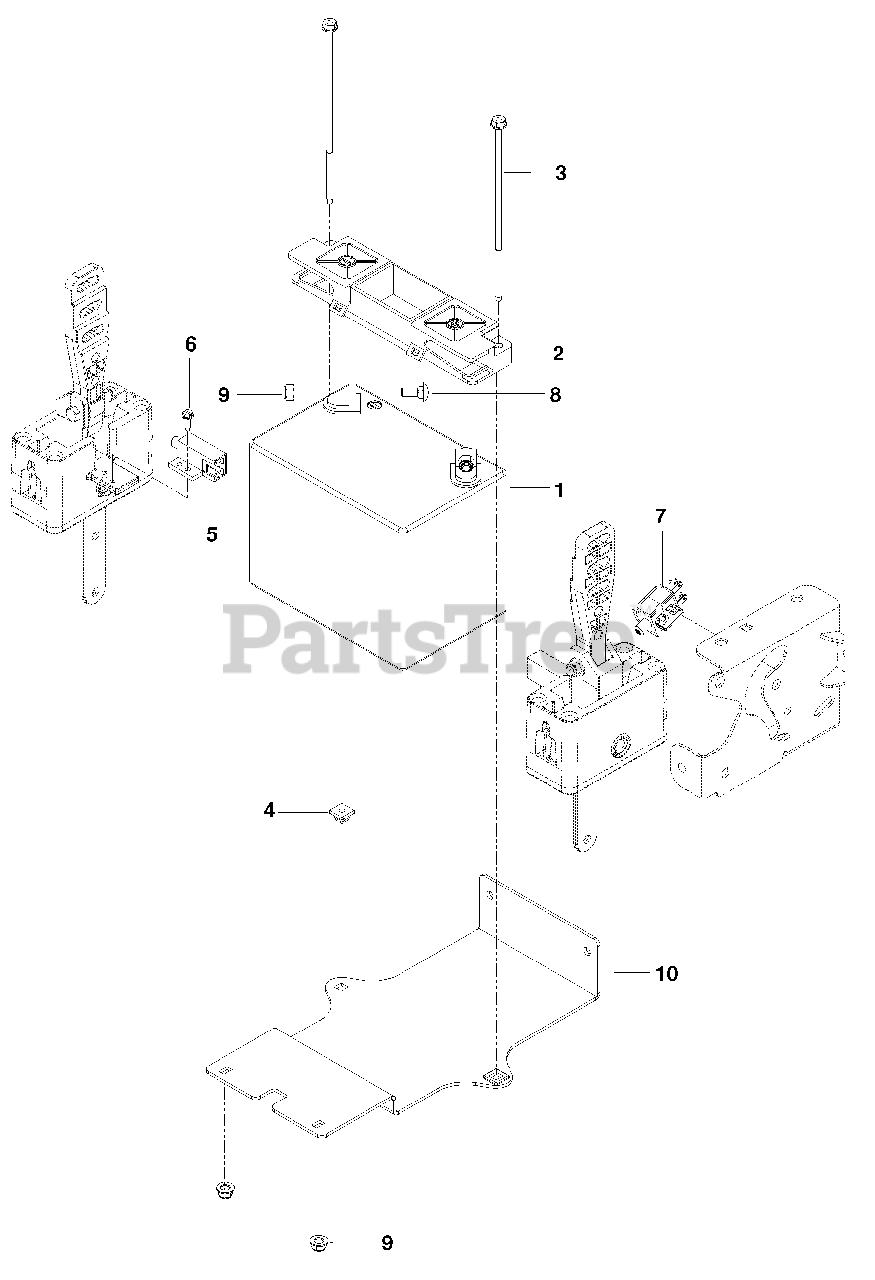

Electrial Parts Diagram

  • Title

1

Husqvarna 539102436

BATTERY
(Superseded to 579411601)

$

$

Not available

2

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

3

Husqvarna 539107632

BOLT, 1/4 x 7 1/2

$

$

Not available

4

Husqvarna 539107629

NUT 1/4 PUSH, NYLON

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539991034

SCREW #10-24 x 5/8 WSH HD

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539113792

SWITCH, BRAKE

$17.99

$

In Stock, Qty 12

0

8

Husqvarna 539990316

BOLT, 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

10

Husqvarna 575017202

PLATE, BATTERY

$60.99

$

Usually ships in 3-10 days

0

Husqvarna 539104974

POSITIVE CABLE

Note: (NOT SHOWN)

$

$

Not available

Husqvarna 539107645

NEGATIVE CABLE

Note: (NOT SHOWN)

$40.99

$

Usually ships in 3-10 days

0

Husqvarna 575320901

MAIN HARNESS

Note: (NOT SHOWN)

$206.99

$

In Stock, only 1 left!

0
