MZ 6128 (966502301) - Husqvarna 61" Zero-Turn Mower (2009-10) Frame Parts Diagram

61" Zero-Turn Mower

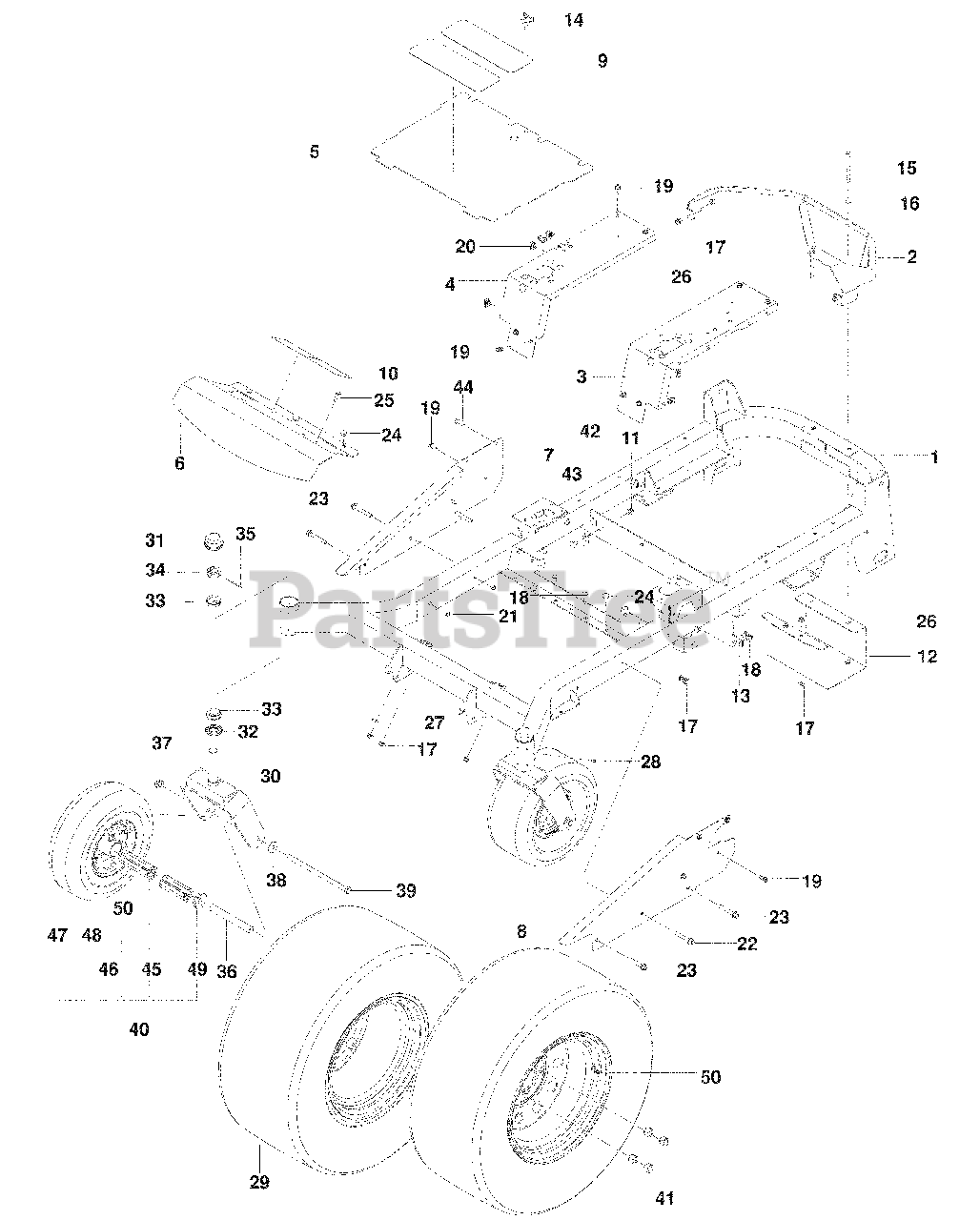

Frame Parts Diagram

  • Title

1

Husqvarna 575608701

FRAME w/ SAFETY DECALS

$

$

Not available

2

Husqvarna 575348402

GUARD, REAR

$250.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539131589

PANEL, LT

$

$

Not available

4

Husqvarna 575223802

PANEL, RT

$

$

Not available

5

Husqvarna 539132744

PLATE, FLOOR w/ DECALS

$241.99

$

In Stock, only 1 left!

0

6

Husqvarna 539132380

PLATE, FOOTREST

$113.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539131579

SIDE, RT

$39.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539131577

SIDE, LT

$68.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539977778

PAD, ABRASIVE LG

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539121322

PAD, ABRASIVE SM

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

12

Husqvarna 575230402

SHIELD, MUFFLER

$91.99

$

In Stock, only 1 left!

0

13

Husqvarna 505256401

STOP, DECK

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539104411

KNOB w/ STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539102335

HCS 5/16-18 x 4

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

18

Husqvarna 539990316

BOLT, RD HD 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539107475

BOLT 5/16-18 x ¾ THD FRM

$6.49

$

In Stock, only 4 left!

0

20

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 12

0

21

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

22

Husqvarna 539131781

SCREW, HX FLG 3/8-16 x 2¾

$5.99

$

In Stock, only 2 left!

0

23

Husqvarna 539133006

SCREW, HX FLG 3/8-16 x 2½

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

25

Husqvarna 539990208

BOLT, RD HD 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 525464701

HHFS 5/16-18 x ¾

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna 539990250

WASHER

$1.99

$

In Stock, only 2 left!

0

28

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539108881

WHEEL ASSY, REAR
(Superseded to 576356701)

$

$

Not available

30

Husqvarna 575329202

YOKE, CASTER
(Superseded to 586921902)

$62.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539102851

SEAL

$7.99

$

In Stock, only 4 left!

0

33

Husqvarna 539102543

BEARING

$40.99

$

In Stock, only 1 left!

0

34

Husqvarna 539102852

SLOTTED JAM NUT 1"-14

$

$

Not available

35

Husqvarna 539102889

COTTER PIN 1/8 x 2
(Superseded to 539124704)

$

$

Not available

36

Husqvarna 575334901

SPACER, PIVOT

$24.99

$

In Stock, Qty 8

0

37

Husqvarna 521991101

NUT ½-13 HEX FLG NYLOC
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

38

Husqvarna 539109554

WASHER ½ FLAT ZD

$

$

Not available

39

Husqvarna 539105517

HCS ½-13 x 9½

$

$

Not available

40

Husqvarna 575348701

TIRE ASSM
(Superseded to 581199501)

$194.99

$

In Stock, Qty 5

0

41

Husqvarna 539101173

NUT, LUG

$

$

Not available

42

Husqvarna 575245202

BRACKET, DAMPENER

$6.99

$

In Stock, Qty 5

0

43

Husqvarna 539109117

BOLT, RD HD 3/8-16 x ¾

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 525544001

HHFS 5/16-18 x 1¼ TPBLT

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539105307

CAGE BEARING 3¼

$11.99

$

In Stock, only 2 left!

0

46

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

47

Husqvarna 575622201

TIRE, CASTER

$

$

Not available

48

Husqvarna 575622101

RIM, CASTER TIRE

$84.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539102484

BEARING, FLANGE

$5.99

$

In Stock, only 1 left!

0

50

Husqvarna 539912234

VALVE

$6.49

$

In Stock, Qty 20+

0
