MZ 6128 (966502301-00) - Husqvarna 61" Zero-Turn Mower (2010-02) FRAME Parts Diagram

61" Zero-Turn Mower

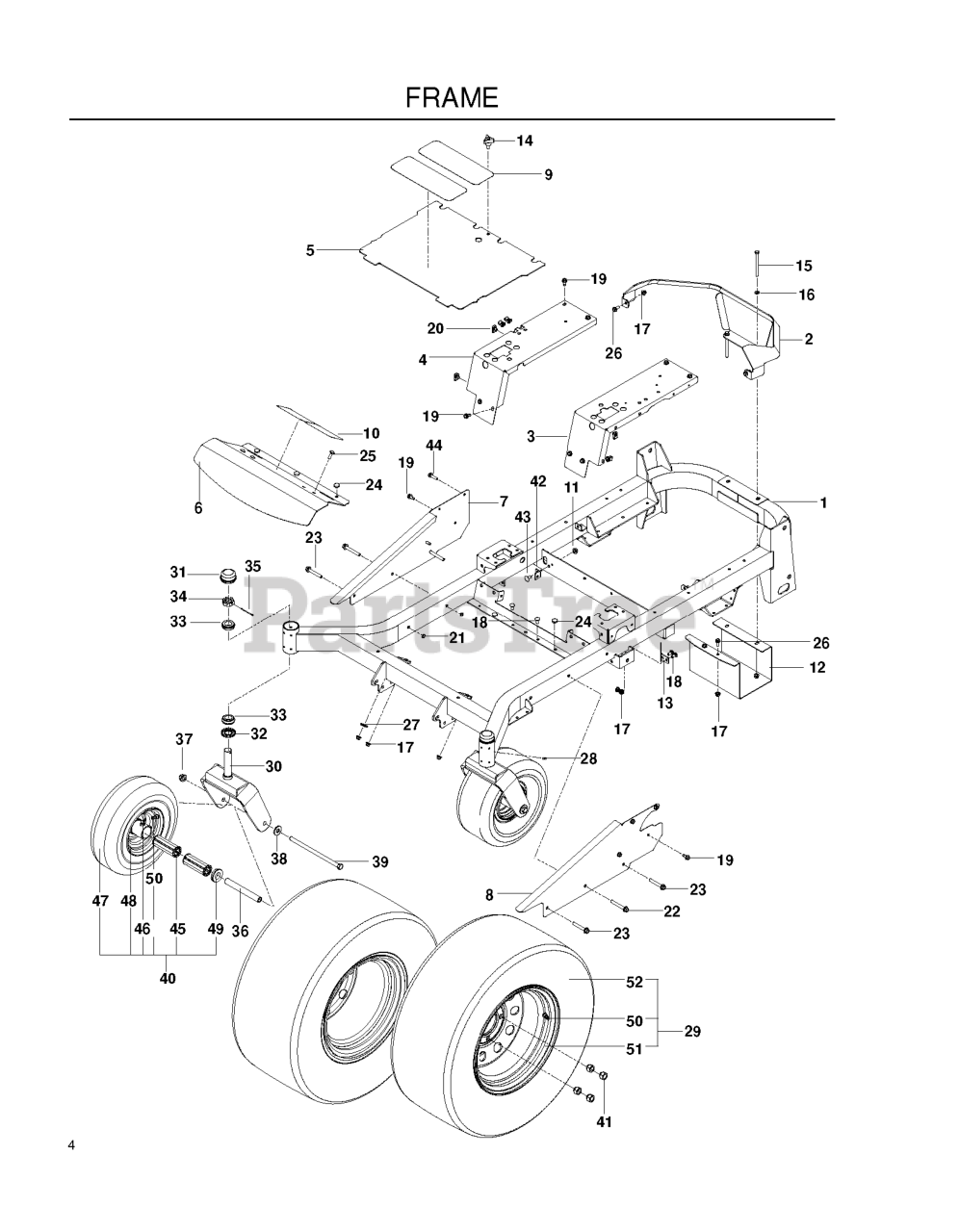

FRAME Parts Diagram

  • Title

43

Husqvarna 539109117

RHSNB 3/8-16 X 3/4 GR 5 BLK ZN

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

33

Husqvarna 539102543

TAPERED ROLLER BRG

$40.99

$

In Stock, only 1 left!

0

36

Husqvarna 575334901

SPACER, PIVOT

$24.99

$

In Stock, Qty 8

0

11

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

1

Husqvarna 575608701

FRAME W/DECALS

$

$

Not available

37

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

4

Husqvarna 575223802

PANEL, FILLER RH ZT, ORG

Note: RT

$

$

Not available

19

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

21

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

5

Husqvarna 539132744

PLATE, FLOOR W/DECALS

$241.99

$

In Stock, only 1 left!

0

48

Husqvarna 575622101

WHEEL.6X4.50.CASTER.SILVER

$84.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

26

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

42

Husqvarna 575245202

BRACKET.DAMPENER.BLACK

$6.99

$

In Stock, Qty 5

0

20

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

51

Husqvarna 539105487

12"RIM 2.5" NEG OFFSET 8.5" W

$182.99

$

In Stock, only 1 left!

0

16

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 575329202

YOKE.CASTER.ORANGE
(Superseded to 586921902)

$62.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

50

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

23

Husqvarna 539133006

HHFS 3/8-16 X 2.5 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

13

Husqvarna 505256401

STOP, DECK, EZ+

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

14

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539102851

SEAL

$7.99

$

In Stock, only 4 left!

0

10

Husqvarna 539121322

FOOT PAD

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

38

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

27

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

40

Husqvarna 575348701

TIRE.ASSEM.CASTER.13X6.5-6.SIL
(Superseded to 581199501)

$194.99

$

In Stock, Qty 5

0

52

Husqvarna 539107431

TIRE.TURF.MASTER.23X10.5-12

$423.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539105307

ROLLER BEARING-CAGED 3 1/4'

$11.99

$

In Stock, only 2 left!

0

15

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575348402

GUARD, REAR MZ, GRAY

$250.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539102852

NUT 1"C HEX SLOTTED

$

$

Not available

29

Husqvarna 539108881

RP WHEEL.ASM.23X10.5-12.TURFMA
(Superseded to 576356701)

$

$

Not available

6

Husqvarna 539132380

PLATE, FOOTREST

$113.99

$

Usually ships in 3-10 days

0

47

Husqvarna 575622201

TIRE.13X6.50-6.4.PLY

$

$

Not available

7

Husqvarna 539131579

SIDE.RT.ORANGE

Note: RT

$39.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539131589

PANEL, FILLER, LT

Note: LT

$

$

Not available

49

Husqvarna 539102484

BEARING RETAINER

$5.99

$

In Stock, only 1 left!

0

12

Husqvarna 575230402

SHIELD.MUFFLER.BLACK

$91.99

$

In Stock, only 1 left!

0

8

Husqvarna 539131577

SIDE.LT.ORANGE

Note: LT

$68.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available
