MZ 6125 (968999718) - Husqvarna 61" Zero-Turn Mower (2008-03) ENGINE PLATE Parts Diagram

61" Zero-Turn Mower

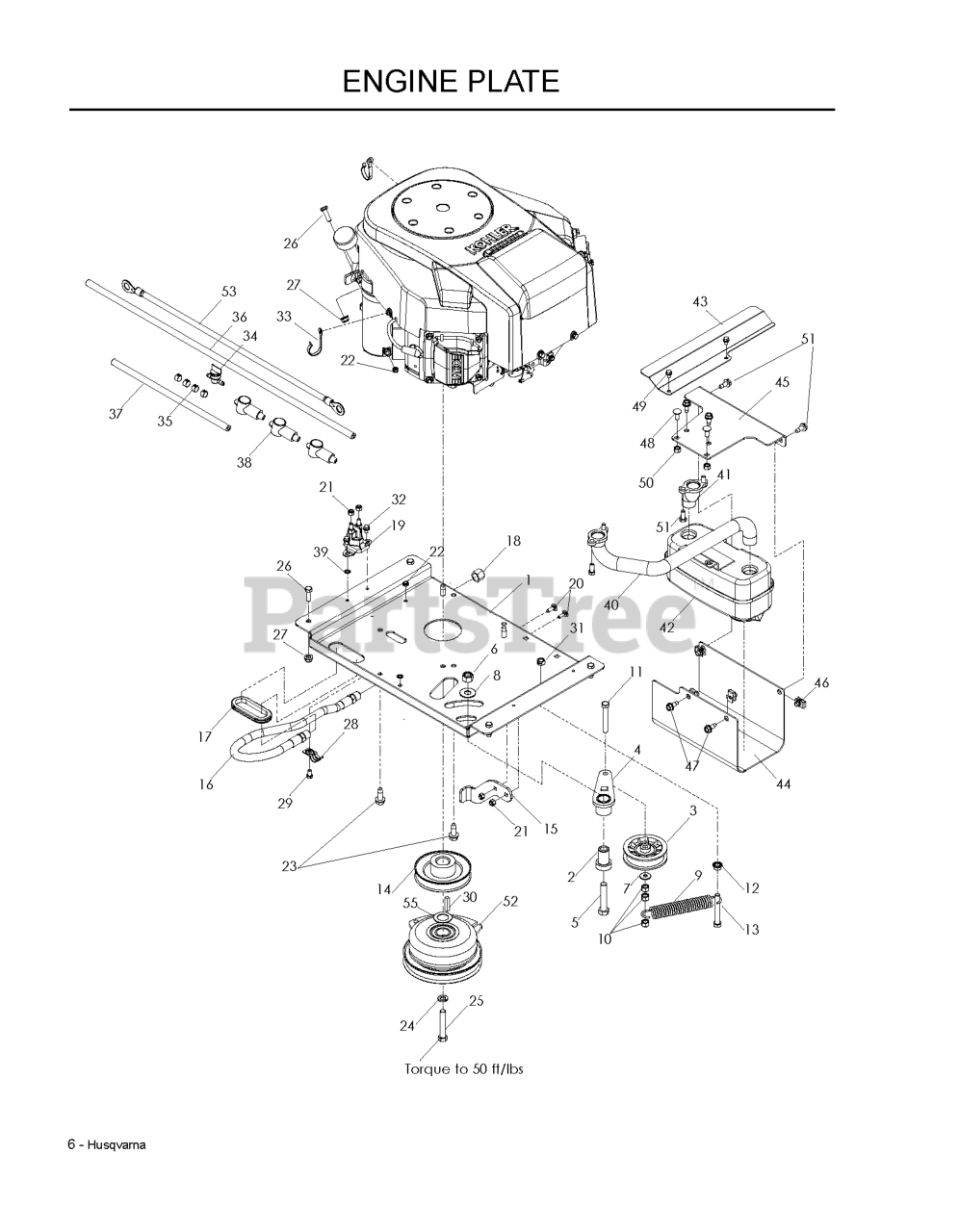

ENGINE PLATE Parts Diagram

  • Title
21

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

$14.99

$

Usually ships in 3-10 days

0

Husqvarna 539107516

KOHLER PIGTAIL-CV490S

Note: NOT SHOWN

$

$

Not available

36

Husqvarna 539105382

FUEL LINE 30"

$13.99

$

In Stock, only 2 left!

0

7

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539131729

DRAIN, OIL

$24.99

$

Usually ships in 3-10 days

0

18

$7.49

$

Usually ships in 3-10 days

0

50

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

17

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

13

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

46

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

35

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

34

Husqvarna 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

12

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539131728

TIE DOWN, CLUTCH

$

$

Not available

52

Husqvarna 539132733

CLUTCH, 200 FT/LB

$485.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539131758

SHIELD, HEAT

$21.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539131740

MANIFOLD, RR

$

$

Not available

5

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990302

HWST 1/4C X 3/8

$

$

Not available

47

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

11

Husqvarna 539110122

HCS 3/8-16 X 2-1/2 TPBLT

$3.99

$

In Stock, only 1 left!

0

48

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

$17.99

$

In Stock, Qty 10

0

29

Husqvarna 539990071

HCS 1/4-20.

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 539131726

PLATE, ENGINE

$84.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

$3.99

$

In Stock, only 1 left!

0

38

$4.99

$

In Stock, only 2 left!

0

19

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539112092

RP.IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, Qty 6

0

$

$

Not available

44

Husqvarna 539131769

GUARD, MUFFLER

$51.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539132412

CABLE, POSITIVE

$9.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

39

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

2

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539108212

FUEL LINE 13"

$2.49

$

In Stock, Qty 5

0

51

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539131739

MANIFOLD, FT

$46.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

6

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

3

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990302

HWST 1/4C X 3/8

$

$

Not available

45

Husqvarna 539131771

MOUNT MUFFLER BLACK

$66.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0
