MZ 6125 (968999718) - Husqvarna 61" Zero-Turn Mower (2007-11) 61" Deck Parts Diagram

61" Zero-Turn Mower

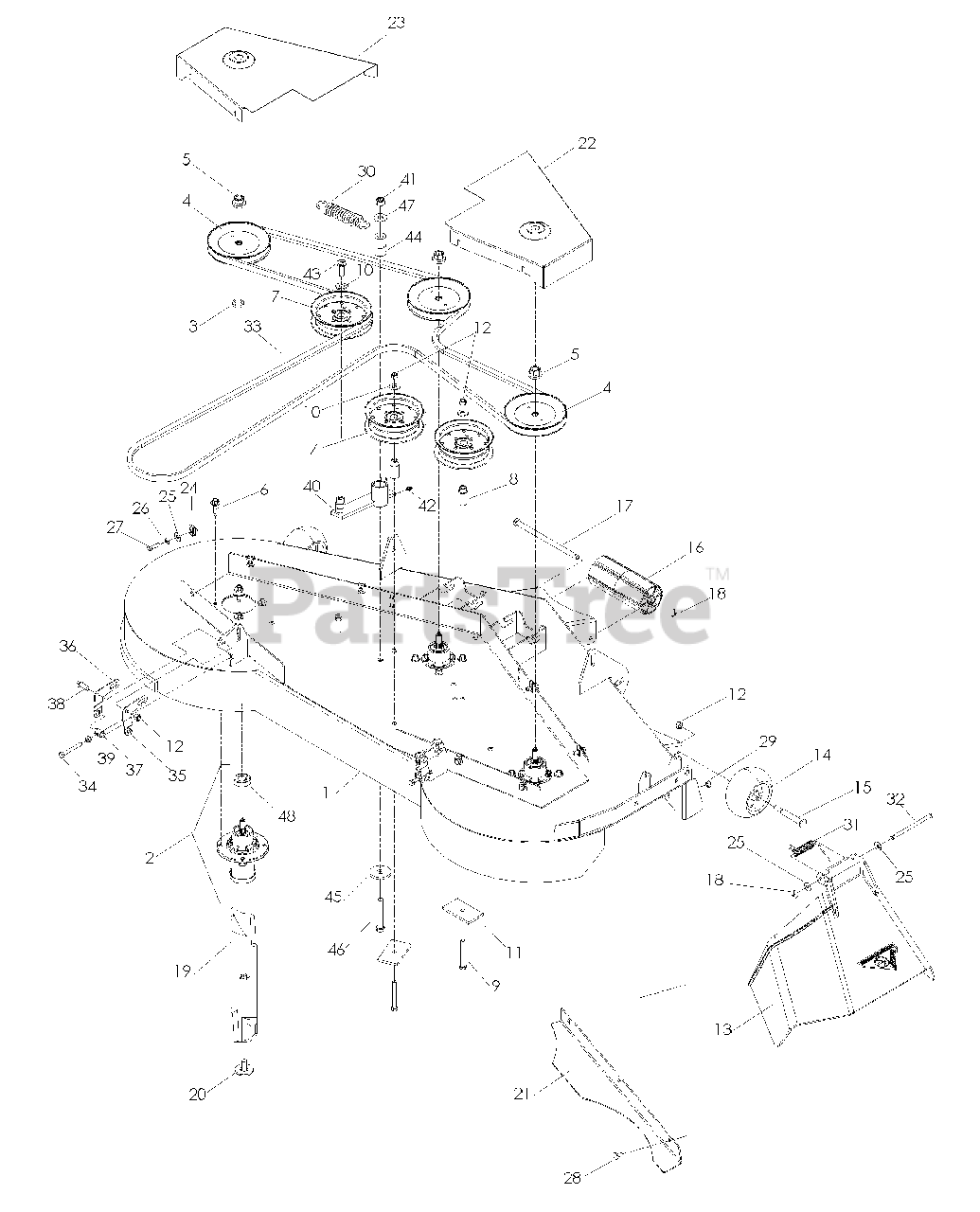

61" Deck Parts Diagram

  • Title
1

Husqvarna 539132747

DECK W/DECALS 61"

$

$

Not available

2

Husqvarna 539112170

HOUSING ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

$26.99

$

In Stock, Qty 5

0

5

Husqvarna 539107590

NUT 9/16 TOP CENTER LOCK
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

6

Husqvarna 539107630

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

9

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

10

Husqvarna 539990517

WASHER, 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539103303

PAD, PAINTED
(Superseded to 539106504)

$

$

Not available

12

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539110734

DISCHARGE CHUTE, 61"

$53.99

$

In Stock, only 2 left!

0

14

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

15

Husqvarna 539107608

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

16

Husqvarna 532176066

ROLLER, NOSE, 48"

$13.99

$

In Stock, Qty 20+

0

17

Husqvarna 539107613

ROD, ROLLER, NOSE
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

18

Husqvarna 539990365

PIN, COTTER 1/8 x 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

19

Husqvarna 539113312

BLADE, 21"

$30.99

$

In Stock, Qty 12

0

20

Husqvarna 539107522

BOLT, 7/16, BLADE
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539113317

CONFINEMENT PLATE

$66.99

$

In Stock, only 1 left!

0

22

Husqvarna 539113319

BELT SHIELD, RH

$133.99

$

In Stock, only 1 left!

0

23

Husqvarna 539113322

BELT SHIELD, LH
(Superseded to 584385601)

$109.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 9

0

25

Husqvarna 539990692

WASHER, 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539990187

WASHER 5/16 SLW
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

27

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, Qty 6

0

31

Husqvarna 539110735

SPRING, TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 4 left!

0

32

Husqvarna 539110736

PIN, CLEVIS 5/16

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539132002

BELT, DECK

$

$

Not available

34

Husqvarna 539108396

HCS 5/16-18 x 2 1/2 TPBLT

$

$

Not available

35

Husqvarna 539131857

PITCH, ADJUST, RT

$48.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539131858

PITCH, ADJUST, LT

$48.99

$

In Stock, only 2 left!

0

37

Husqvarna 539131859

TRUNION, PITCH

$

$

Not available

38

Husqvarna 539990563

HCS 3/8-16 x 1

$1.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990196

NUT 5/16-18 HEX

$1.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539112198

IDLER ARM WELDMT

$121.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539101331

NUT 1/2 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 539990582

HCS 3/8-16 x 1 WHIZLK

$

$

Not available

44

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 3 left!

0

45

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

46

Husqvarna 539103433

HCS 1/4-13 x 3 1/4

$6.99

$

In Stock, only 4 left!

0

47

Husqvarna 539990550

WASHER, 1/2 STD FLT

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539112060

BALL BEARING
(Superseded to 532187344)

$

$

Not available
