MZ 61 (967277503-00) - Husqvarna 61" Zero-Turn Mower (2017-11) ENGINE PLATE Parts Diagram

61" Zero-Turn Mower

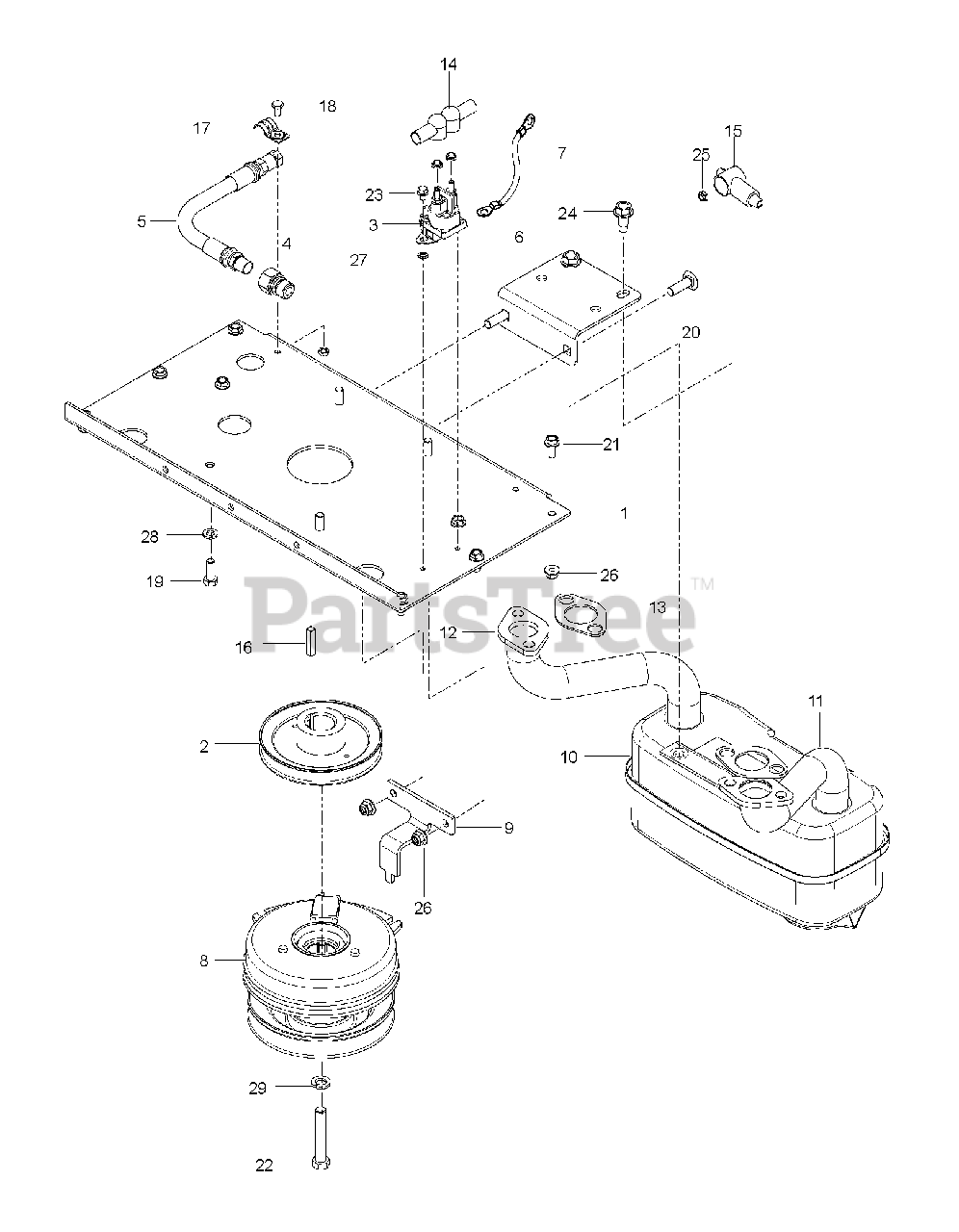

ENGINE PLATE Parts Diagram

  • Title

1

Husqvarna 586651402

PLATE.PNT.ENGINE.E-DIP

$56.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574811001

PULLEY, V, 1.125 BORE

$62.99

$

In Stock, Qty 10

0

3

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$28.99

$

In Stock, Qty 20+

0

4

Husqvarna 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

$

$

Not available

5

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$37.99

$

Usually ships in 3-10 days

0

6

Husqvarna 575229902

BRKT, MUFFLER, BLK

$45.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

8

Husqvarna 574607001

CLUTCH 200 FT LB

$569.99

$

In Stock, only 1 left!

0

9

Husqvarna 575017302

STOP, CLUTCH, BLACK
(Superseded to 575017305)

$20.99

$

In Stock, only 1 left!

0

10

Husqvarna 539131604

MUFFLER ASM TWIN

$51.99

$

In Stock, Qty 20+

0

11

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$37.99

$

Usually ships in 3-10 days

0

12

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

$37.99

$

In Stock, Qty 5

0

13

Husqvarna 586839701

GASKET.EXHAUST.KAWASAKI
(Superseded to 532178151)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, Qty 10

0

15

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 12

0

16

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

18

Husqvarna 539990071

HCS 1/4-20.

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

22

Husqvarna 581332802

CLUTCH BOLT7/16-20X2.5 GR596HR
(Superseded to 581332806)

$8.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990302

HWST 1/4C X 3/8

$

$

Not available

24

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available
