MZ 61 (967277501-01) - Husqvarna 61" Zero-Turn Mower (2016-12) ENGINE MOUNTING GUARDS MUFFLER Parts Diagram

61" Zero-Turn Mower

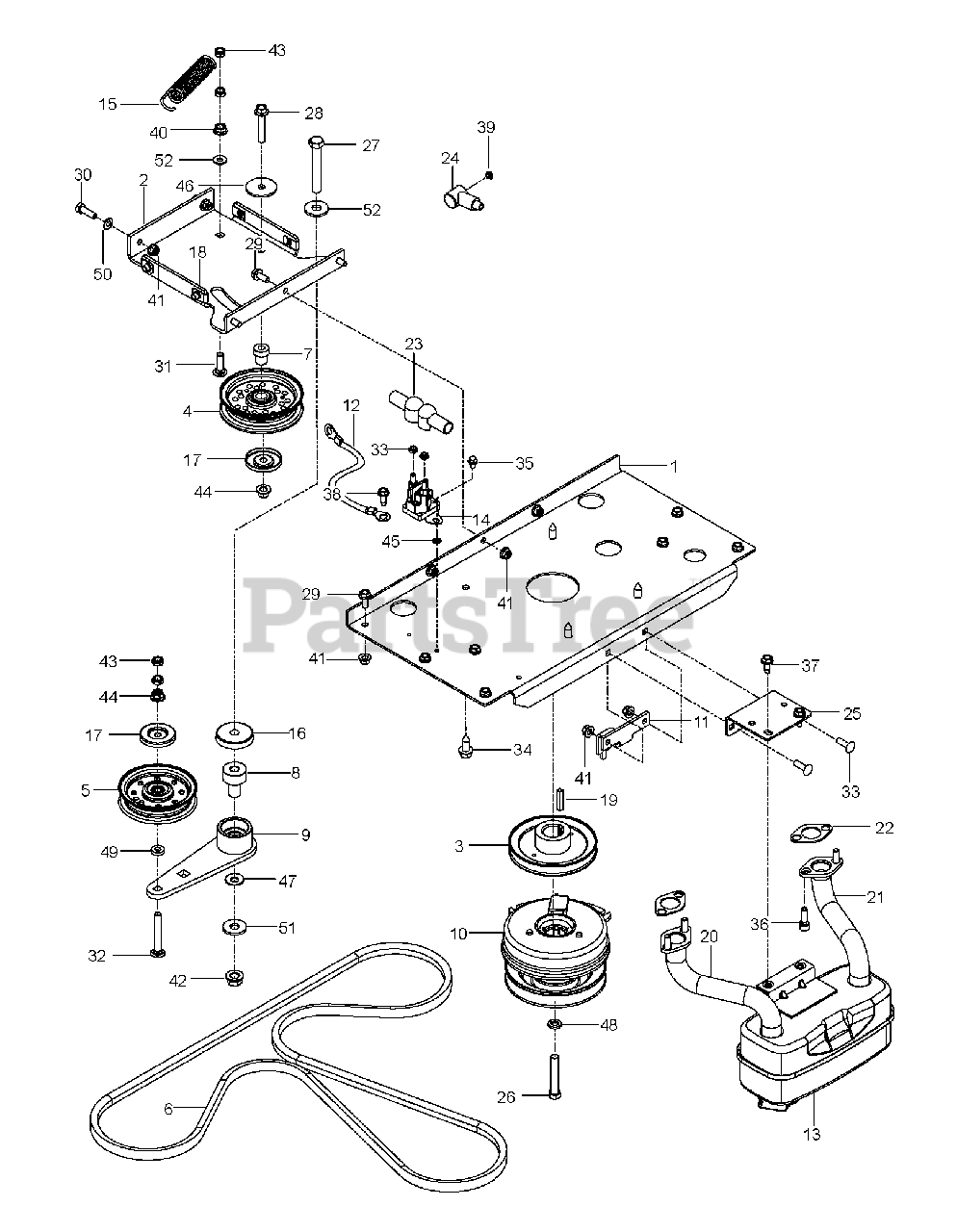

ENGINE MOUNTING GUARDS MUFFLER Parts Diagram

  • Title
1

Husqvarna 586651402

PLATE.PNT.ENGINE.E-DIP

$37.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574846402

PLATE, IDLER, BLK

$91.99

$

In Stock, only 2 left!

0

3

Husqvarna 574811001

PULLEY, V, 1.125 BORE

$53.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

5

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

$

$

Not available

6

Husqvarna 574870901

BELT, HYDRO, 3400

$39.99

$

Usually ships in 3-10 days

0

7

Husqvarna 525435601

PIVOT, IDLER

$8.99

$

In Stock, only 4 left!

0

8

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 510041603

ARM, IDLER, STEEL, W/BGS

$56.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574607001

CLUTCH 200 FT LB

$484.99

$

In Stock, only 1 left!

0

11

Husqvarna 575017302

STOP, CLUTCH, BLACK
(Superseded to 575017305)

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 2 left!

0

14

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 20+

0

15

Husqvarna 510254401

SPRING, PUMP

$

$

Not available

16

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

17

Husqvarna 510254501

DUST SHIELD

$

$

Not available

18

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

19

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

$44.99

$

In Stock, only 1 left!

0

21

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

$27.99

$

In Stock, only 1 left!

0

22

Husqvarna 586839601

GASKET.MUFFLER.B&S.REF #273485
(Superseded to 532165391)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

24

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

25

Husqvarna 575229902

BRKT, MUFFLER, BLK

$34.99

$

Usually ships in 3-10 days

0

26

Husqvarna 581332802

CLUTCH BOLT7/16-20X2.5 GR596HR
(Superseded to 581332806)

$8.99

$

In Stock, Qty 10

0

27

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

28

Husqvarna 874490632

HHFS 3/8-16 X 2.0 GD 5

$

$

Not available

29

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

30

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

32

Husqvarna 872140622

BOLT
(Superseded to 872110622)

$4.99

$

In Stock, Qty 9

0

33

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 19

0

35

Husqvarna 817490406

RP_SCREW.1/4-20X3/8
(Superseded to 817600406)

$6.49

$

In Stock, only 2 left!

0

36

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 817490512

SCREW
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

42

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

43

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

44

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

45

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

46

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

47

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

49

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 15

0

50

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 17

0

51

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

52

Husqvarna 819141614

WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0
