MZ 5424 SR (967003902-01) - Husqvarna 54" Zero-Turn Mower (2013-01) ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

54" Zero-Turn Mower

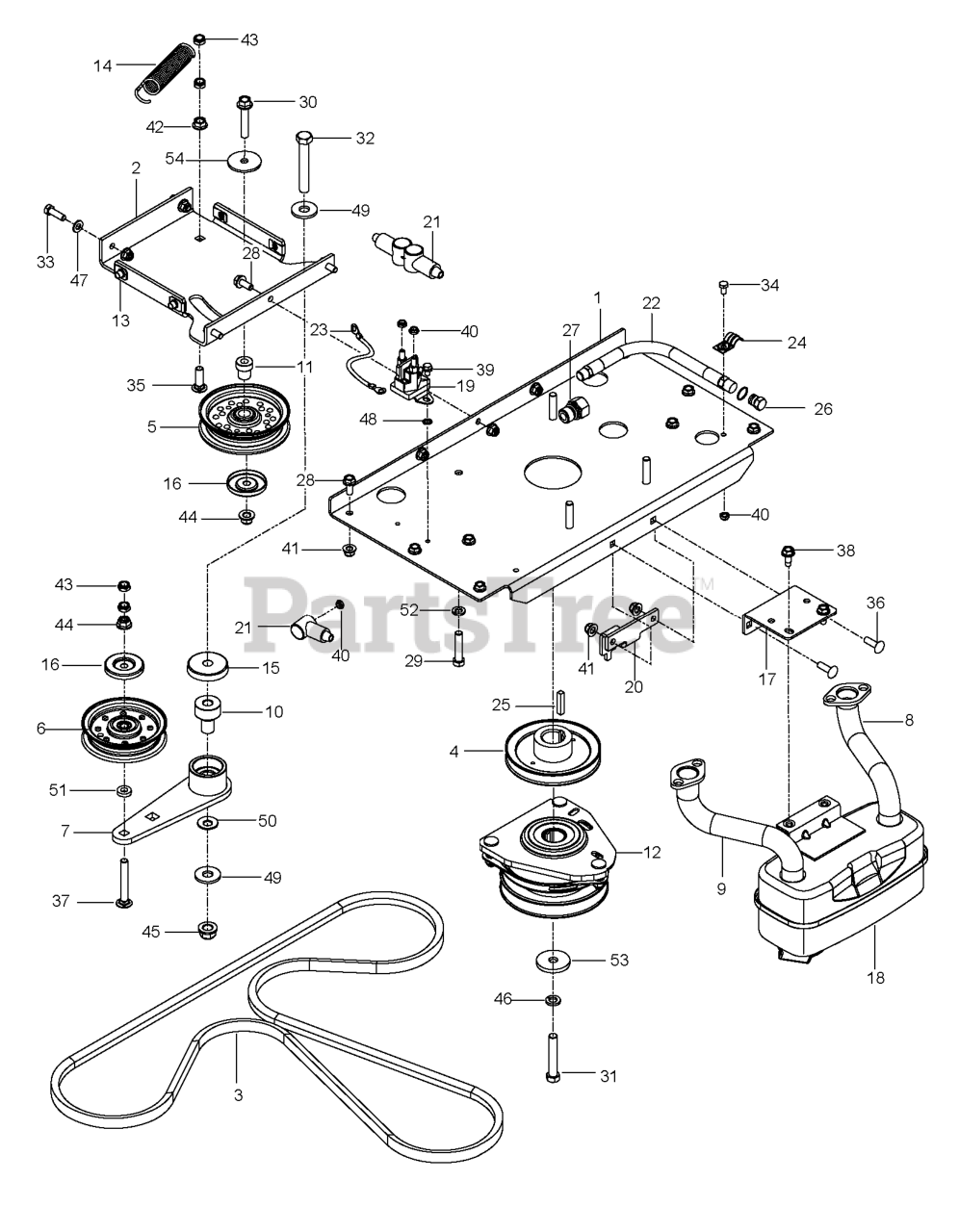

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

2

Husqvarna 574846402

PLATE, IDLER, BLK

$91.99

$

In Stock, only 2 left!

0

41

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

32

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

50

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574846302

PLATE, ENGINE, BLK
(Superseded to 575608801)

$265.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$31.99

$

In Stock, only 1 left!

0

54

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

3

Husqvarna 574870901

BELT, HYDRO, 3400

$39.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

45

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

44

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

20

Husqvarna 585813601

BRACKET.CLUTCH.STOP.PNTX431
(Superseded to 585813602)

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

$37.99

$

In Stock, only 1 left!

0

47

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

53

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

52

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 581332802

CLUTCH BOLT7/16-20X2.5 GR596HR
(Superseded to 581332806)

$8.99

$

Usually ships in 3-10 days

0

Husqvarna 532198316

PIGTAIL.MATNLK.OLD.HARN

$10.99

$

In Stock, only 1 left!

0

6

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.

$

$

Not available

21

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 510041603

ARM, IDLER, STEEL, W/BGS

Note: W/ BEARINGS

$56.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

38

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

29

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

Usually ships in 3-10 days

0

17

Husqvarna 575229902

BRKT, MUFFLER, BLK

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585813701

PULLEY.DRIVE.XMSN

$37.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 6

0

23

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

30

Husqvarna 874490632

HHFS 3/8-16 X 2.0 GD 5

$

$

Not available

34

Husqvarna 539990071

HCS 1/4-20.

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

12

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$341.99

$

Usually ships in 3-10 days

0

9

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$37.99

$

In Stock, only 1 left!

0

46

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

Husqvarna 575018301

PIGTAIL, KAWASAKI ZT

Note: NOT SHOWN

$20.99

$

Usually ships in 3-10 days

0

28

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

11

Husqvarna 525435601

PIVOT, IDLER

$8.99

$

In Stock, only 4 left!

0

15

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

51

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 15

0

14

Husqvarna 510254401

SPRING, PUMP

$

$

Not available

27

Husqvarna 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

$

$

Not available

26

Husqvarna 585807101

PLUG OIL DRAIN

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna 539990302

HWST 1/4C X 3/8

$

$

Not available

10

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

49

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

40

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

43

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

16

Husqvarna 510254501

DUST SHIELD

$

$

Not available

19

Husqvarna 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0
