MZ 5424 S (967003901-00) - Husqvarna 54" Zero-Turn Mower (2012-01) STEERING Parts Diagram

54" Zero-Turn Mower

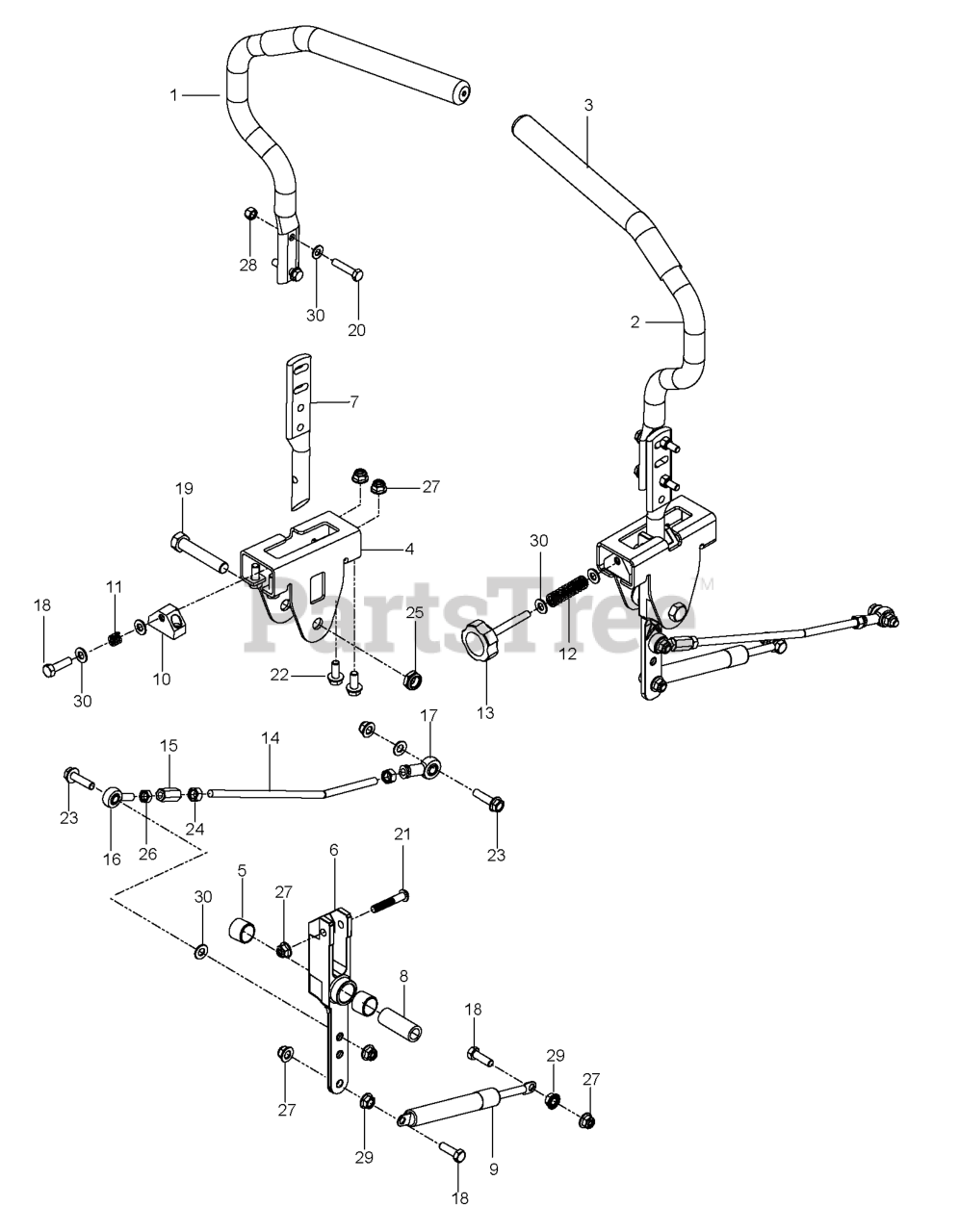

STEERING Parts Diagram

  • Title
23

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

5

Husqvarna 539438282

BEARING
(Superseded to 539131518)

$11.99

$

In Stock, Qty 7

0

26

Husqvarna 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539115729

RH ROD END
(Superseded to 579764601)

$9.49

$

Usually ships in 3-10 days

0

19

Husqvarna 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539132009

LEVER.DRIVE.W/GRIP.RIGHT

$80.99

$

In Stock, Qty 18

0

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 576850301

SPRING COMPRESSION 2.0

$6.49

$

In Stock, Qty 9

0

21

Husqvarna 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, only 2 left!

0

27

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

10

Husqvarna 581437501

BLOCK TRACKING CONTROL ZTR

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 584927201

SPACER.PIVOT.CONTROL

$5.99

$

In Stock, only 1 left!

0

22

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

20

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

14

Husqvarna 574811401

ROD, CONTROL

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 577251701

BRACKET, CONTROL
(Superseded to 586737202)

$26.99

$

In Stock, only 1 left!

0

9

$66.99

$

In Stock, only 4 left!

0

15

Husqvarna 539116689

ROD END COUPLER

$

$

Not available

7

Husqvarna 577420001

LEVER.HANDLE MOUNT

$

$

Not available

2

Husqvarna 539132010

LEVER.DRIVE.W/GRIP.LEFT

$80.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539130894

GRIP - DRIVE LEVER 12"

$9.99

$

In Stock, only 3 left!

0

24

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

6

Husqvarna 587187701

CONTROL.WELDMENT.RZ

$20.99

$

In Stock, only 1 left!

0

16

Husqvarna 588692502

ROD.END.MALE.LH.THREAD
(Superseded to 539116690)

$10.99

$

In Stock, only 1 left!

0

$

$

Not available
