MZ 5424 S (966698801) - Husqvarna 54" Zero-Turn Mower (2010-09) MOWER DECK / CUTTING DECK Parts Diagram

54" Zero-Turn Mower

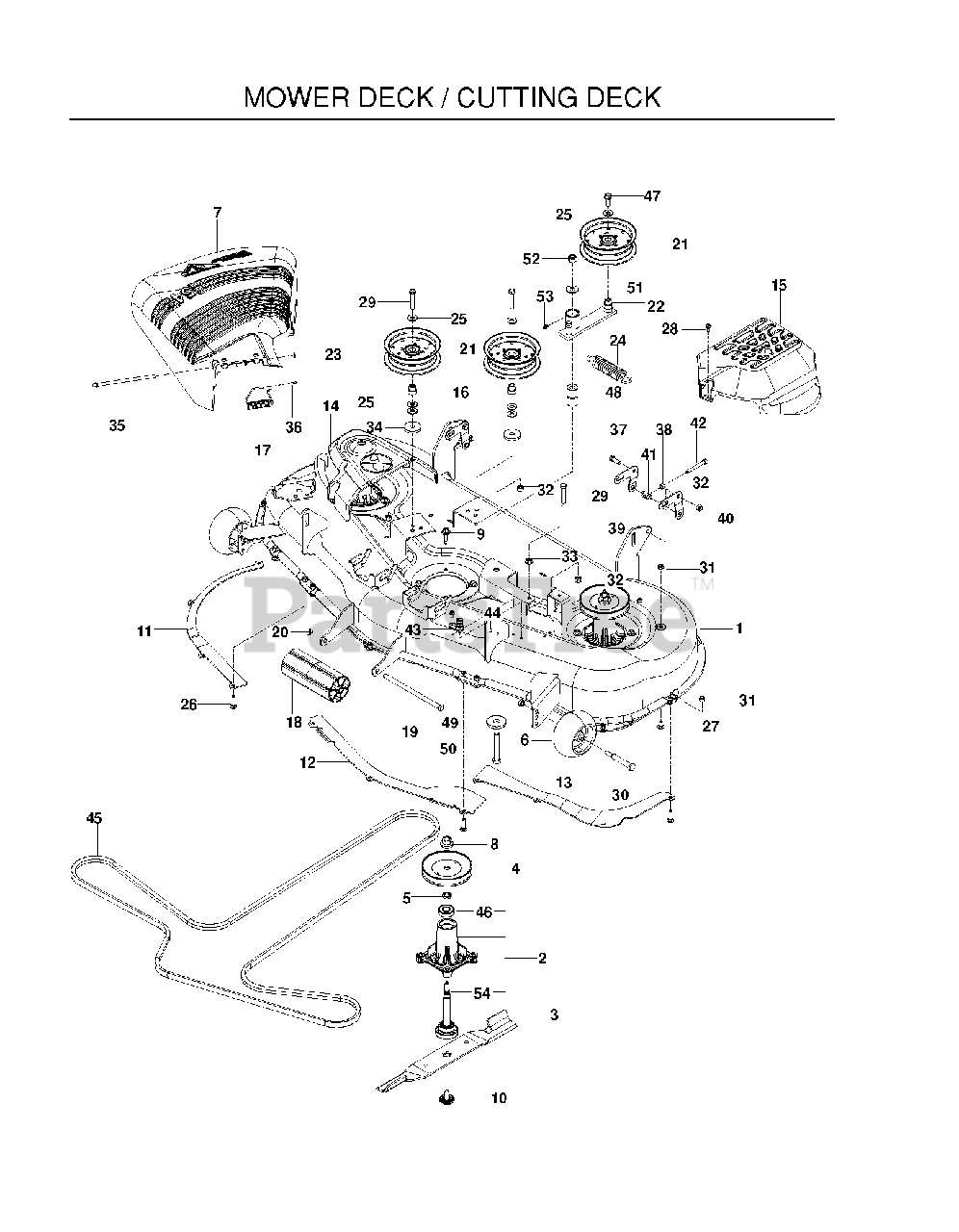

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 577200203

DECK.SVC W/DECALS.54.MZ.ORANGE

Note: w / SAFETY DECALS ORG

$683.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112057

MANDREL GREASABLE
(Superseded to 587820301)

$56.99

$

In Stock, Qty 20+

0

3

Husqvarna 532187256

BLADE.BAGGING.54"
(Superseded to 594892901)

$22.99

$

In Stock, Qty 20+

0

4

Husqvarna 539112171

PULLEY
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

5

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

7

Husqvarna 539112054

DEFLECTOR, 54"
(Superseded to 532187257)

$80.99

$

In Stock, Qty 11

0

8

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 19

0

9

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539112059

BAFFLE, RIGHT 54"
(Superseded to 532187342)

$12.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539112062

BAFFLE, CENTER, 54"
(Superseded to 532187607)

$

$

Not available

13

Husqvarna 539112060

BAFFLE LEFT 54
(Superseded to 532187344)

$

$

Not available

14

Husqvarna 532188187

COVER.MANDREL.RH.DECK.54"

$37.99

$

In Stock, only 1 left!

0

15

Husqvarna 532187297

COVER.MANDREL.LH.DECK.54"

$37.99

$

In Stock, only 1 left!

0

16

Husqvarna 539112076

IDLER BUSHING

$

$

Not available

17

Husqvarna 539107609

TORSION SPRING

$5.99

$

In Stock, Qty 20+

0

18

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

19

Husqvarna 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

In Stock, Qty 12

0

22

Husqvarna 539112198

IDLER ARM

$121.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

25

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

30

Husqvarna 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

31

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

35

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

36

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539131857

PITCH, ADJUST, RT

$48.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539131858

PITCH, ADJUST, LT

$48.99

$

In Stock, only 2 left!

0

41

Husqvarna 539131859

TRUNION, PITCH

$

$

Not available

42

Husqvarna 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

43

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 14

0

44

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 7

0

45

Husqvarna 577503601

BELT.DECK.EL=152.9

$133.99

$

In Stock, only 1 left!

0

46

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

47

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

48

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

49

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

50

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

51

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

54

Husqvarna 539112056

GREASABLE MANDREL SHAFT
(Superseded to 532187291)

$

$

Not available
