MZ 5424 S (966698801) - Husqvarna 54" Zero-Turn Mower (2010-09) FRAME Parts Diagram

54" Zero-Turn Mower

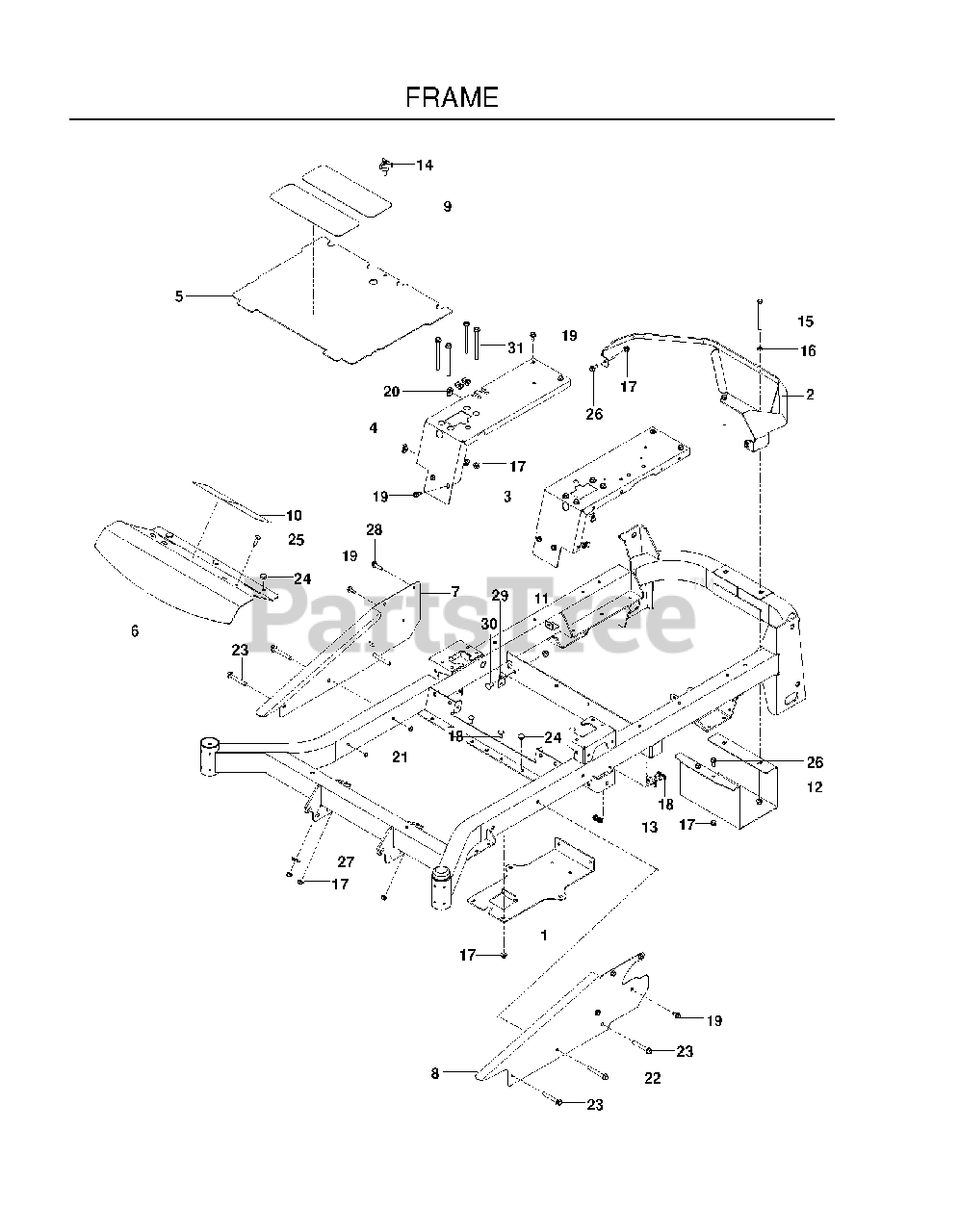

FRAME Parts Diagram

  • Title
1

Husqvarna 575017202

PLATE, BATTERY, BLACK

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575348402

GUARD, REAR MZ, GRAY

$250.99

$

Usually ships in 3-10 days

0

3

Husqvarna 576694802

PANEL, FILLER LT, ORG

$56.99

$

Usually ships in 3-10 days

0

4

Husqvarna 576694702

PANEL.FILLER.RT.ORNAGE

$56.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539132744

PLATE, FLOOR W/DECALS

$241.99

$

In Stock, only 1 left!

0

6

Husqvarna 539132380

PLATE, FOOTREST

$113.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539131579

SIDE.RT.ORANGE

$39.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539131577

SIDE.LT.ORANGE

$68.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

10

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

12

Husqvarna 575230402

SHIELD.MUFFLER.BLACK

$91.99

$

In Stock, only 1 left!

0

13

Husqvarna 505256401

STOP, DECK, EZ+

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

18

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

20

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

21

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

22

Husqvarna 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

23

Husqvarna 539133006

HHFS 3/8-16 X 2.5 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

25

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

27

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

28

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 575245202

BRACKET.DAMPENER.BLACK

$6.99

$

In Stock, Qty 5

0

30

Husqvarna 539109117

RHSNB 3/8-16 X 3/4 GR 5 BLK ZN

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days
