MZ 5424 S (966698801) - Husqvarna 54" Zero-Turn Mower (2010-09) ELECTRICAL Parts Diagram

54" Zero-Turn Mower

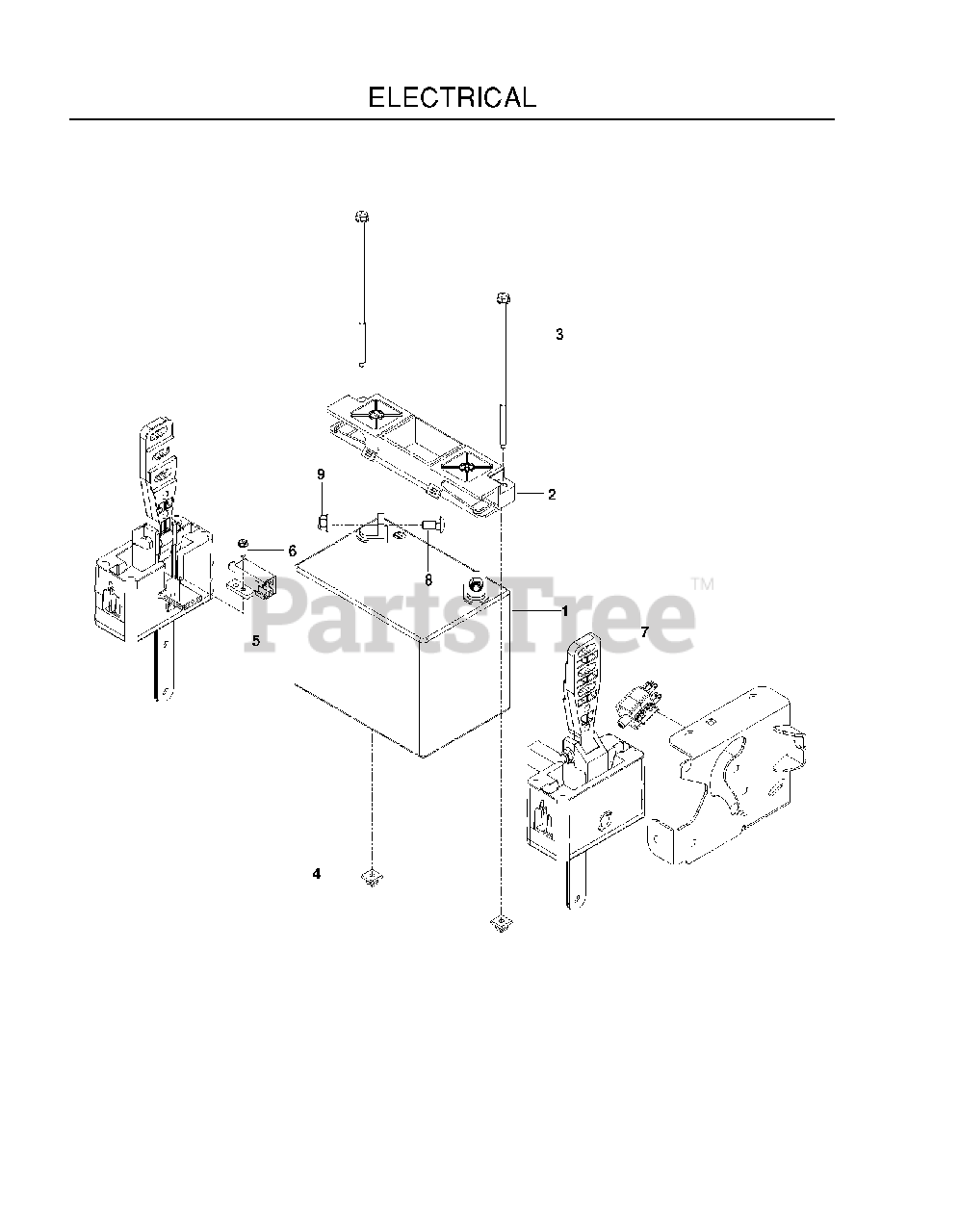

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

2

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

3

Husqvarna 539107632

Bolt, 1/4-20 X 7.5

$

$

Not available

4

Husqvarna 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

8

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

Husqvarna 539104974

POST.CABLE LONG

Note: NOT SHOWN

$

$

Not available

Husqvarna 539107645

NEG. CABLE, 28"

Note: NOT SHOWN

$40.99

$

Usually ships in 3-10 days

0

Husqvarna 575320901

HARNESS, MAIN

Note: NOT SHOWN

$206.99

$

In Stock, only 1 left!

0

Husqvarna 539976856

TIE, PLASTIC

Note: NOT SHOWN

$5.99

$

Usually ships in 3-10 days

0
