MZ 54 - Husqvarna 54" Zero-Turn Mower PARKING BRAKE Parts Diagram

54" Zero-Turn Mower

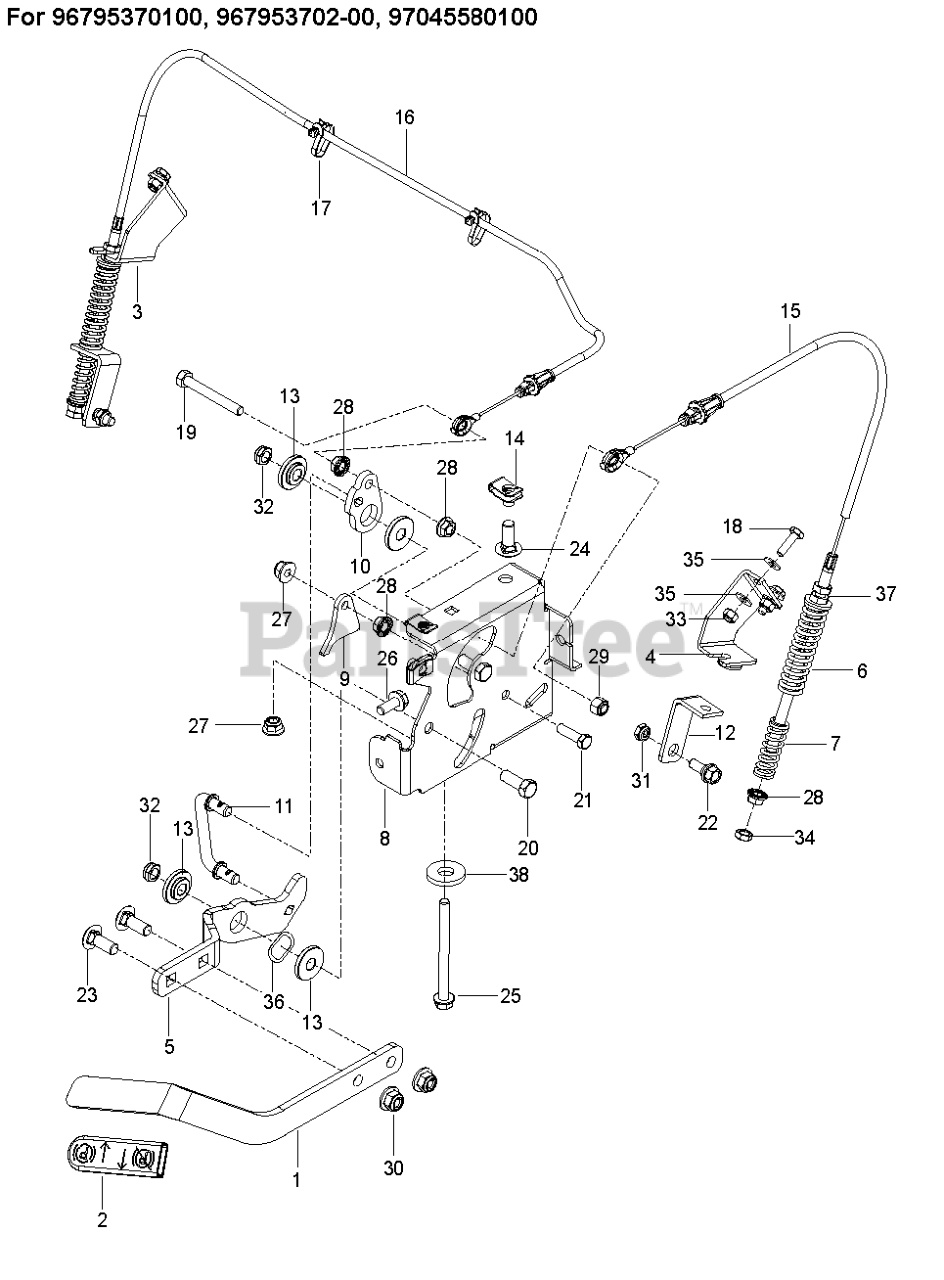

PARKING BRAKE Parts Diagram

  • Title

2

Husqvarna 539105036

GRIP, PARK BRAKE

$6.49

$

In Stock, only 2 left!

0

27

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

18

Husqvarna 539990643

HCS 1/4-20X7/8 GR5

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539107897

NUT 5/16-18 HEX JAM ZD

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 586830002

MOUNT.BRAKET.PNT.BLACK.MS431
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

35

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

1

Husqvarna 539132151

ARM, BRAKE
(Superseded to 593564002)

$9.49

$

In Stock, only 1 left!

0

14

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

19

Husqvarna 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

12

Husqvarna 575229802

BRKT, BRAKE, BLK

$34.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539132153

BELLCRANK, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

36

Husqvarna 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0

31

Husqvarna 539115617

5/16-18 THIN PROF NY

$

$

Not available

6

Husqvarna 575230201

SPRING, RETURN

$6.99

$

In Stock, only 2 left!

0

23

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

37

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

Husqvarna 532197802

SWITCH.INTRLCK.CLUTCH.

Note: NOT SHOWN

$18.99

$

In Stock, Qty 7

0

13

Husqvarna 539132161

BUSHING, BRAKE

$6.49

$

In Stock, only 1 left!

0

30

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

38

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

32

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

20

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

26

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

5

Husqvarna 586738802

LEVER.PNT.BRAKE.E-DIP
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

16

Husqvarna 582122001

CABLE.ASSY.BRAKE.CABLE.LONG
(Superseded to 539132174)

$22.99

$

In Stock, only 2 left!

0

4

Husqvarna 575229702

BRKT, BRAKE LT, BLK
(Superseded to 593279902)

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 575230301

SPRING, ENGAGEMENT

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 582121801

CABLE.ASSY.BRAKE.CABLE.SHORT

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

3

Husqvarna 575229602

BRKT, BRAKE RT, BLK
(Superseded to 593279202)

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539132154

ACTUATOR, SWITCH
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

11

Husqvarna 539132424

LINKAGE, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

28

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0
