MZ 54 (970455801-00) - Husqvarna 54" Zero-Turn Mower (2019-12) MOWER DECK / CUTTING DECK Parts Diagram

54" Zero-Turn Mower

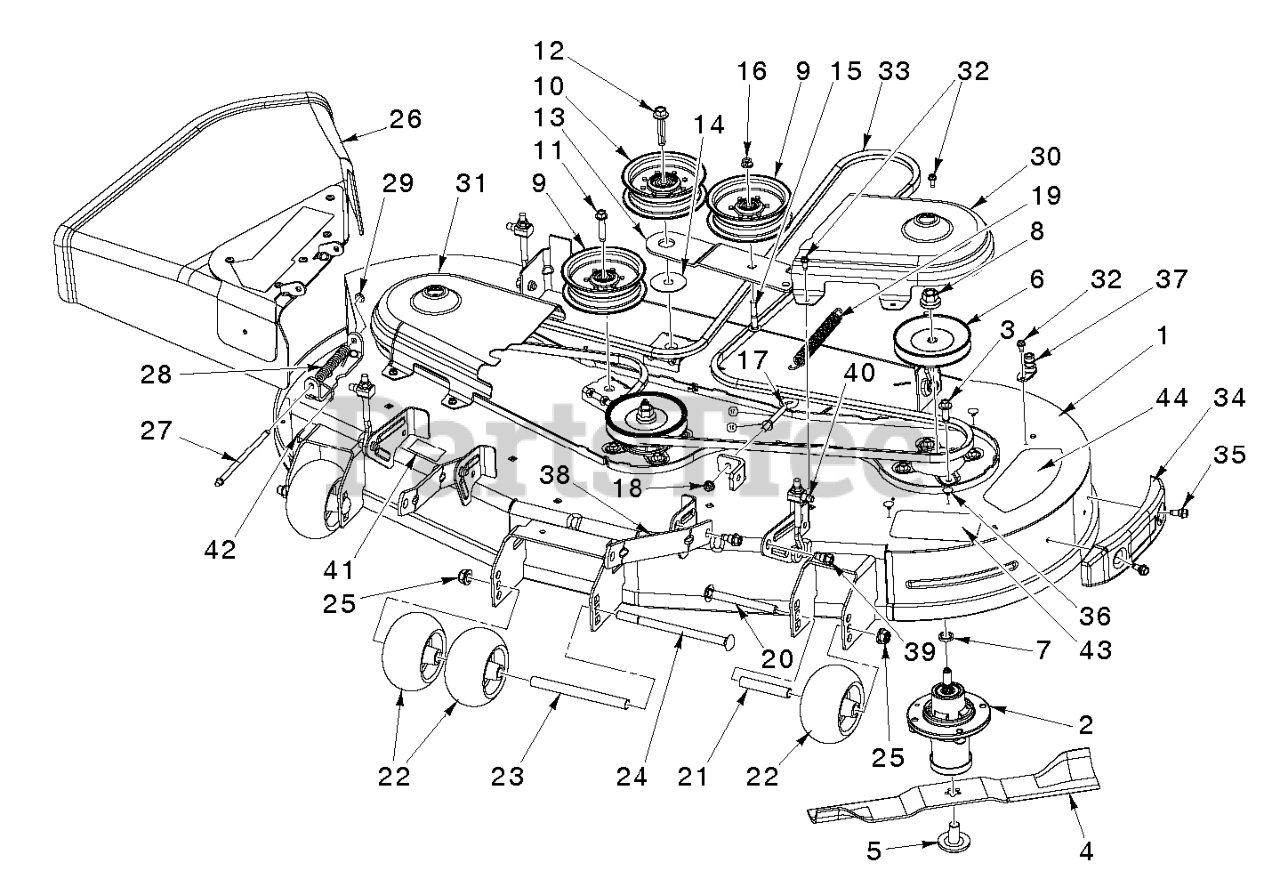

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

10

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 19

0

38

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 582062502

BLADE.54CC.HI-LIFT.PZ.197".431

$34.99

$

In Stock, only 3 left!

0

40

Husqvarna 588783401

LINK.ASM.ADJUSTABLE
(Superseded to 599857101)

$11.99

$

In Stock, Qty 20+

0

39

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

44

Husqvarna 590885101

DECAL DECK DECAL DECAL.54DECK.
(Superseded to 593808801)

$12.99

$

Usually ships in 3-10 days

0

8

Husqvarna 596134801

Nuts

$4.99

$

In Stock, Qty 15

0

15

Husqvarna 596136301

Bolts

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

37

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

14

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 594944501

Bolts

$9.49

$

In Stock, Qty 6

0

29

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 596240801

GSPW Bolts

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 590805104

Pulleys

$40.99

$

Usually ships in 3-10 days

0

12

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 5

0

23

Husqvarna 574196502

Tubes

$24.99

$

In Stock, only 1 left!

0

40

Husqvarna 588252901

NUT.HEX.FLANGE.INS.BLK.3/8-16

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 591120101

DECK.SVC.54.CLRCT.MZ.MS668
(Superseded to 546499901)

$1709.99

$

Usually ships in 3-10 days

0

18

Husqvarna 596039201

GSPW Hardware

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539121322

FOOT PAD

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 589813301

PLUG CHRISTMAS TREE

$3.49

$

In Stock, only 4 left!

0

9

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

31

Husqvarna 590304203

COVER 54 CLEARCUT RH MANDREL G

$26.99

$

In Stock, only 1 left!

0

25

Husqvarna 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

$4.99

$

In Stock, Qty 7

0

7

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

42

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 582219602

ARM IDLER ARM, CLEARCUT 54 BLA

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 590304403

COVER.PNT.54CC.MNDRL.LH.ZTR.GY

$20.99

$

In Stock, only 1 left!

0

33

Husqvarna 582236501

BELT CLEARCUT 54, MZ DECK DRIV

$79.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532176205

TRUNNION

$7.99

$

In Stock, Qty 5

0

20

Husqvarna 510022302

Screws

$6.99

$

In Stock, Qty 9

0

28

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 10

0

34

Husqvarna 590732501

BUMPER ASSY 54 CLEARCUT TRIM S

$10.99

$

In Stock, only 4 left!

0

2

Husqvarna 596794502

Mandrels

$133.99

$

In Stock, only 1 left!

0

5

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 3 left!

0

21

Husqvarna 574196402

Tubes

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

41

Husqvarna 591163901

DECAL BELT ROUTING DECAL DECAL

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

In Stock, only 2 left!

0

26

Husqvarna 590632201

DEFLECTOR ASSY 54 CLEARCUT RES

$74.99

$

In Stock, Qty 6

0

11

Husqvarna 596564003

BOLT;HEX_3/8-16 X 1.78.CLRZINC

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0
