MZ 54 (967696001-00) - Husqvarna 54" Zero-Turn Mower (2017-12) SEAT Parts Diagram

54" Zero-Turn Mower

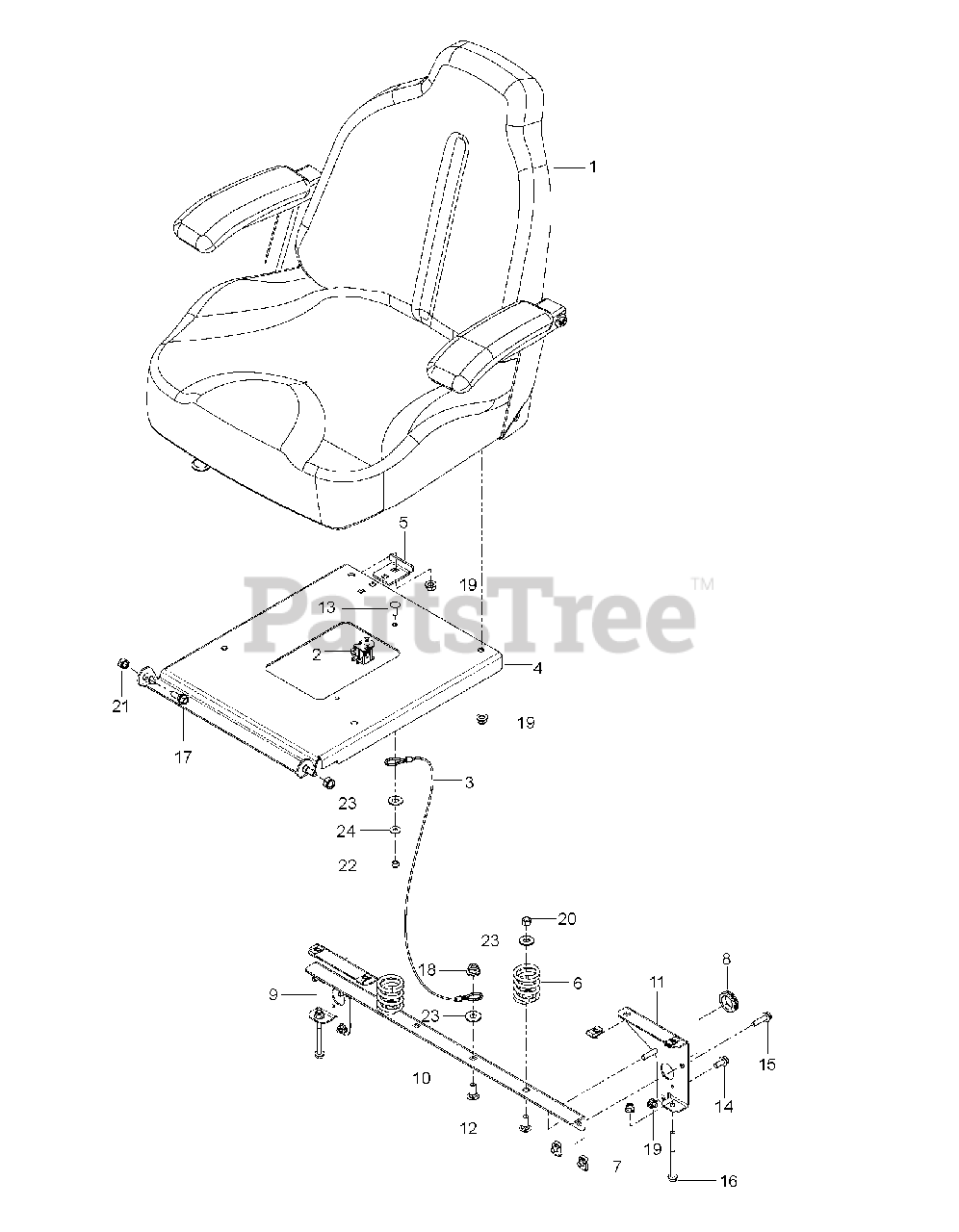

SEAT Parts Diagram

  • Title
1

Husqvarna 501580402

SEAT.ASM.907.TRACK.W/O.BELT

Note: . 2

$797.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532197802

SWITCH.INTRLCK.CLUTCH.

$18.99

$

In Stock, Qty 7

0

3

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

4

Husqvarna 501762102

SUPPORT.SEAT.ORANGE
(Superseded to 596300901)

$74.99

$

In Stock, Qty 7

0

5

Husqvarna 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587613301

SPRING.COMPRESSION.SEAT.BLACK

$6.99

$

In Stock, only 4 left!

0

7

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

8

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

9

Husqvarna 584990202

SUPPORT.LT.BLK

$5.99

$

In Stock, only 4 left!

0

10

Husqvarna 584809102

SUPPORT.SEAT. BLK

$31.99

$

Usually ships in 3-10 days

0

11

Husqvarna 584990102

SUPPORT.RT.BLK

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

13

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

15

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

19

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

23

Husqvarna 819141614

WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

24

$

$

Not available
