MZ 5225 C (968999748) - Husqvarna 52" Zero-Turn Mower (2007-11) Steering Parts Diagram

52" Zero-Turn Mower

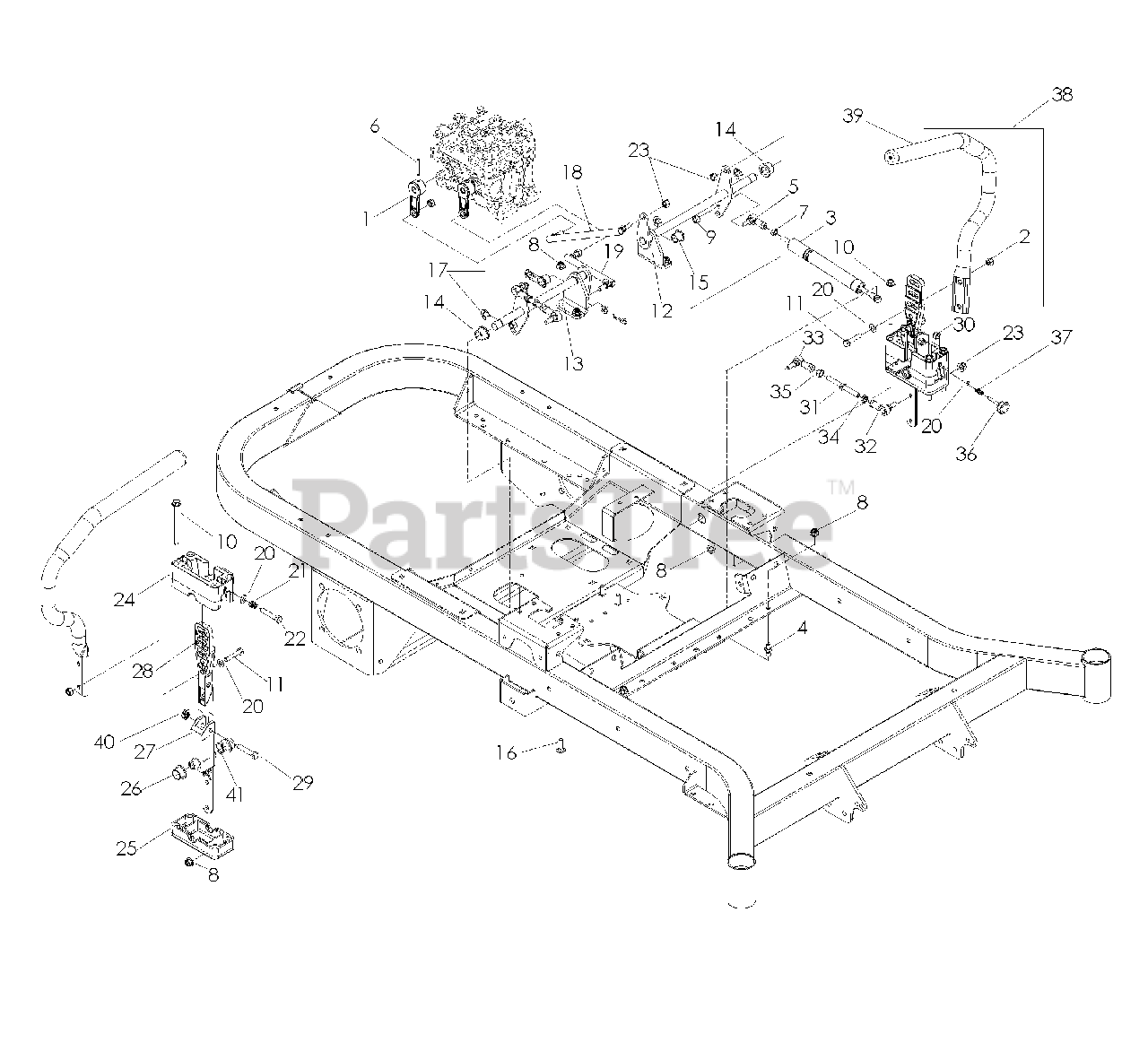

Steering Parts Diagram

  • Title

1

Husqvarna 539131546

ARM, PUMP
(Superseded to 522773701)

$218.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 539131658

DAMPENER W/SPRING

$103.99

$

In Stock, only 1 left!

0

4

Husqvarna 539110607

STUD, 10MM BALL

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539131749

ROD END

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539131559

PIN, SPIRAL, 5/32 X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539127046

NUT M8 x 1.25 STD HEX

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

9

Husqvarna 539118496

NUT M8 NYLOC

$12.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539131780

HHFS 5/16-18 x 3 3/4

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539976935

HCS 5/16-18 x 1 1/2

$

$

Not available

12

Husqvarna 539132163

CONTROL WLDMT, LT

$47.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539132164

CONTROL WLDMT, RT

$47.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539132168

BUSHING, FLANGED, 5/8

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539132169

BUSHING, CLIP, 5/8

$

$

Not available

16

Husqvarna 539990208

RHSNB 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539105069

E-RING

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539131551

LINK, MOTION, LT

$30.99

$

In Stock, only 1 left!

0

19

Husqvarna 539131552

LINK, MOTION, RT

$

$

Not available

20

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

21

Husqvarna 539102845

SPRING, TANK MOUNT

$4.99

$

In Stock, only 3 left!

0

22

Husqvarna 539108394

HCS 5/16-18 x 1 3/4 TPBLT

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539108743

NUT 5/16-24 CNTRLK

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539131517

BLOCK, UPPER

$30.99

$

In Stock, only 1 left!

0

25

Husqvarna 539131519

BLOCK, LOWER

$15.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 6

0

27

Husqvarna 539131520

PIVOT SECTION, DR CNTRL
(Superseded to 522452901)

$31.99

$

In Stock, Qty 10

0

28

Husqvarna 539131521

MOUNT, DR CNTRL HANDLE
(Superseded to 576452801)

$40.99

$

In Stock, only 3 left!

0

29

Husqvarna 539990669

HCS 5/16-18 x 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 539990196

NUT 5/16-18 HEX

$1.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539131550

JACK SCREW

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539110604

SPHERICAL ROD END LH

$24.99

$

In Stock, only 1 left!

0

33

Husqvarna 539110603

SPHERICAL ROD END RH

$40.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539991073

NUT 5/16-24 HEX JAM LH

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990223

NUT 5/16-24 HEX

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539131799

KNOB

$

$

Not available

37

Husqvarna 539101224

SPRING

$22.99

$

In Stock, only 1 left!

0

38

Husqvarna 539132009

LEVER, DRIVE W/GRIP RT

$80.99

$

In Stock, Qty 18

0

38

Husqvarna 539132010

LEVER, DRIVE W/GRIP LT

$80.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539130894

GRIP, DRIVER LEVER

$9.99

$

In Stock, only 3 left!

0

40

Husqvarna 539112899

NUT, 5/16-18, FLANGE, NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

41

Husqvarna 539133007

WASHER, .825, WAVE

$4.99

$

In Stock, only 3 left!
