MZ 5225 (968999717) - Husqvarna 52" Zero-Turn Mower (2008-03) CHASSIS / FRAME Parts Diagram

52" Zero-Turn Mower

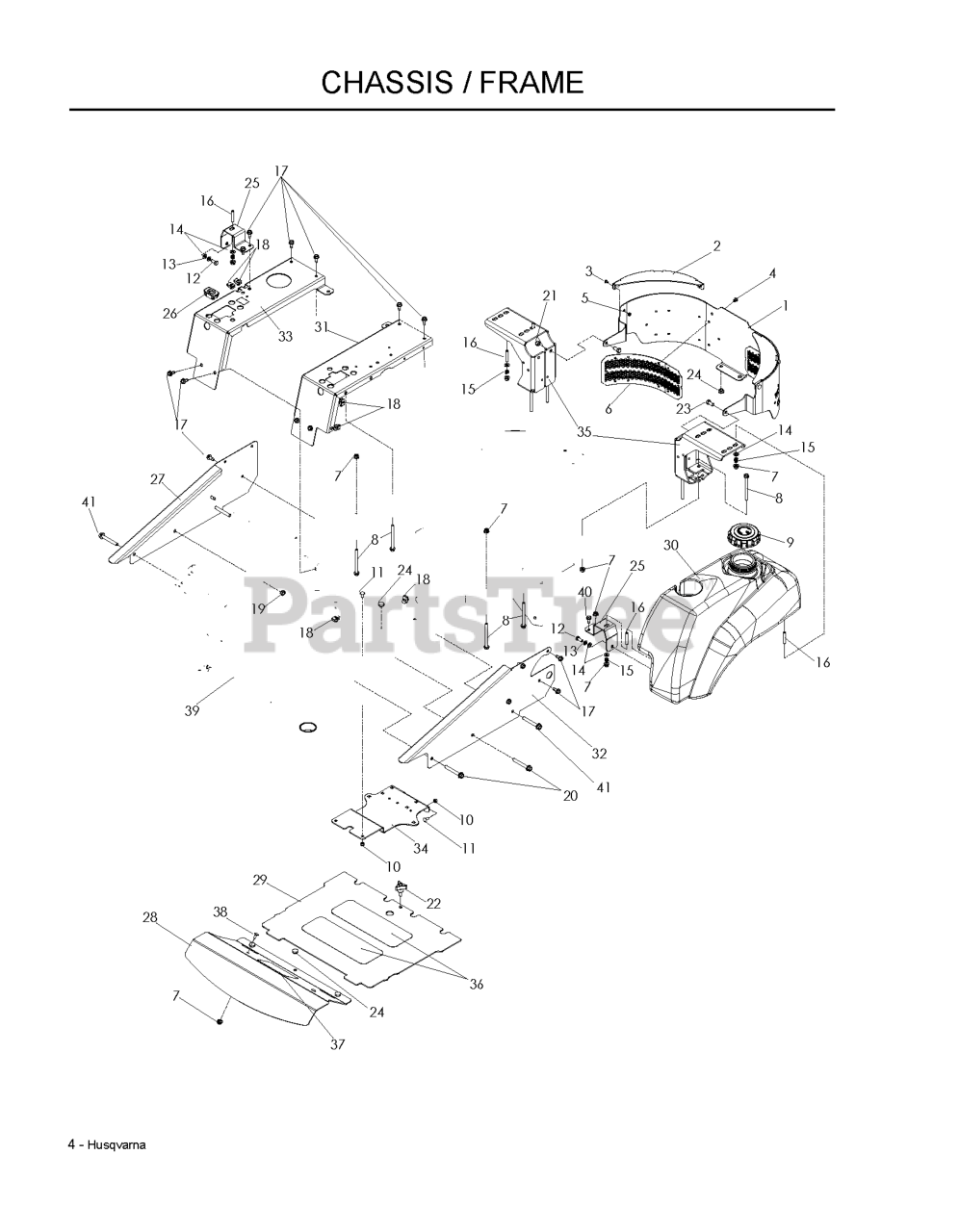

CHASSIS / FRAME Parts Diagram

  • Title

28

Husqvarna 539132380

PLATE, FOOTREST

$113.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

6

Husqvarna 539131753

PANEL, HEX, RR

$21.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539111777

RHSSNB 1/4-20 X 1/2

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539121322

FOOT PAD

$4.99

$

In Stock, only 4 left!

0

2

Husqvarna 539131751

SUPPORT, TOP

$

$

Not available

26

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

41

Husqvarna 539133006

HHFS 3/8-16 X 2.5 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539131591

PANEL, FILLER, RT

$

$

Not available

18

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

27

Husqvarna 539131579

SIDE.RT.ORANGE

$39.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539131594

GUARD, REAR

$

$

Not available

9

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

19

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

12

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

17

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

34

Husqvarna 539131537

BATTERY MOUNT

$42.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539200684

RIVERT, 3/16, STAVEX

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539131577

SIDE.LT.ORANGE

$68.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539111786

RHSSNB, 1/4-20X5/8

$2.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

31

Husqvarna 539131589

PANEL, FILLER, LT

$

$

Not available

25

Husqvarna 539131671

SUPPORT, TANK, BLK

$68.99

$

In Stock, only 1 left!

0

22

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

$

$

Not available

5

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

38

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

29

Husqvarna 539132744

PLATE, FLOOR W/DECALS

$241.99

$

In Stock, only 1 left!

0

7

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

35

Husqvarna 539131692

MOUNT, TANK, RR

$109.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

39

Husqvarna 539132743

FRAME W/DECALS 52", 61"

$

$

Not available

36

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0
