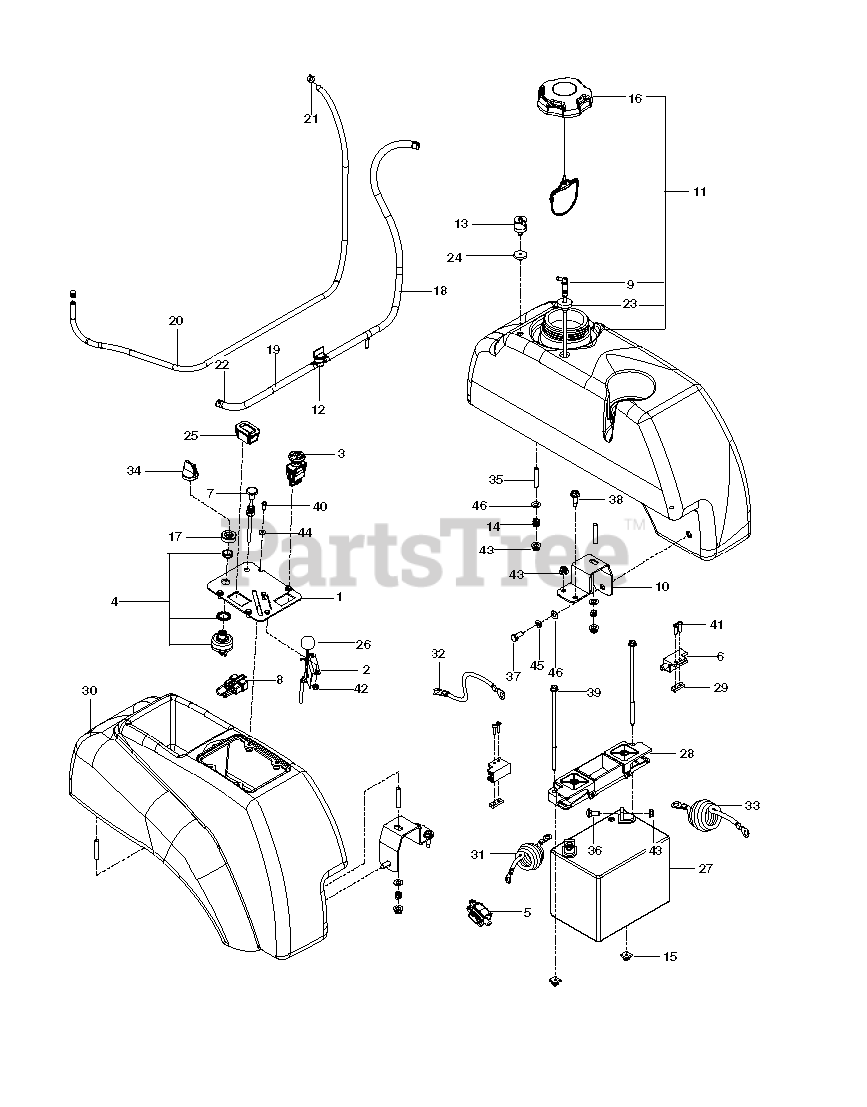

MZ 5225 (966690502-00) - Husqvarna 52" Zero-Turn Mower (2013-01) IGNITION SYSTEM Parts Diagram

52" Zero-Turn Mower

IGNITION SYSTEM Parts Diagram

  • Title
23

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 11

0

32

Husqvarna 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB

$

$

Not available

40

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539105408

WASHER #10

$3.99

$

In Stock, Qty 12

0

13

Husqvarna 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 17

0

7

Husqvarna 539113458

CABLE, CHOKE

$47.99

$

Usually ships in 3-10 days

0

34

Husqvarna 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

39

Husqvarna 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

25

Husqvarna 532401763

RP.GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 5

0

17

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539107593

FENDER CONSOLE

$157.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539107765

HOSE, FUEL .25 ID X 26"

$7.99

$

In Stock, only 2 left!

0

46

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

45

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

36

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

9

Husqvarna 576469201

FITTING, FUEL

$31.99

$

In Stock, only 1 left!

0

29

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

41

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

24

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

$4.99

$

In Stock, only 3 left!

0

38

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

28

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

6

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539104974

POST.CABLE LONG

$

$

Not available

37

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 578368102

TANK FUEL LT ASM MZ GRAY
(Superseded to 585722301)

$

$

Not available

12

Husqvarna 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

43

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

Husqvarna 539976856

TIE, PLASTIC

Note: NOT SHOWN

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539107645

NEG. CABLE, 28"

$40.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539131671

SUPPORT, TANK, BLK

$68.99

$

In Stock, only 1 left!

0

1

Husqvarna 574841204

PLATE.CONSOLE.BLACK
(Superseded to 592877402)

$7.49

$

In Stock, only 1 left!

0

21

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

19

Husqvarna 539932956

GAS LINE 10"

$

$

Not available

15

Husqvarna 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0

Husqvarna 575320901

HARNESS, MAIN

Note: NOT SHOWN

$206.99

$

In Stock, only 1 left!

0

8

Husqvarna 575321001

PLUG, TIMER

$14.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$18.99

$

In Stock, Qty 20+

0

20

Husqvarna 576660602

HOSE, VAPOR 3/16 X 48"

$31.99

$

In Stock, only 1 left!

0

35

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

16

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

4

Husqvarna 574455401

SWITCH, IGNITION, INDAK

$34.99

$

Usually ships in 3-10 days

0
