MZ 52 (967666001-00) - Husqvarna 52" Zero-Turn Mower (2017-02) STEERING Parts Diagram

52" Zero-Turn Mower

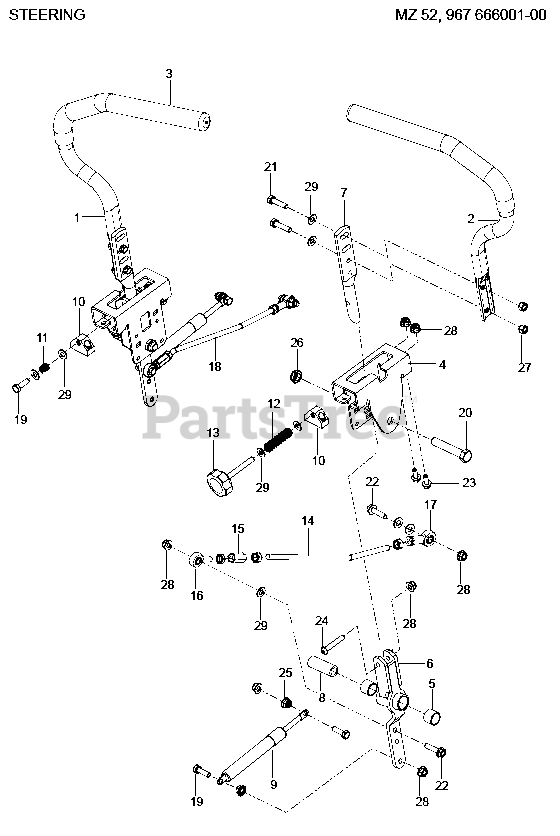

STEERING Parts Diagram

  • Title
1

Husqvarna 582313803

Tube RZ Control Lever, RT
(Superseded to 598851703)

$51.99

$

In Stock, only 1 left!

0

2

Husqvarna 582313804

TUBE.LEVER.CNTL.ASM.Z
(Superseded to 590090804)

$

$

Not available

3

Husqvarna 525392902

PURCHASE THE COMPLETE LEVER

$

$

Not available

4

Husqvarna 585124705

BRACKET.CONTROLS.ZTR.X431

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532438282

Bearing, PT 750

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587187701

CONTROL.WELDMENT.RZ

$20.99

$

In Stock, only 1 left!

0

7

Husqvarna 577420001

LEVER.HANDLE MOUNT

$

$

Not available

8

Husqvarna 584927201

SPACER.PIVOT.CONTROL

$5.99

$

In Stock, only 4 left!

0

9

$66.99

$

In Stock, only 3 left!

0

10

Husqvarna 581437501

BLOCK TRACKING CONTROL ZTR

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 576850301

SPRING COMPRESSION 2.0

$6.49

$

In Stock, Qty 9

0

$

$

Not available

14

Husqvarna 574811401

ROD, CONTROL

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539116689

ROD END COUPLER

$

$

Not available

16

Husqvarna 588692502

ROD.END.MALE.LH.THREAD
(Superseded to 539116690)

$10.99

$

In Stock, only 1 left!

0

17

Husqvarna 579764601

Joint Heim, Feml.516.R

$9.49

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

19

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

22

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

24

Husqvarna 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, only 2 left!

0

25

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

27

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

29

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0
