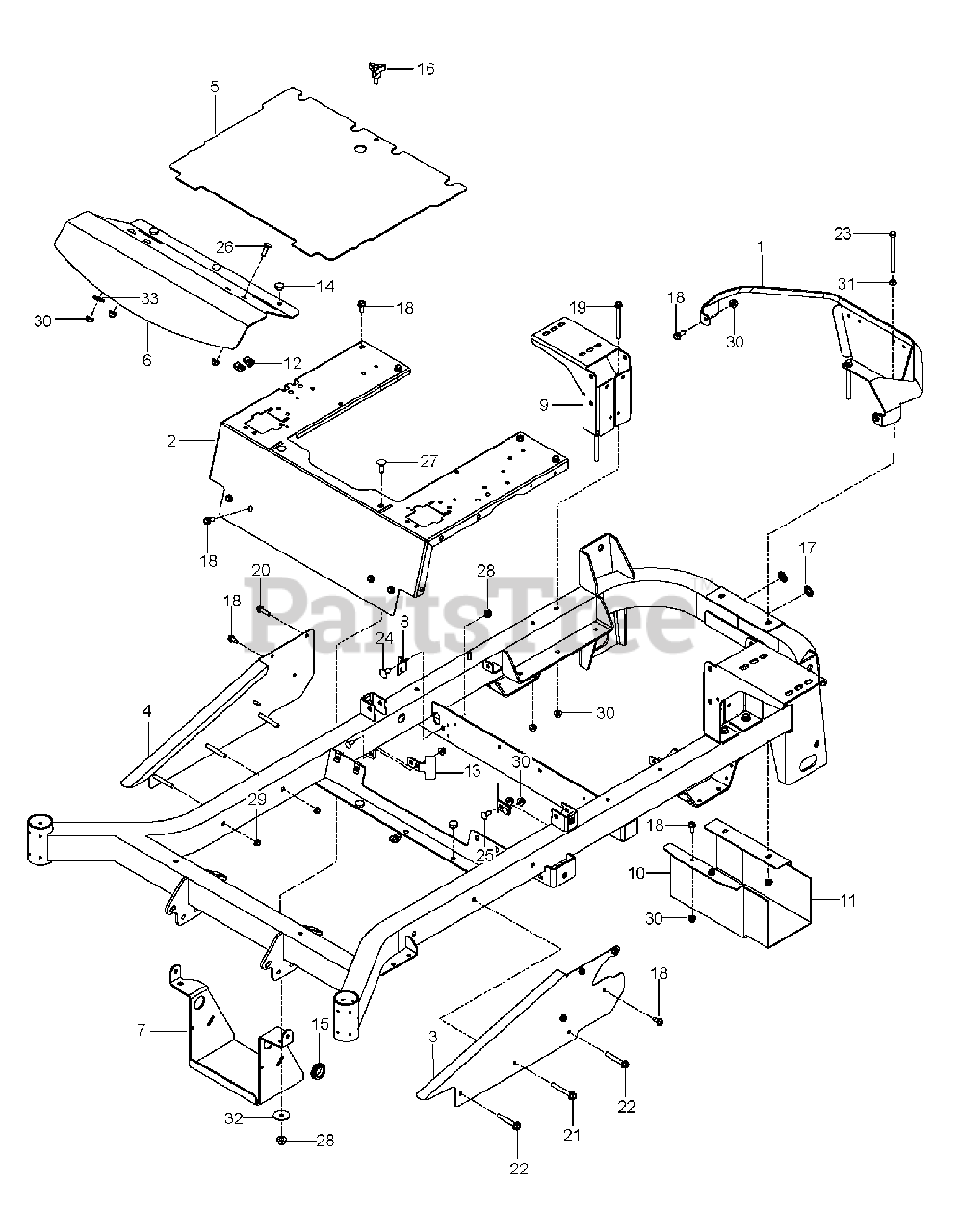

MZ 52 (967277404-01) - Husqvarna 52" Zero-Turn Mower (2016-12) FRAME Parts Diagram

52" Zero-Turn Mower

FRAME Parts Diagram

  • Title

1

Husqvarna 586893002

GUARD.PNT.REAR.MZ.GRAY
(Superseded to 582693702)

$85.99

$

Usually ships in 3-10 days

0

2

Husqvarna 586867702

SUPPORT.PNT.SEAT.CONTROL.ORNG
(Superseded to 598704902)

$79.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539131577

SIDE.LT.ORANGE

$68.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539131579

SIDE.RT.ORANGE

$39.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539132744

PLATE, FLOOR W/DECALS

$241.99

$

In Stock, only 1 left!

0

6

Husqvarna 539132380

PLATE, FOOTREST

$113.99

$

Usually ships in 3-10 days

0

7

Husqvarna 587048702

BRACKET.PNT.BATTERY.BLK

$45.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575245202

BRACKET.DAMPENER.BLACK

$6.99

$

In Stock, only 4 left!

0

9

Husqvarna 575533602

MOUNT, TANK, ZT BLK

$74.99

$

Usually ships in 3-10 days

0

10

Husqvarna 575230402

SHIELD.MUFFLER.BLACK

$91.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

13

Husqvarna 505256401

STOP, DECK, EZ+

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

15

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

16

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 587990501

CAP.PLUG.BP-1.BLACK

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

19

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD

$

$

Not available

22

Husqvarna 539133006

HHFS 3/8-16 X 2.5 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539109117

RHSNB 3/8-16 X 3/4 GR 5 BLK ZN

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 872140508

BOLT

$2.99

$

Usually ships in 3-10 days

0

27

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

29

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

30

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

31

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

32

Husqvarna 819132416

WASHER.13/32X1-1/2X16GA

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

Husqvarna 501656001

KIT.FRAME.W/DECALS.X668

Note: W / Safety Decals

$2051.99

$

Usually ships in 3-10 days

0
