MZ 52 (967277401-02) - Husqvarna 52" Zero-Turn Mower (2016-11) IGNITION SYSTEM Parts Diagram

52" Zero-Turn Mower

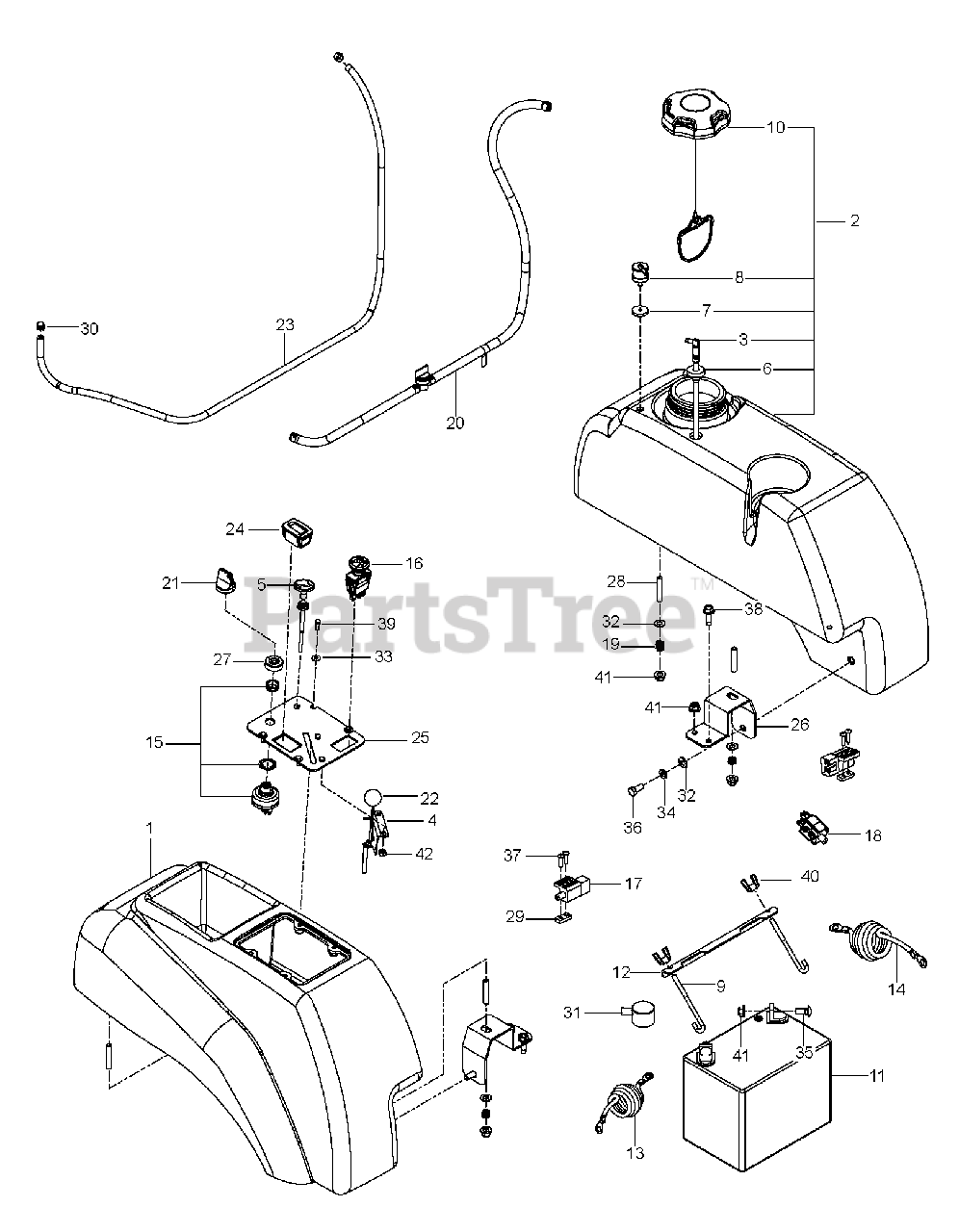

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 539107593

FENDER CONSOLE

$157.99

$

Usually ships in 3-10 days

0

2

Husqvarna 585722301

FUEL.TANK.ASSY.LH.MZ.GRY

$

$

Not available

3

Husqvarna 576469201

FITTING, FUEL

$31.99

$

In Stock, only 1 left!

0

4

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB

$

$

Not available

5

Husqvarna 539113458

CABLE, CHOKE

$47.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 12

0

7

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 5

0

8

Husqvarna 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 13

0

9

Husqvarna 510064001

HOOK, "J"

$

$

Not available

10

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

12

Husqvarna 510030001

BRACKET, BATTERY MOUNT

$51.99

$

In Stock, only 1 left!

0

13

Husqvarna 588030701

CABLE.BATT.SOLENOID.MZ.RED.25"

$14.99

$

Usually ships in 3-10 days

0

14

Husqvarna 588030801

CABLE.GROUND.BATT.MZ.BLACK.39"

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 574455401

SWITCH, IGNITION, INDAK

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

17

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532197802

SWITCH.INTRLCK.CLUTCH.

Note: BRAKE

$18.99

$

In Stock, Qty 7

0

19

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 586123901

FUEL.HOSE.SHUT.OFF.ASM.10".26"

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$18.99

$

Usually ships in 3-10 days

0

23

Husqvarna 587044564

HOSE.3/16".VAPOR.LINE.64"LGTH

Note: CUT TO FIT

$13.99

$

Usually ships in 3-10 days

0

24

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

25

Husqvarna 574841204

PLATE.CONSOLE.BLACK
(Superseded to 592877402)

$7.49

$

In Stock, only 1 left!

0

26

Husqvarna 539131671

SUPPORT, TANK, BLK

$68.99

$

In Stock, only 1 left!

0

27

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

29

Husqvarna 581223001

PLATE NUT ZTR

$

$

Not available

30

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

31

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

32

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 819070818

WASHER

$6.99

$

Usually ships in 3-10 days

0

34

Husqvarna 810030500

WASH.5/16.SLW.ZD
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

35

Husqvarna 872140506

BOLT 5/16-18 X3/4 ZN/YEL GR 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

38

Husqvarna 817490516

SCREW
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990997

WING NUT 1/4

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

42

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

Husqvarna 585999701

HARNESS MAIN MZ

Note: W / BRK SWITCH

$182.99

$

Usually ships in 3-10 days

0
