MZ 52 (967277401-00) - Husqvarna 52" Zero-Turn Mower (2013-07) SEAT Parts Diagram

52" Zero-Turn Mower

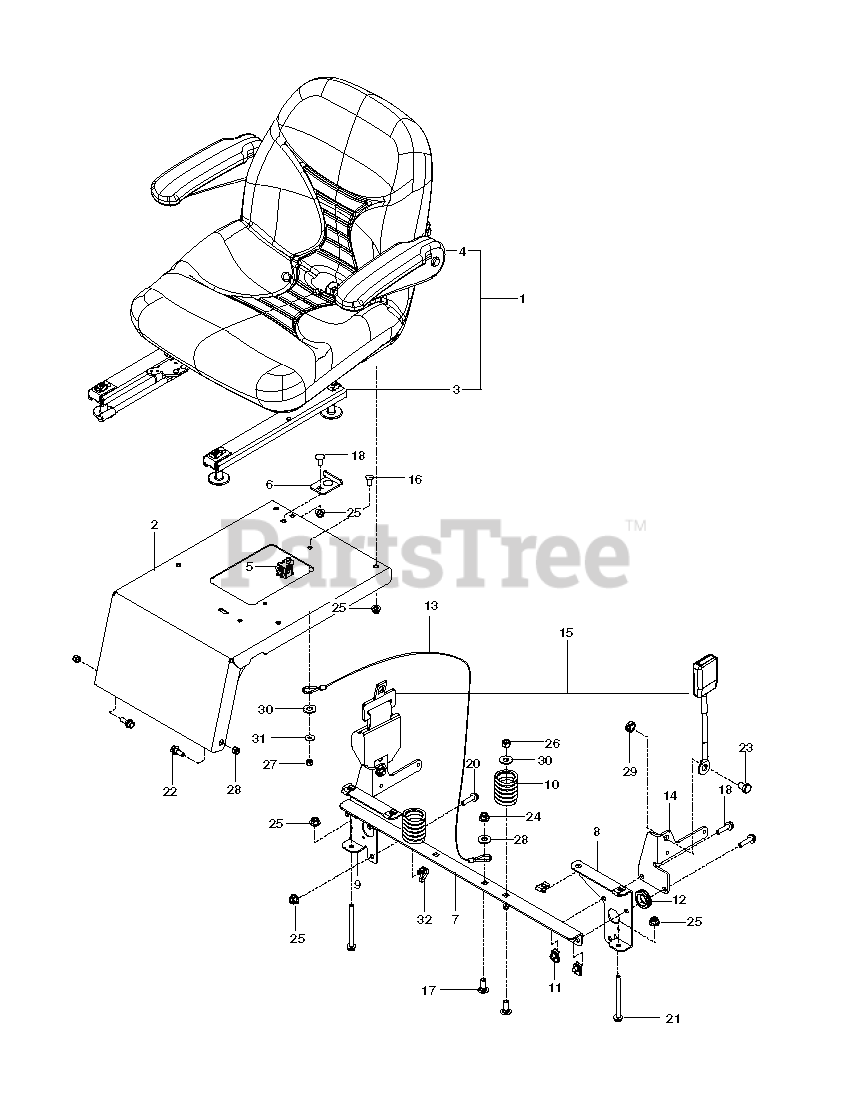

SEAT Parts Diagram

  • Title

1

Husqvarna 539130873

SEAT
(Superseded to 501580402)

$968.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575608601

KIT.SEAT.MOUNT.W/DECAL

$205.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539112037

TRACK ADJUSTMENT KIT

$157.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539112036

ARMREST KIT, LT SQUARE END
(Superseded to 574201602)

$102.99

$

Usually ships in 3-10 days

0

Husqvarna 539112035

ARMREST KIT, RT SQUARE END
(Superseded to 574201601)

$113.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532421062

SWITCH.SNAPMOUNT.NC

$17.99

$

In Stock, Qty 20+

0

6

Husqvarna 539130793

STOP, SEAT - BLACK
(Superseded to 539130794)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539131656

SUPPORT, SEAT

$170.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575224102

SUPPORT, LT, BLK

$62.99

$

Usually ships in 3-10 days

0

9

Husqvarna 575224002

SUPPORT, RT, BLK

$42.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 17

0

12

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

13

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 1 left!

0

14

Husqvarna 575017402

MOUNT, SEAT BELT, BLACK

$

$

Not available

15

Husqvarna 539130359

Seat Belt, Retractable
(Superseded to 596322701)

$136.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

18

Husqvarna 539109100

RHSNB 5/16-18 X 3/4

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

21

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539112034

HCS 7/16-20 X .75 GD 5

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

25

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

28

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990394

NUT HEX 7/16F LOCK RP

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

32

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

In Stock, only 2 left!

0
