MZ 48 (967665901-00) - Husqvarna 48" Zero-Turn Mower (2017-02) MOWER LIFT / DECK LIFT Parts Diagram

48" Zero-Turn Mower

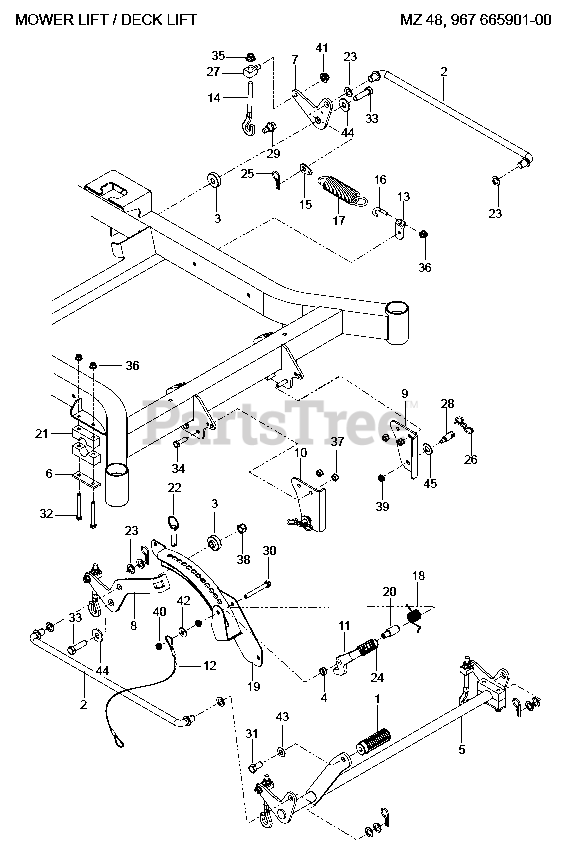

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

Husqvarna 510408301

PEDAL, DECK HEIGHT

$

$

Not available

2

Husqvarna 539110808

CROSS LINK

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 586701701

SPACER.IDLER.METAL.POWDER

$

$

Not available

4

Husqvarna 539131861

SPACER, .3

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 586928702

LIFT.PNT.MZ.DECK.WELD.E-DIP

$56.99

$

Usually ships in 3-10 days

0

6

Husqvarna 584392702

REINFORCEMENT.PLATEX431

$13.99

$

In Stock, only 4 left!

0

7

Husqvarna 539131897

BELLCRANK, RR, LIFT

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539131853

BELLCRANK, RR, RT

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna 588812102

BRACKET.PNT.SUSP.CHAS.FR.LH.OR

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 588812002

BRACKET.PNT.SUSP.CHAS.FR.RH.OR
(Superseded to 592978502)

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539131566

LATCH, TRANSPORT

$27.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539105059

LANYARD

$10.99

$

In Stock, only 1 left!

0

13

Husqvarna 539131791

MOUNT, SPRING

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 588783301

LINK.ADJUSTABLE
(Superseded to 599857101)

$11.99

$

In Stock, Qty 20+

0

15

Husqvarna 539131792

TAB, SPRING

$56.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539112896

J-BOLT

$

$

Not available

17

Husqvarna 539102642

SPRING

$31.99

$

In Stock, only 1 left!

0

18

Husqvarna 539132734

SPRING, TORSION

$

$

Not available

19

Husqvarna 539131850

HEIGHT, ADJUST, DECK

$84.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539131860

PIVOT, LATCH, TRANSPORT

$24.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

22

Husqvarna 539132182

PIN, 1/2 X 1 1/2, DETENT RING

$

$

Not available

23

Husqvarna 539991043

BUSHING

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539132851

GRIP, TRANSPORT-RELEASE

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539115501

PIN, COTTER 1 3/4

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532176205

TRUNNION

$7.99

$

In Stock, Qty 5

0

28

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

29

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

30

Husqvarna 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5

$

$

Not available

31

Husqvarna 539990646

HHCS 1/2-13 X 1

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

33

Husqvarna 539108181

HCS 1/2-13 X 1 3/4 GR 8

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532400244

Flange Hex Ins Nut, Black 3/8-16
(Superseded to 588252901)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

37

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

40

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

41

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 819141614

WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539102843

WASHER, 7/16 DISC SPRING
(Superseded to 539115528)

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

45

Husqvarna 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 20+

0
