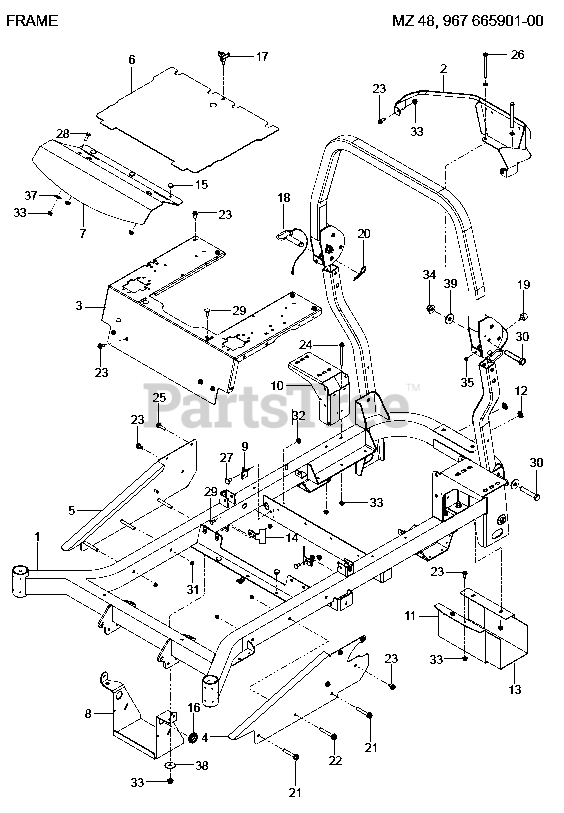

MZ 48 (967665901-00) - Husqvarna 48" Zero-Turn Mower (2017-02) FRAME Parts Diagram

48" Zero-Turn Mower

FRAME Parts Diagram

  • Title

1

Husqvarna 501656001

KIT.FRAME.W/DECALS.X668

$2051.99

$

Usually ships in 3-10 days

0

2

Husqvarna 586893002

GUARD.PNT.REAR.MZ.GRAY
(Superseded to 582693702)

$85.99

$

Usually ships in 3-10 days

0

3

Husqvarna 586867702

SUPPORT.PNT.SEAT.CONTROL.ORNG
(Superseded to 598704902)

$79.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539131577

SIDE.LT.ORANGE

$68.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539131579

SIDE.RT.ORANGE

$39.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539132744

PLATE, FLOOR W/DECALS

$241.99

$

In Stock, only 1 left!

0

7

Husqvarna 539132380

PLATE, FOOTREST

$113.99

$

Usually ships in 3-10 days

0

8

Husqvarna 587048702

BRACKET.PNT.BATTERY.BLK

$45.99

$

Usually ships in 3-10 days

0

9

Husqvarna 575245202

BRACKET.DAMPENER.BLACK

$6.99

$

In Stock, only 4 left!

0

10

Husqvarna 575533602

MOUNT, TANK, ZT BLK

$74.99

$

Usually ships in 3-10 days

0

11

Husqvarna 575230402

SHIELD.MUFFLER.BLACK

$91.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587990501

CAP.PLUG.BP-1.BLACK

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

14

Husqvarna 505256401

STOP, DECK, EZ+

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

16

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

17

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 574388001

PIN, ROPS

$

$

Not available

19

Husqvarna 522801401

BUMPER, MALE STUD, 1/4-20

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 539200715

PIN HAIR .148 X 2-15/16 #210

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539133006

HHFS 3/8-16 X 2.5 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD

$

$

Not available

23

Husqvarna 874490512

HHFS 5/16-18 X 3/4

$

$

Not available

24

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539109117

RHSNB 3/8-16 X 3/4 GR 5 BLK ZN

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 872140506

BOLT 5/16-18 X3/4 ZN/YEL GR 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 580754601

5/8-11 X 3-1/2 HHB GRADE 5

$

$

Not available

31

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

32

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

33

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

34

Husqvarna 525829101

NUT 5/8-11 FLG NYLOC ZD

$4.99

$

In Stock, only 3 left!

0

35

Husqvarna 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

36

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

37

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

38

Husqvarna 819132416

WASHER.13/32X1-1/2X16GA

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539102653

WASHER, 5/8 FLAT

$3.99

$

In Stock, only 4 left!

0
