MZ 48 (967262801-00) - Husqvarna 48" Zero-Turn Mower (2016-11) MOWER DECK / CUTTING DECK Parts Diagram

48" Zero-Turn Mower

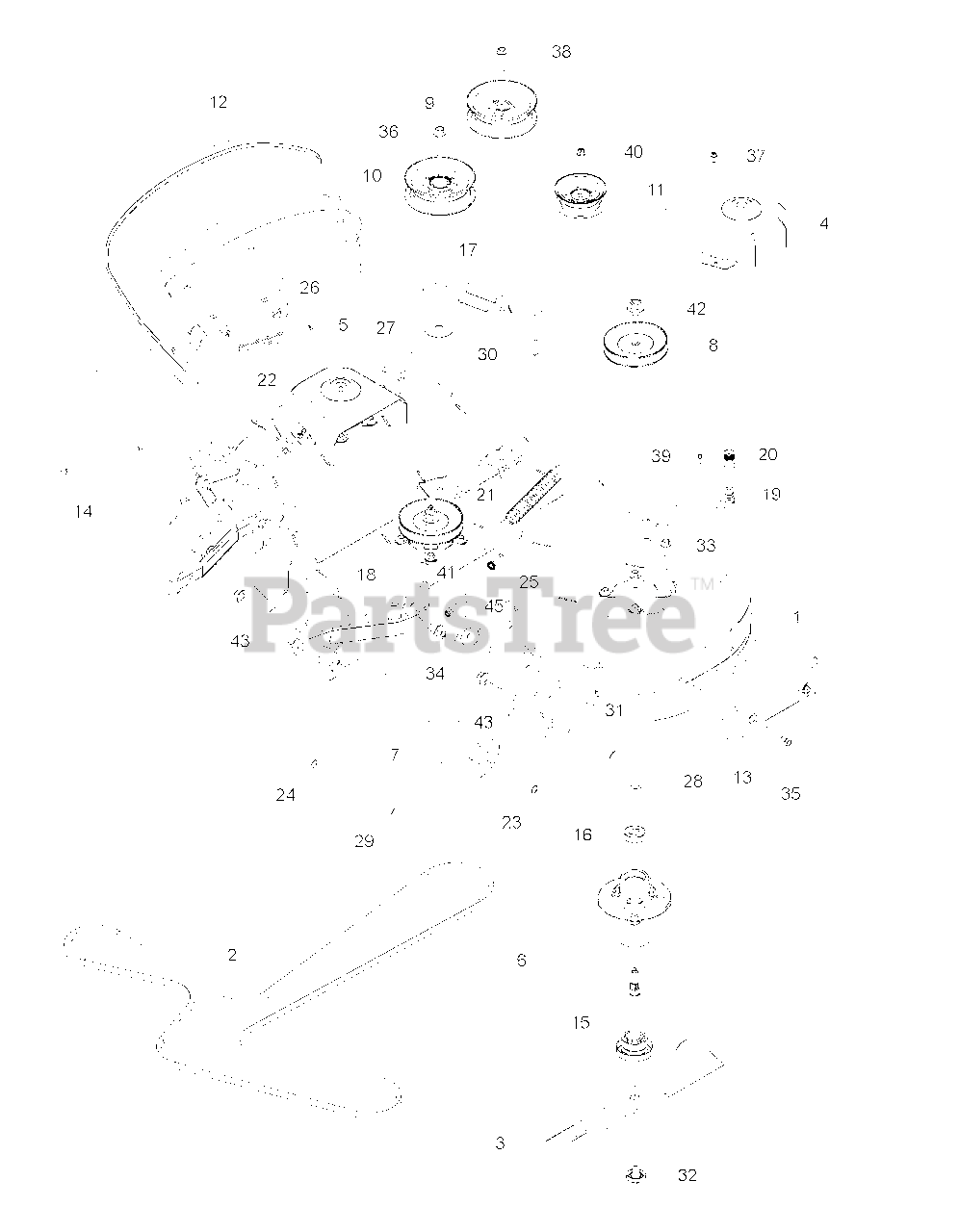

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 588798202

$

$

Currently unavailable

2

Husqvarna 579678501

BELT.DRIVE

$74.99

$

Usually ships in 3-10 days

0

3

Husqvarna 588811002

BLADE.BAGGER.RES.CLRCT.48".BLK

$34.99

$

In Stock, Qty 16

0

4

Husqvarna 588812802

COVER.PNT.MANDREL.LH.ZTR.GREY

$31.99

$

In Stock, only 1 left!

0

5

Husqvarna 588812402

COVER.PNT.MANDREL.RH.GREY

$39.99

$

In Stock, Qty 5

0

6

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

7

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532173435

MANDREL.PULLEY.38.BRIGHT.ZINC

$22.99

$

In Stock, only 2 left!

0

9

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

10

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 14

0

11

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

12

Husqvarna 588980701

DEFLECTOR.ASM.48".CLRCT.RES.OR

$

$

Not available

13

Husqvarna 582541101

BUMPER.ASM.SIDE.TRIM.CLRCUT.48

$17.99

$

In Stock, Qty 5

0

14

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 14

0

16

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 10

0

17

Husqvarna 588812202

ARM.PNT.CLUTCHING.EDIP
(Superseded to 529470302)

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

19

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 16

0

20

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

21

Husqvarna 582504001

SPRING.EXTENSION

$7.99

$

Usually ships in 3-10 days

0

22

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 10

0

23

Husqvarna 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 574196401

TUBE, ROLLER AXLE

$

$

Not available

25

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 510022401

RHSNB 1/2-13 X 8 GR5 ZD

$31.99

$

In Stock, only 1 left!

0

30

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

32

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 16

0

34

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

35

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

36

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

In Stock, only 1 left!

0

37

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

39

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

42

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

43

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

45

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0
