MZ 28 ZT BF (966663701) - Husqvarna Zero-Turn Mower (2011-03) STEERING Parts Diagram

Zero-Turn Mower

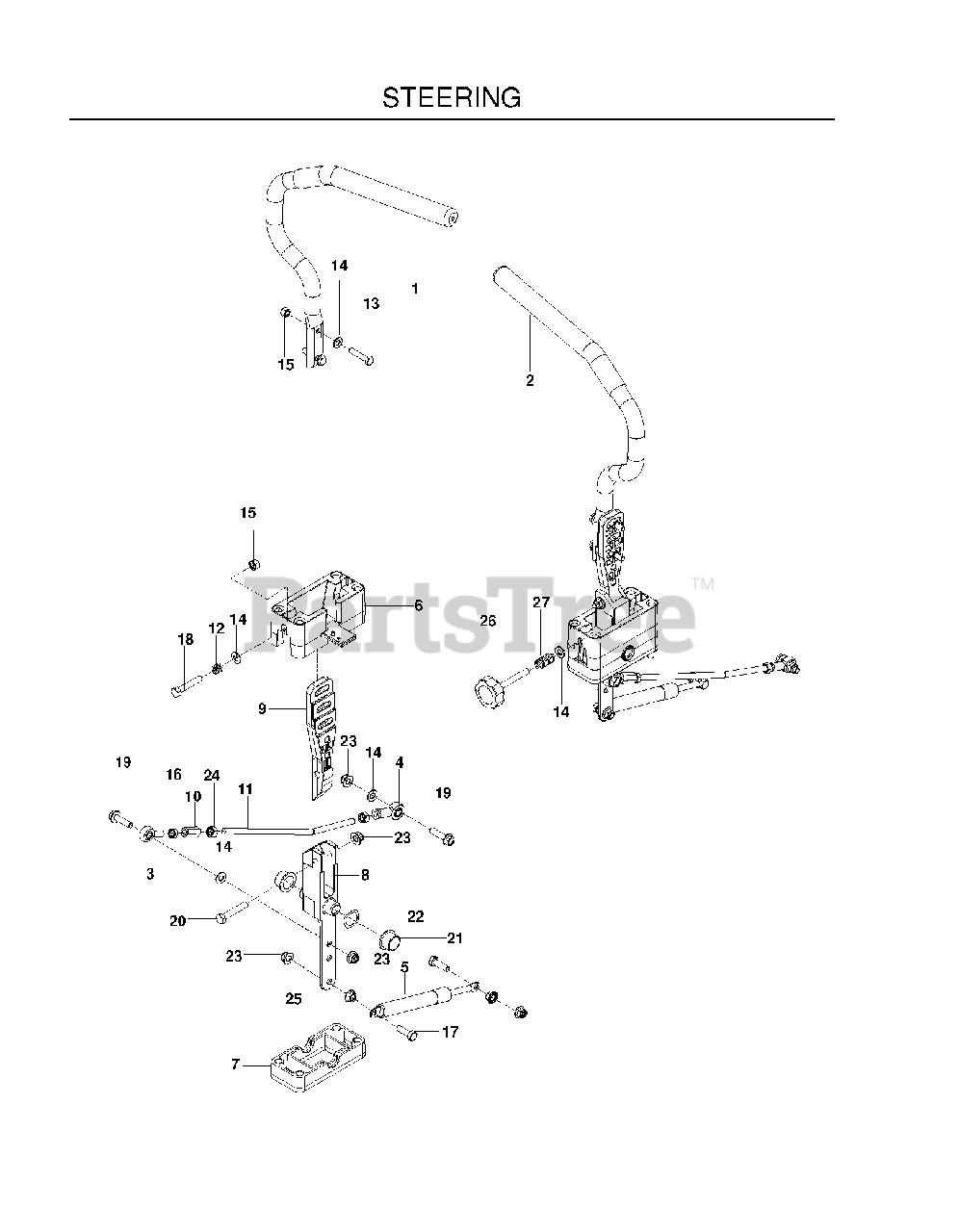

STEERING Parts Diagram

  • Title
1

Husqvarna 539132009

LEVER.DRIVE.W/GRIP.RIGHT

$80.99

$

In Stock, Qty 18

0

2

Husqvarna 539132010

LEVER.DRIVE.W/GRIP.LEFT

$80.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539116690

RB ROD.END.LH
(Superseded to 588692502)

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 539115729

RH ROD END
(Superseded to 579764601)

$9.49

$

Usually ships in 3-10 days

0

5

$66.99

$

In Stock, only 3 left!

0

6

Husqvarna 539131517

BLOCK, UPPER

$30.99

$

In Stock, only 1 left!

0

7

Husqvarna 539131519

BLOCK, LOWER

$15.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522452901

PIVOT.SECTION.DRIVE.CONTROL

$31.99

$

In Stock, Qty 11

0

9

Husqvarna 539131521

MOUNT, DR CNTRL HANDLE
(Superseded to 576452801)

$40.99

$

In Stock, only 3 left!

0

10

Husqvarna 539116689

ROD END COUPLER

$

$

Not available

11

Husqvarna 574811401

ROD, CONTROL

$14.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

14

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539108394

HCS 5/16-18X1-3/4 TPBLT

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

21

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 5

0

22

Husqvarna 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0

23

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

24

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

$22.99

$

In Stock, only 1 left!

0
