MZ 28 ZT BF (966663701) - Husqvarna Zero-Turn Mower (2011-03) MOWER LIFT / DECK LIFT Parts Diagram

Zero-Turn Mower

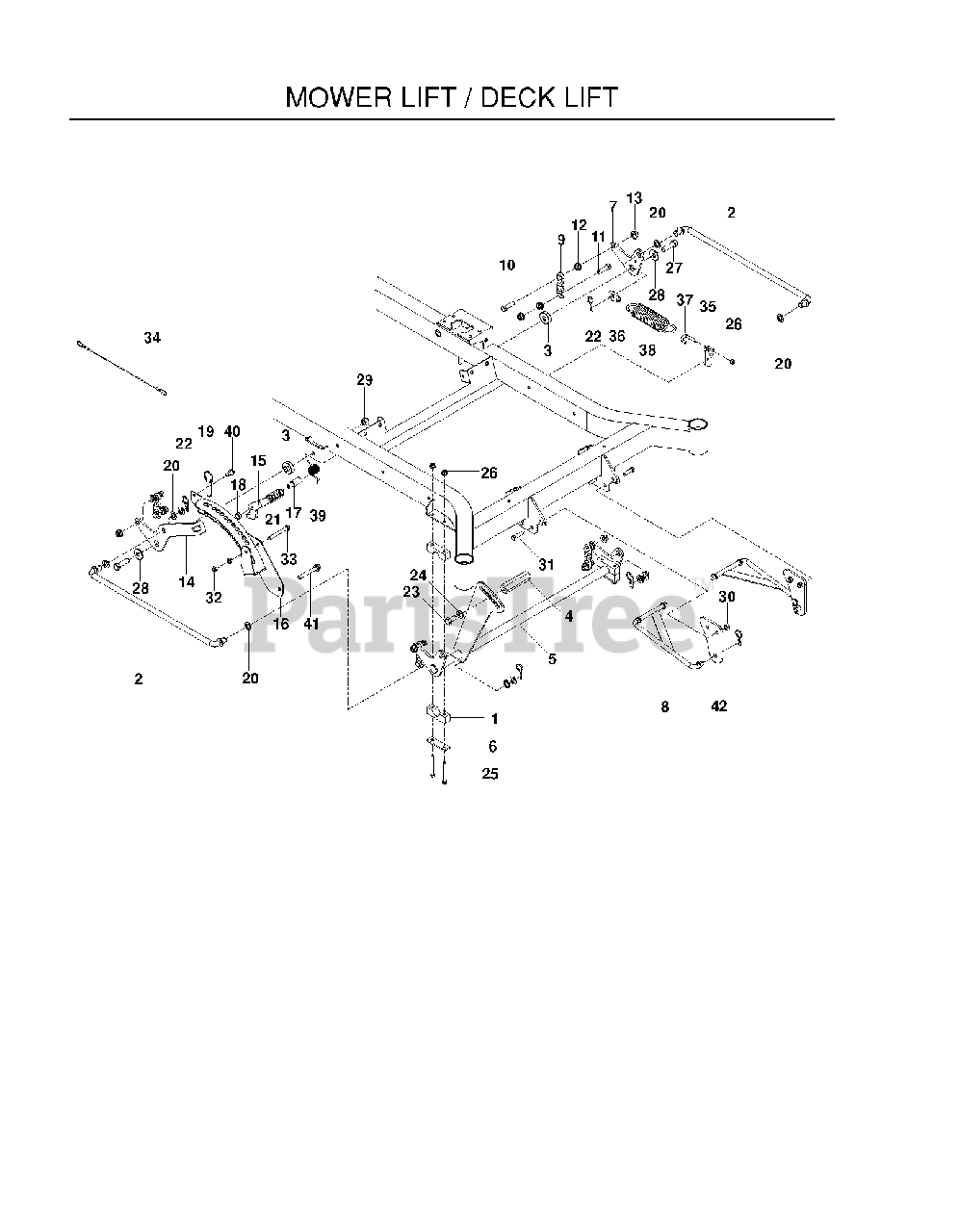

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539110808

CROSS LINK

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539118937

IDLER SPACER

$13.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539131556

PEDAL, FOOT, HEX

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539131509

SHAFT, FT, LIFT - BLK

$

$

Not available

6

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

7

Husqvarna 539131897

BELLCRANK, RR, LIFT

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112223

STRUT LINKAGE

$37.99

$

In Stock, Qty 5

0

9

Husqvarna 539109693

LIFT CHAIN - 3 LINK

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

13

Husqvarna 539132019

NUT 7/16-14 HEX WHIZ LK
(Superseded to 873900700)

$7.49

$

In Stock, Qty 14

0

14

Husqvarna 539131853

BELLCRANK, RR, RT

$31.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539131566

LATCH, TRANSPORT

$27.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539131850

HEIGHT, ADJUST, DECK

$84.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539131860

PIVOT, LATCH, TRANSPORT

$24.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539131861

SPACER, .3

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539132182

PIN, 1/2 X 1 1/2, DETENT RING

$

$

Not available

20

Husqvarna 539991043

BUSHING

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539132851

GRIP, TRANSPORT-RELEASE

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539115501

PIN, COTTER 1 3/4

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990646

HHCS 1/2-13 X 1

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102843

WASHER, 7/16 DISC SPRING
(Superseded to 539115528)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

26

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

27

Husqvarna 539108181

HCS 1/2-13 X 1 3/4 GR 8

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

29

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

33

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 11

0

34

Husqvarna 539105059

LANYARD

$10.99

$

In Stock, only 1 left!

0

35

Husqvarna 539131791

MOUNT, SPRING

$12.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539131792

TAB, SPRING

$56.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539112896

J-BOLT

$

$

Not available

38

Husqvarna 539102642

SPRING

$31.99

$

In Stock, only 1 left!

0

39

Husqvarna 539132734

SPRING, TORSION

$

$

Not available

40

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

41

Husqvarna 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

42

Husqvarna 539132017

MOUNT, STRUT

$31.99

$

Usually ships in 3-10 days

0
