MZ 28 ZT BF (966663701) - Husqvarna Zero-Turn Mower (2011-03) IGNITION SYSTEM Parts Diagram

Zero-Turn Mower

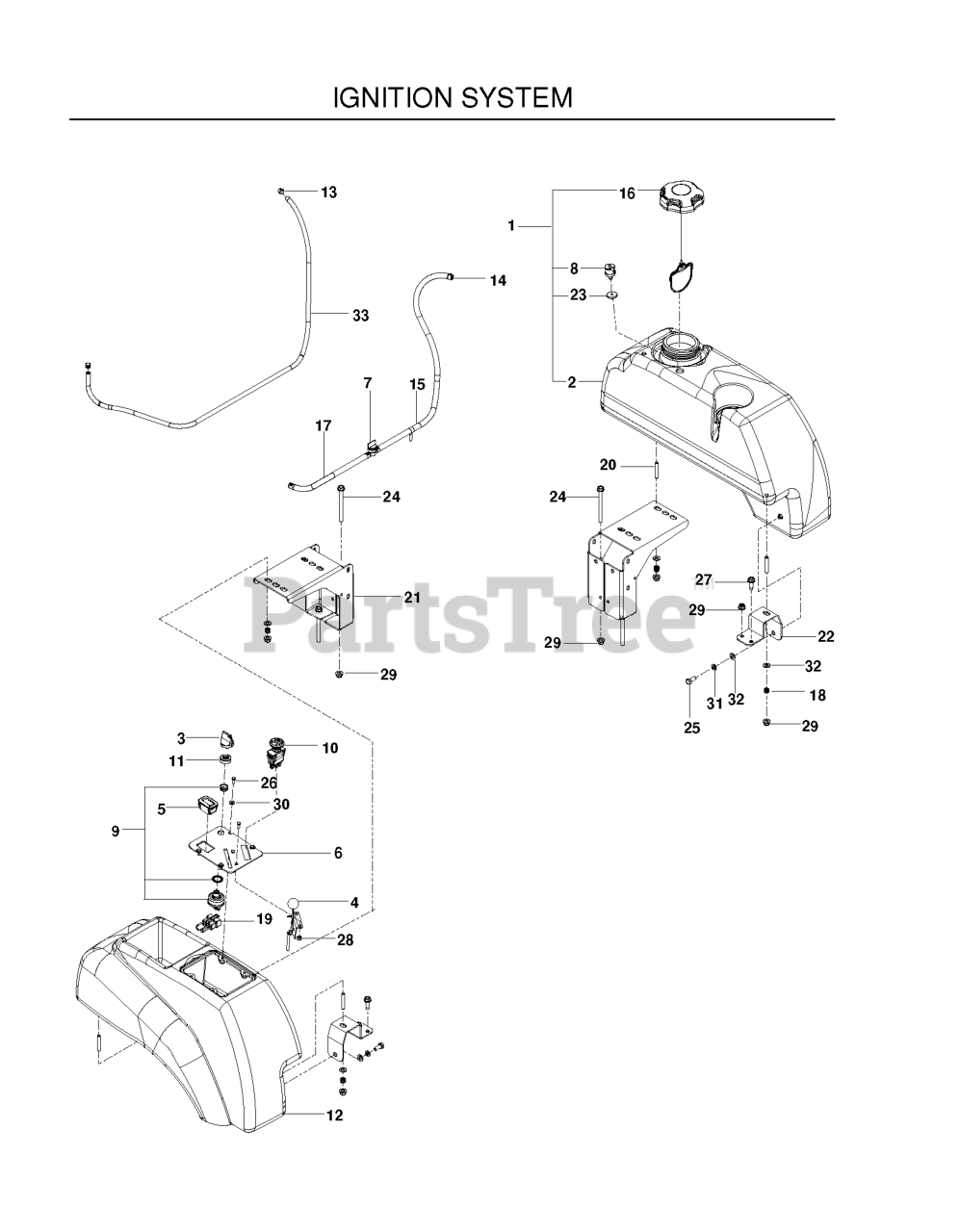

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 576370102

ASSEMBLY, LT TANK, EPA GRAY

$

$

Not available

2

Husqvarna 576370101

TANK, FUEL, LT-EPA
(Superseded to 576370102)

$

$

Not available

3

Husqvarna 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539112438

THROTTLE CABLE

$

$

Not available

5

Husqvarna 576179401

HOUR METER

$34.99

$

In Stock, Qty 6

0

6

Husqvarna 574841202

PLATE, CONSOLE, BLK
(Superseded to 592877402)

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

8

Husqvarna 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 16

0

9

Husqvarna 574455401

SWITCH, IGNITION, INDAK

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

11

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539107593

FENDER CONSOLE

$157.99

$

Usually ships in 3-10 days

0

13

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

14

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 539107765

HOSE, FUEL .25 ID X 26"

$7.99

$

In Stock, only 2 left!

0

16

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539932956

GAS LINE 10"

$

$

Not available

18

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 575321001

PLUG, TIMER

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

21

Husqvarna 575533602

MOUNT, TANK, ZT BLK

$74.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539131671

SUPPORT, TANK, BLK

$68.99

$

In Stock, only 1 left!

0

23

Husqvarna 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 10

0

24

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539113226

RP BLT 5/16-18 X 1 THRD FORM D
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

29

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 539105408

WASHER #10

$3.99

$

In Stock, Qty 12

0

31

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

32

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

33

Husqvarna 576660602

HOSE, VAPOR 3/16 X 48"

$31.99

$

In Stock, only 1 left!

0

Husqvarna 539976856

TIE, PLASTIC

Note: NOT SHOWN

$5.99

$

Usually ships in 3-10 days

0
