MZ 28 T CE (966613201-03) - Husqvarna Zero-Turn Mower (2014-12) HYDRAULIC PUMP - MOTOR Parts Diagram

Zero-Turn Mower

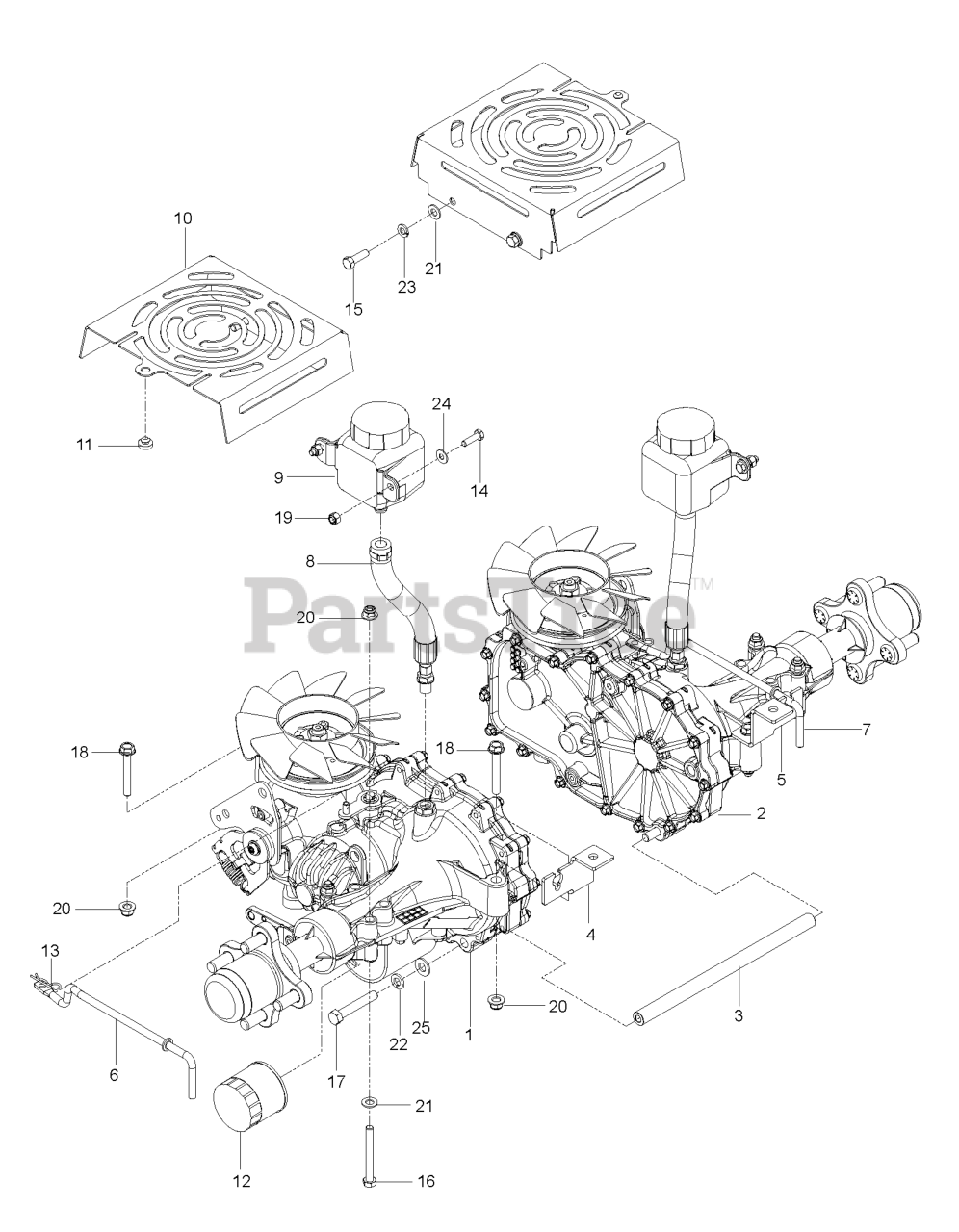

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title
15

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

25

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 574233801

HHFS 5/16-18 X 2.25 GD 5

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 574892101

HOSE ASSY, EXPANSION

$62.99

$

In Stock, only 1 left!

0

Husqvarna 580906202

WHEEL SPACER ZT-3400 CARLISLE

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

14

Husqvarna 539990643

HCS 1/4-20X7/8 GR5

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539131618

LINKAGE, RIGHT BYPASS

$9.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 575017002

BRACKET, TRANS, RT BLACK
(Superseded to 593278902)

$7.49

$

In Stock, only 2 left!

0

19

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

20

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 539108551

HCS 3/8-16X2-1/4 LOC PATCH GR8

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

12

Husqvarna 539113466

HG_FILTER, ZT4800 52114

$60.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539131616

LINKAGE, LEFT BYPASS

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

13

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

2

Husqvarna 574569102

HG_TRANS, ZT-3400, RT

$1173.99

$

Usually ships in 3-10 days

0

4

Husqvarna 575017102

BRACKET.TRANS.LT.BLACK
(Superseded to 593279002)

$7.49

$

Usually ships in 3-10 days

0

3

Husqvarna 574868501

TUBE, SPACER, 3400

$

$

Not available

9

Husqvarna 574811301

TANK.EXPANSION.350ML 71328

$66.99

$

In Stock, only 1 left!

0

10

Husqvarna 575778202

SHIELD, FAN, BLK
(Superseded to 584994202)

$13.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574569101

HG_TRANS, ZT-3400, LT

$1173.99

$

Usually ships in 3-10 days

0
