MZ 25 (968999780) - Husqvarna Zero-Turn Mower (2010-03) WHEELS & TIRES 2 Parts Diagram

Zero-Turn Mower

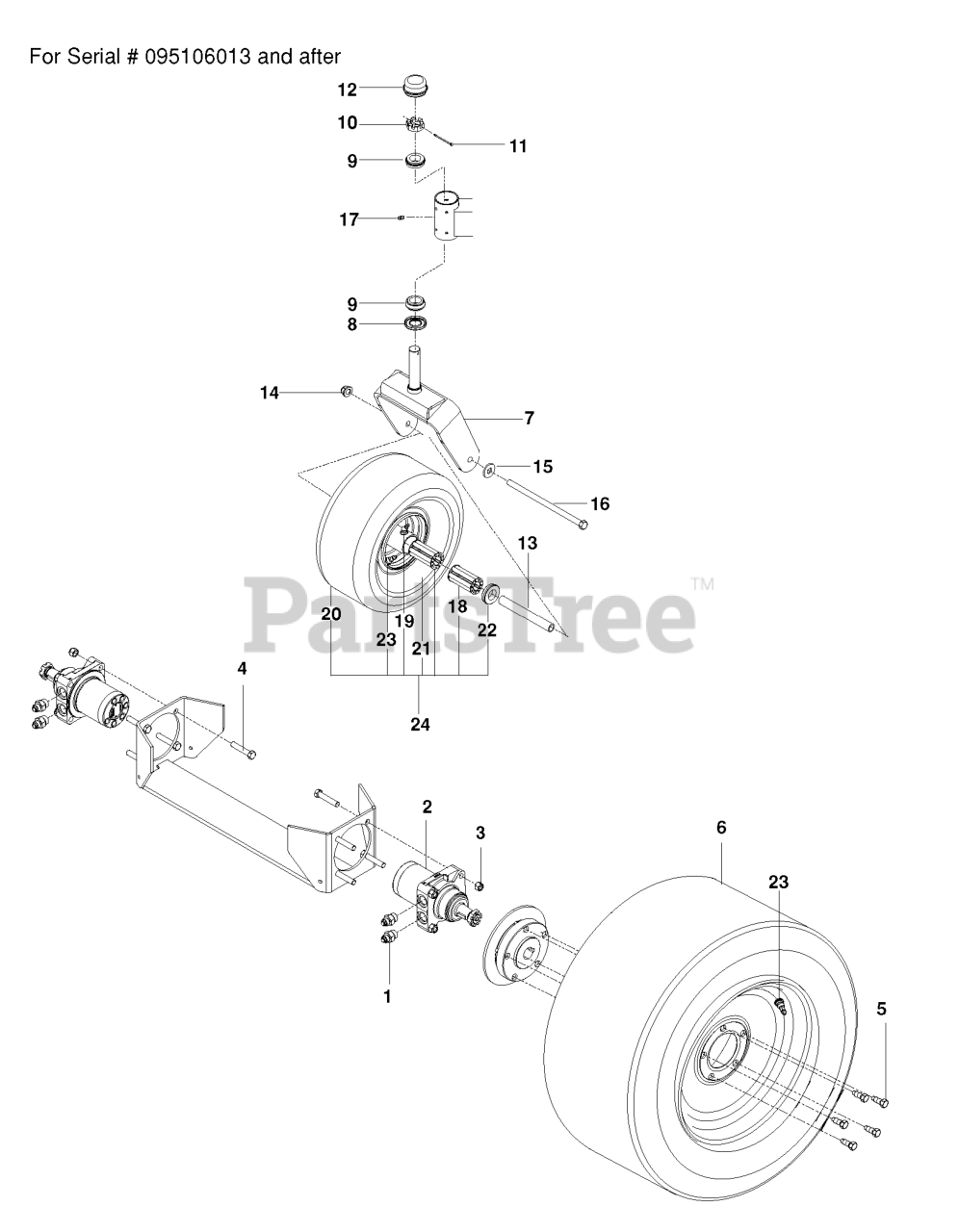

WHEELS & TIRES 2 Parts Diagram

  • Title

11

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

16

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

19

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

23

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 539102852

NUT 1"C HEX SLOTTED

$

$

Not available

4

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

5

Husqvarna 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

3

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 539102851

SEAL

$7.99

$

In Stock, only 4 left!

0

2

Husqvarna 539114523

WHEEL MOTOR, TJ

$

$

Not available

20

Husqvarna 575622201

TIRE.13X6.50-6.4.PLY

$

$

Not available

14

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

6

Husqvarna 532140556

WHEEL.R.TS.23X10.5-12.C.MS

$

$

Not available

1

Husqvarna 539101239

CONNECTOR, STRAIGHT
(Superseded to 539101237)

$12.99

$

In Stock, only 2 left!

0

7

Husqvarna 575329202

YOKE.CASTER.ORANGE
(Superseded to 586921902)

$62.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539102543

TAPERED ROLLER BRG

$40.99

$

In Stock, only 1 left!

0

22

Husqvarna 539102484

BEARING RETAINER

$5.99

$

In Stock, only 1 left!

0

18

Husqvarna 539105307

ROLLER BEARING-CAGED 3 1/4'

$11.99

$

In Stock, only 2 left!

0

21

Husqvarna 575622101

WHEEL.6X4.50.CASTER.SILVER

$84.99

$

Usually ships in 3-10 days

0

13

Husqvarna 575334901

SPACER, PIVOT

$24.99

$

In Stock, Qty 8

0

17

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 575348701

TIRE.ASSEM.CASTER.13X6.5-6.SIL
(Superseded to 581199501)

$194.99

$

In Stock, Qty 5

0
