MZ 25 (968999780) - Husqvarna Zero-Turn Mower (2010-03) STEERING Parts Diagram

Zero-Turn Mower

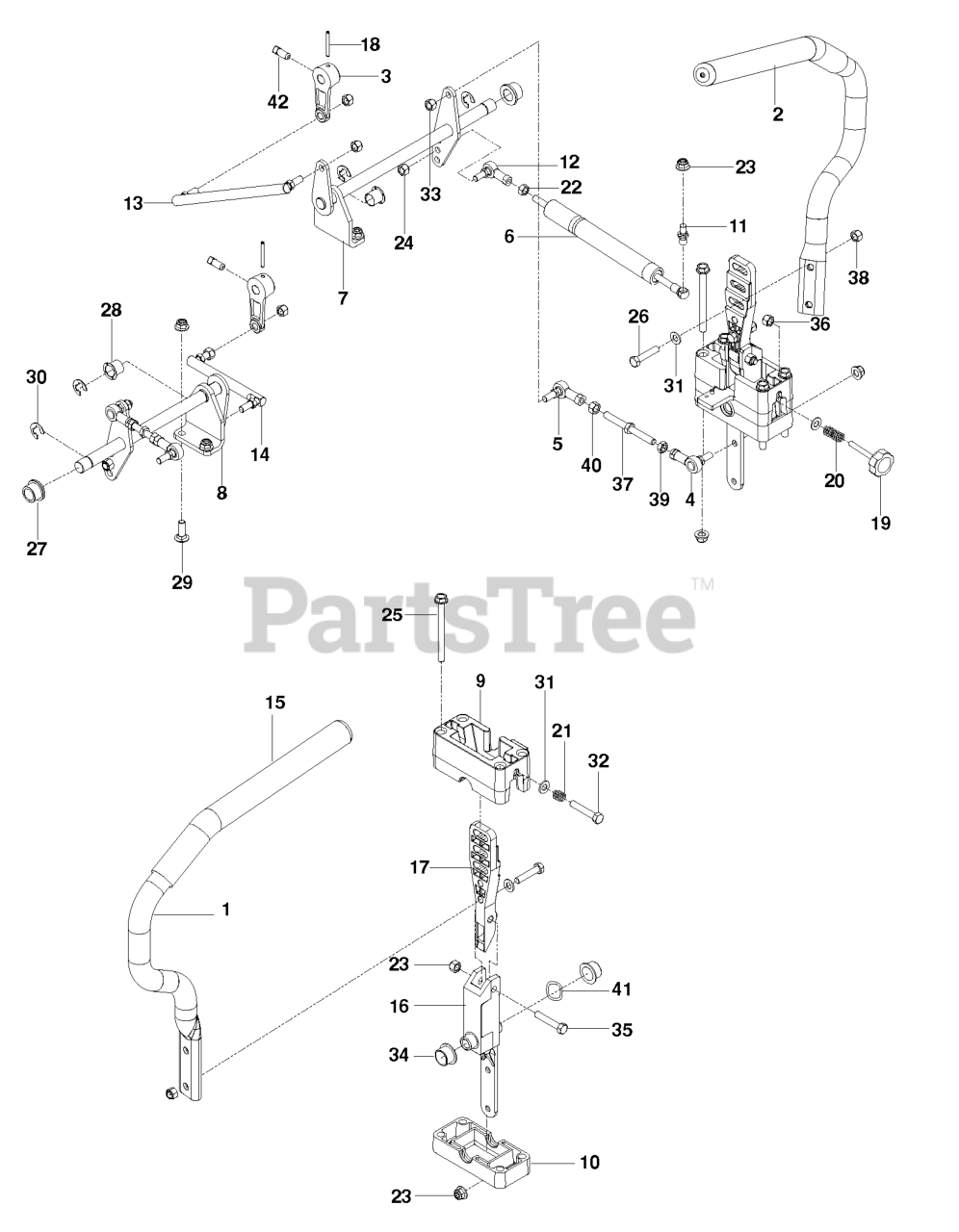

STEERING Parts Diagram

  • Title

22

Husqvarna 539127046

NUT M8 X 1.25 STD HEX

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0

36

Husqvarna 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

29

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 522773701

ARM, PUMP

$218.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539110604

SPHERICAL ROD END, LH

$24.99

$

In Stock, only 1 left!

0

12

Husqvarna 539131749

ROD END

$10.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539108743

NUT 5/16-24 CNTRLK

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539132168

BUSHING, FLANGED, 5/8

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539131550

JACK SCREW

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 539132169

BUSHING, CLIP, 5/8

$

$

Not available

35

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

5

Husqvarna 539110603

SPHERICAL ROD END, RH

$40.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539108394

HCS 5/16-18X1-3/4 TPBLT

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539132009

LEVER.DRIVE.W/GRIP.RIGHT

$80.99

$

In Stock, Qty 18

0

11

Husqvarna 539110607

STUD.BALL.10MM

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539118496

NUT M8 NYLOC

$12.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539131559

PIN, SPIRAL, 5/32 X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539131551

LINK, MOTION, LT

$30.99

$

In Stock, only 1 left!

0

19

Husqvarna 539131799

KNOB

$

$

Not available

34

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 5

0

10

Husqvarna 539131519

BLOCK, LOWER

$15.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539131552

LINK, MOTION, RT

$

$

Not available

2

Husqvarna 539132010

LEVER.DRIVE.W/GRIP.LEFT

$80.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539131520

PIVOT SECTION, DR CNTRL
(Superseded to 522452901)

$31.99

$

In Stock, Qty 11

0

31

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539101224

SPRING

$22.99

$

In Stock, only 1 left!

0

23

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

40

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539131521

MOUNT, DR CNTRL HANDLE
(Superseded to 576452801)

$40.99

$

In Stock, only 3 left!

0

9

Husqvarna 539131517

BLOCK, UPPER

$30.99

$

In Stock, only 1 left!

0

42

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, only 4 left!

0

30

Husqvarna 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539132163

CONTROL WLDMT, LT

$47.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539132164

CONTROL WLDMT, RT

$47.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539131658

DAMPENER W/SPRING

$103.99

$

In Stock, only 1 left!

0

15

Husqvarna 539130894

GRIP - DRIVE LEVER 12"

$9.99

$

In Stock, only 3 left!

0

39

Husqvarna 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0
