MZ 25 (968999780) - Husqvarna Zero-Turn Mower (2007-11) Engine Plate Parts Diagram

Zero-Turn Mower

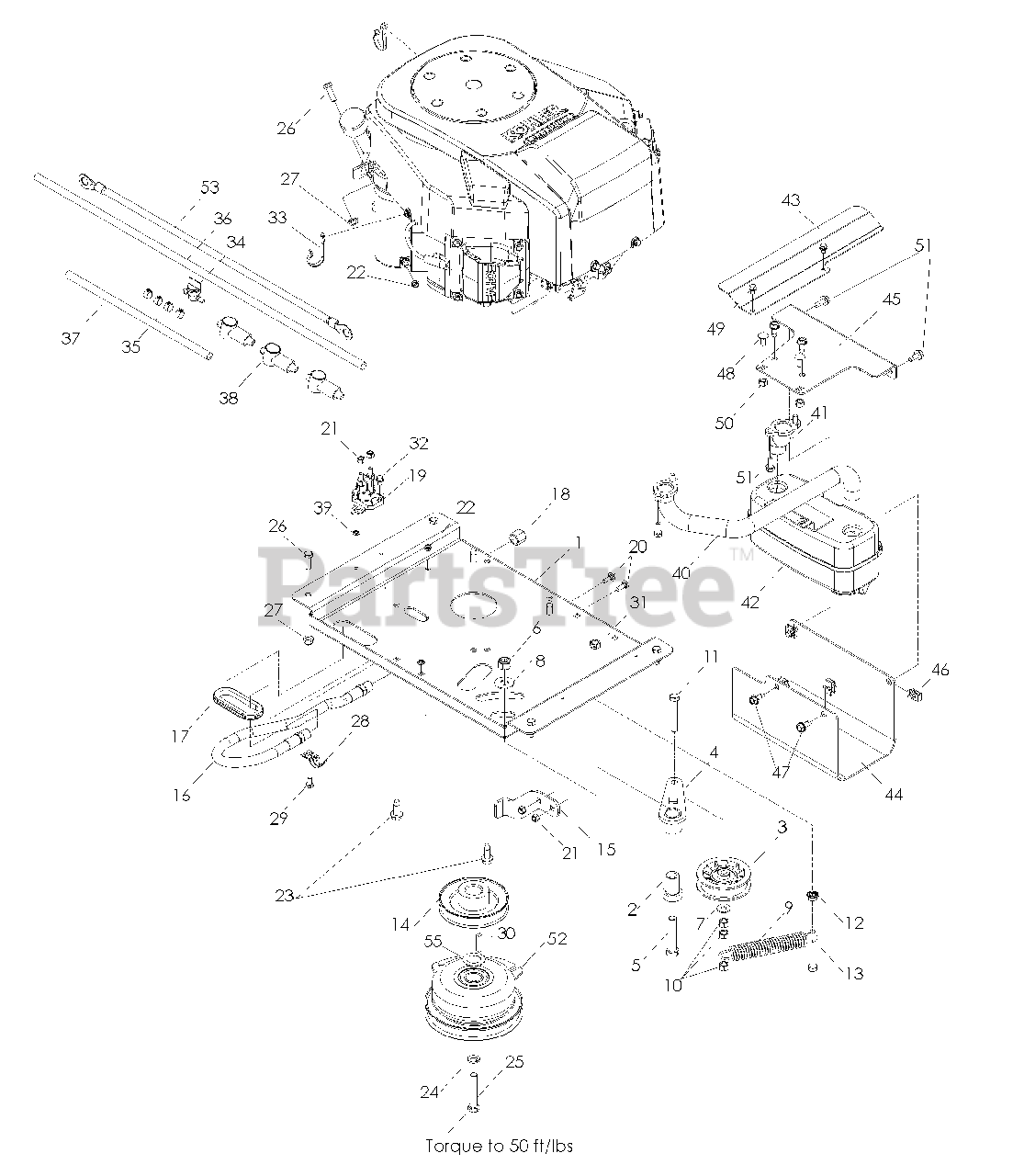

Engine Plate Parts Diagram

  • Title

1

Husqvarna 539131726

PLATE, ENGINE

$84.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539110311

IDLER PULLEY

$17.99

$

In Stock, Qty 20+

0

4

Husqvarna 539112092

IDLER ARM WLDMT
(Superseded to 583593901)

$13.99

$

In Stock, only 3 left!

0

5

Husqvarna 539108346

HCS 1/2-13 x 2 1/2

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101331

NUT 1/2 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 539990692

WASHER, 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539990550

WASHER, 1/2 STD FLT

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539101977

TRACTION SPRING

$17.99

$

In Stock, Qty 10

0

10

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539110122

HCS 3/8-16 x 2 1/2 TPBLT

$3.99

$

In Stock, only 1 left!

0

12

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539102612

HCS 3/8-16 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

14

Husqvarna 539109639

PULLEY

$

$

Not available

15

Husqvarna 539131728

TIE DOWN, CLUTCH

$

$

Not available

16

Husqvarna 539131729

DRAIN, OIL

$24.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539107210

GROMMET

$6.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101364

PLUG-OIL

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990074

RHSNB 1/4-20 x 3/4 GR2 ZN
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

22

Husqvarna 539108120

NUT 1/4-20 HEX THIN NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

23

Husqvarna 532120616

BOLT 3/8-16 x 1 THD FRM
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

24

Husqvarna 539990247

WASH 7/16 SLW

$

$

Not available

25

Husqvarna 539991120

HCS 7/16-20 x 2 1/2

$6.99

$

In Stock, Qty 8

0

26

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

28

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

29

Husqvarna 539990071

HCS 1/4-20 x 1/2

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539912757

KEY 1/4 SQ x 1 1/4

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990546

NUT 3/8-16 HEX CNTRLK

$

$

Not available

32

Husqvarna 539990302

SCREW 1/4-20 x 3/8 THD FRM

$

$

Not available

33

Husqvarna 539107098

CLAMP

$14.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

35

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

36

Husqvarna 539105382

FUEL LINE-30"

$13.99

$

In Stock, only 2 left!

0

37

Husqvarna 539108212

FUEL LINE-13"

$2.49

$

In Stock, Qty 5

0

38

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna 539990053

WASHER 1/4 INT TOOTH LK

$3.99

$

In Stock, only 3 left!

0

40

Husqvarna 539131739

MANIFOLD, FT

$46.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539131740

MANIFOLD, RR

$

$

Not available

42

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 4 left!

0

43

Husqvarna 539131758

SHIELD, HEAT

$21.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539131769

GUARD, MUFFLER

$51.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539131771

MOUNT, MUFFLER

$66.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 12

0

47

Husqvarna 539107475

BOLT 5/16-18 x 3/4 THD FRM

$6.49

$

In Stock, only 4 left!

0

48

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 539990302

SCREW 1/4-20 x 3/8 THD FRM

$

$

Not available

50

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 539976934

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 539132732

CLUTCH, MODELS: 968999717, 968999720, 968999748

$

$

Not available

53

Husqvarna 539132733

CLUTCH, MODELS: 968999718, 968999719, 968999721, 968999749, 968999780

$485.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539132412

CABLE, POSITIVE

$9.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539115675

WASHER, 1.025ID X 1.64OD

$

$

Not available

55

Husqvarna 539107516

PIGTAIL

Note: NOT SHOWN

$

$

Not available
