MZ 2142 (17AC2ACS058) - Murray 42" Zero-Turn Mower (2013) Operator's Platform Parts Diagram

42" Zero-Turn Mower

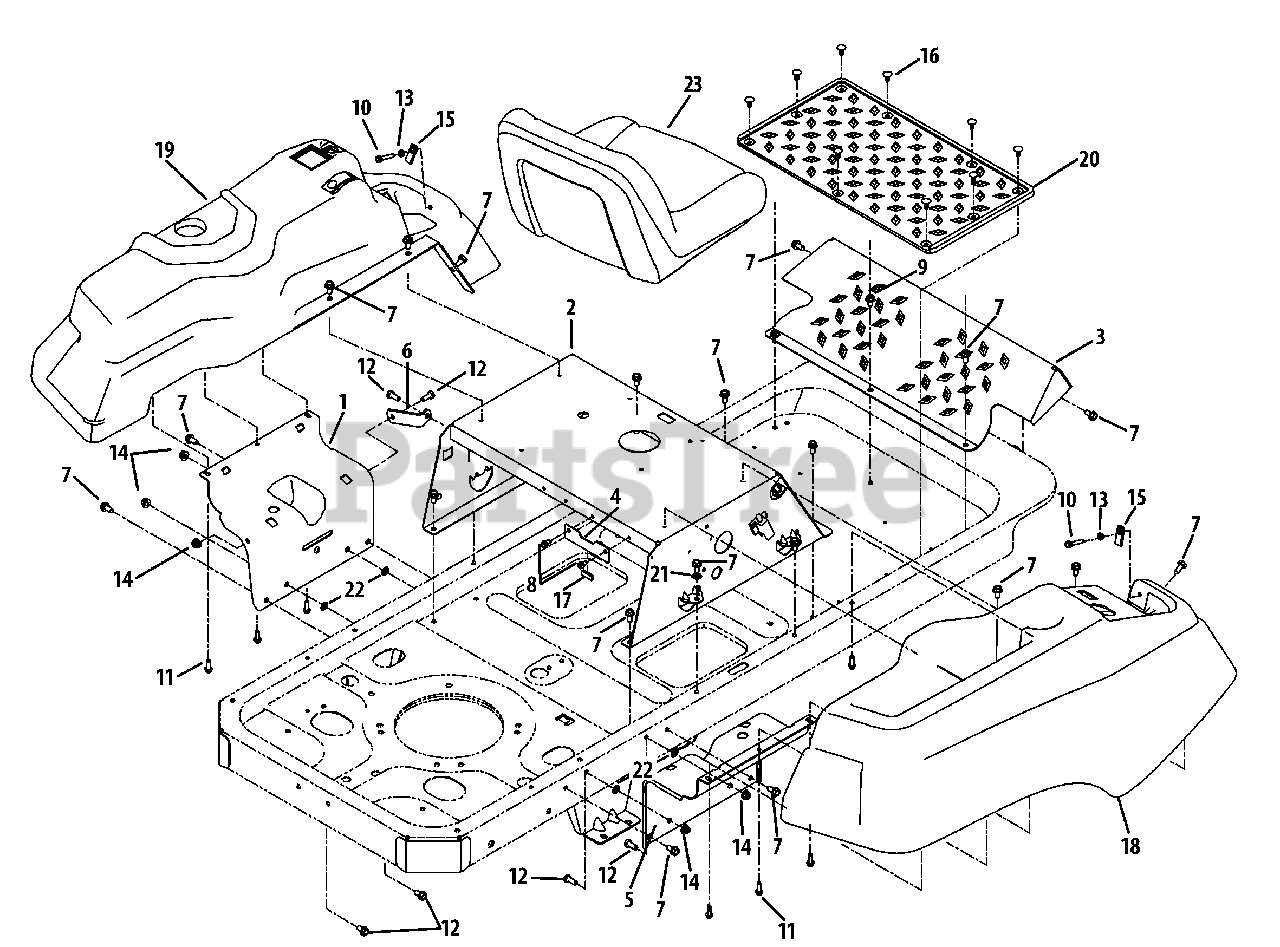

Operator's Platform Parts Diagram

  • Title

1

MTD 603-04564-4066

Console Bracket Assembly

$

$

Not available

2

MTD 603-04946-4066

Seat Frame Assembly

$

$

Not available

3

MTD 703-05373B-4066

Foot Rest Bracket

$

$

Not available

4

MTD 703-05894-0637

Battery Hold-Down Bracket

$29.99

$

In Stock, only 2 left!

0

5

MTD 703-06451-4066

Console Mount Bracket

$

$

Not available

6

MTD 703-06623-0637

Fuel Tank Support Bracket

$

$

Not available

7

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0604A

Hex Washer Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0778

Hex Washer Screw, 1/4-20 x 1.500

$4.49

$

In Stock, only 2 left!

0

11

MTD 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

12

MTD 710-3008

Hex Screw, 5/16-18 x .75 (TB)

$4.49

$

In Stock, Qty 20+

0

13

MTD 912-0298

Jam Nut, 1/4-20

$6.49

$

Usually ships in 3-6 days

0

14

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04092

Speed Nut, 1/4-20

$5.99

$

In Stock, only 2 left!

0

16

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

17

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

18

MTD 731-06233

RH Console

$

$

Not available

19

MTD 731-06263B

LH Console

$117.99

$

Usually ships in 3-6 days

0

20

MTD 735-04082C

Foot Pad

$50.99

$

Usually ships in 3-6 days

0

21

MTD 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, only 3 left!

0

22

MTD 726-0201

Speed Nut, .3125

$6.99

$

Usually ships in 3-6 days

0

23

MTD 757-04098

High-Back Seat Arm
(Superseded to 757-05231)

$285.99

$

Usually ships in 3-6 days

0
