MZ 2142 (17AC2ACS058) - Murray 42" Zero-Turn Mower (2013) Mower Deck Parts Diagram

42" Zero-Turn Mower

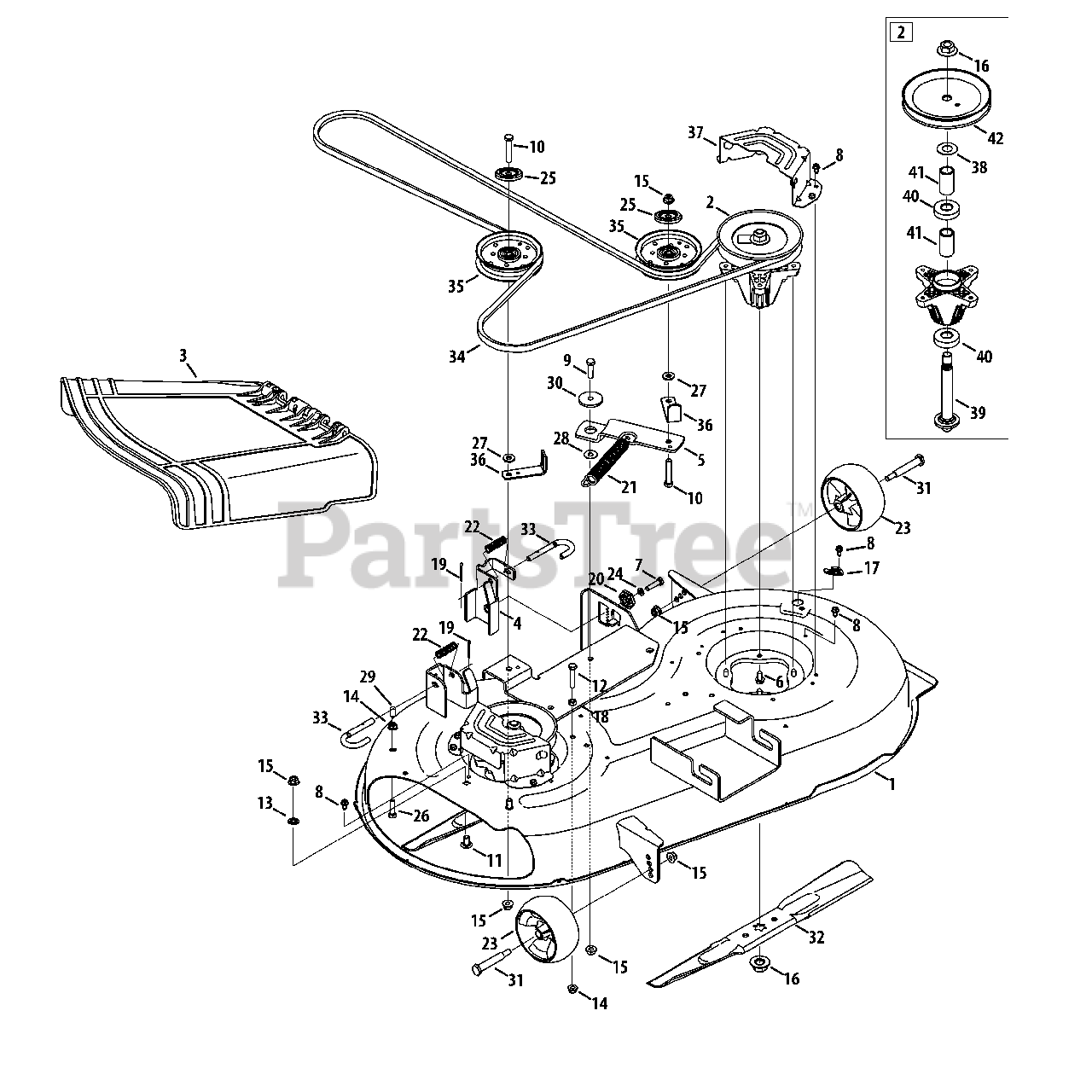

Mower Deck Parts Diagram

  • Title

1

MTD 903-04860A-4066

Deck Housing
(Superseded to 903-04860A-0637)

$816.99

$

Usually ships in 3-6 days

0

2

MTD 918-04822A

Spindle Assembly
(Superseded to 918-04822B)

$121.99

$

Usually ships in 3-6 days

0

3

MTD 631-04288

Discharge Chute Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

4

MTD 683-0254B-4066

Deck Lift Bracket
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

5

MTD 703-08336C-0637

Pivot Idler Bracket
(Superseded to 703-08336E)

$31.99

$

In Stock, only 1 left!

0

6

MTD 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0599

Hex Washer Head Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

10

MTD 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 7

0

11

MTD 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 15

0

13

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

MTD 783-06464

Deck Wash Plug

$4.49

$

In Stock, only 3 left!

0

18

MTD 912-3010

Hex Nut, 5/8-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

20

MTD 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 19

0

21

MTD 732-0459C

Extension Spring, .94 Dia. x 6.74

$18.99

$

Usually ships in 3-6 days

0

22

MTD 732-04652

Compression Spring, .535 x 1.751

$6.99

$

In Stock, only 2 left!

0

23

MTD 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

24

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

25

MTD 783-07236

Pulley Cap

$5.49

$

In Stock, only 4 left!

0

26

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, only 4 left!

0

27

MTD 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

28

MTD 936-0344

Flat Washer, .385 x 1.00 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

29

MTD 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

30

MTD 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

31

MTD 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

32

MTD 942-04308

Blade, 2 in 1, 21.23
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

33

MTD 747-1116

Deck Hanger Rod

$12.99

$

Usually ships in 3-6 days

0

34

MTD 954-04137A

V-Belt
(Superseded to 954-04137B)

$44.99

$

In Stock, Qty 6

0

35

MTD 756-04129B

Idler Pulley, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

36

MTD 783-06368A-4066

Bracket, Belt Guard
(Superseded to 783-06368A-0637)

$21.99

$

In Stock, Qty 20+

0

37

MTD 783-06424A-4066

Belt Cover
(Superseded to 783-06424A-0637)

$10.99

$

In Stock, Qty 20+

0

38

MTD 936-0351

Washer, .760 x 1.50 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

39

MTD 738-1186A

Spindle Shaft

$49.99

$

In Stock, Qty 14

0

40

MTD 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

41

MTD 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

42

MTD 956-1227

Deck Pulley

$26.99

$

In Stock, only 4 left!

0
