MZ 2142 (17AC2ACS058) - Murray 42" Zero-Turn Mower (2013) Electrical Parts Diagram

42" Zero-Turn Mower

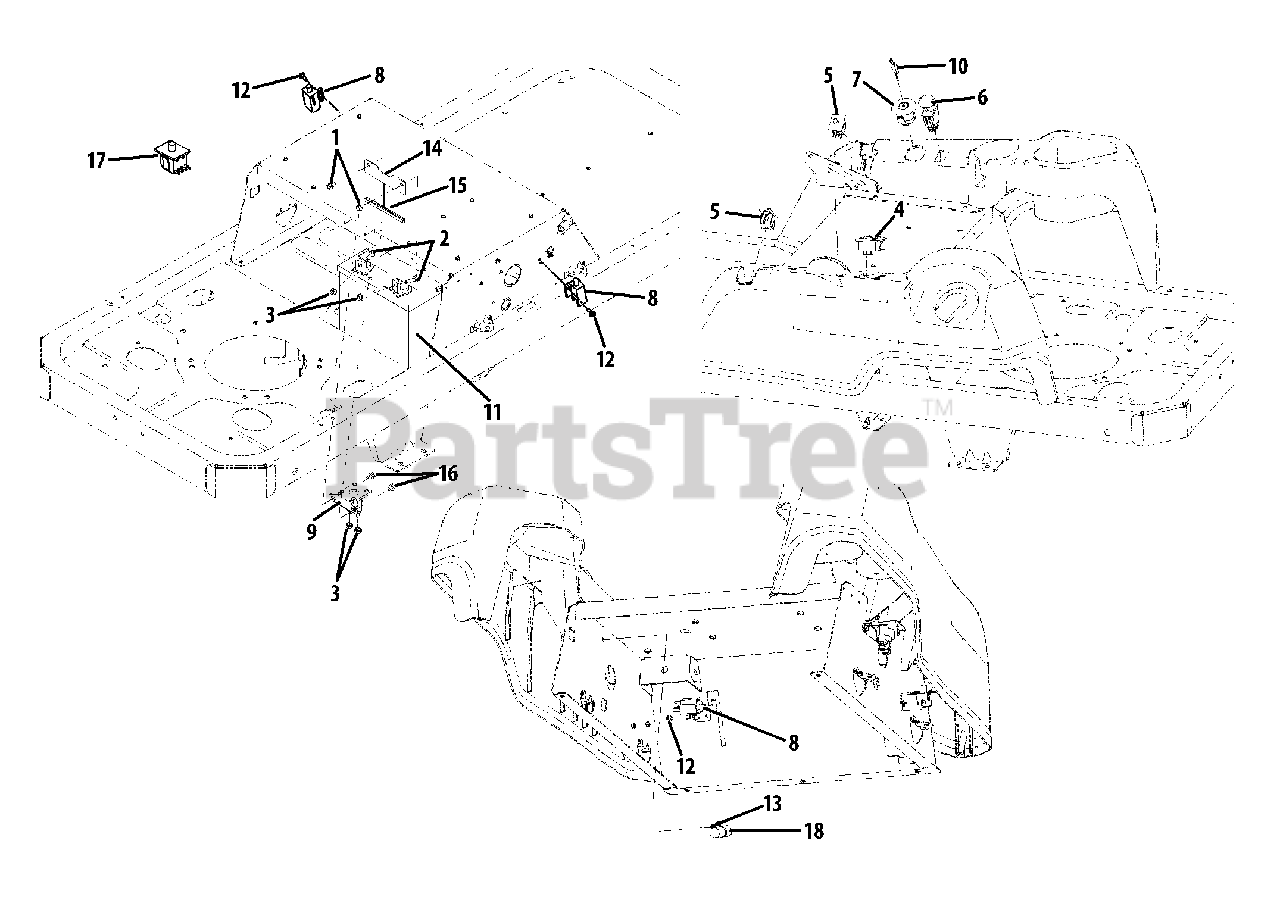

Electrical Parts Diagram

  • Title

1

MTD 710-0599

Hex Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-0271

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

4

MTD 925-04022B

Hour Meter

$146.99

$

In Stock, only 1 left!

0

5

MTD 925-04165

Double Pole - Neutral Switch

$32.99

$

In Stock, only 4 left!

0

6

MTD 925-04174

PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, Qty 5

0

7

MTD 925-04228

Ignition Switch

$39.99

$

In Stock, Qty 20+

0

8

MTD 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

9

MTD 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

10

MTD 625-05002

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

11

MTD 925-1707D

Battery, 235 CCA

$

$

Not available

12

MTD 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

13

MTD 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

14

MTD 703-05894-0637

Battery Hold-down

$29.99

$

In Stock, only 2 left!

0

15

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

16

MTD 710-0653

Hex Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

17

MTD 925-04040

Seat Switch

$36.99

$

In Stock, only 2 left!

0

18

MTD 925-04847C

Wire Harness

$178.99

$

In Stock, only 1 left!

0
