MXUA 21675 EX (881637) - Murray 21" Walk-Behind Mower (2012) Drive Group Parts Diagram

21" Walk-Behind Mower

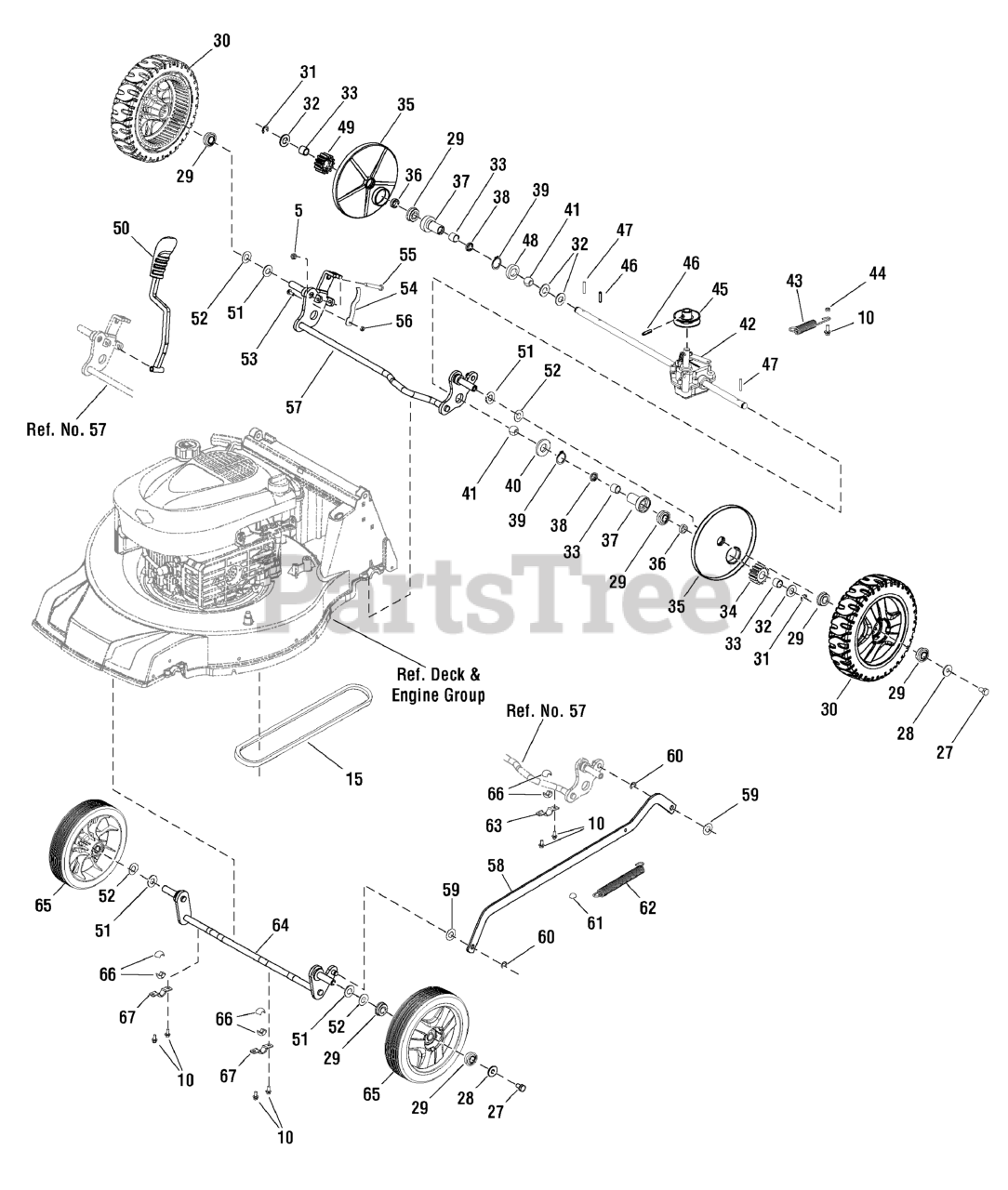

Drive Group Parts Diagram

  • Title

5

Murray 701183YP

NUT, Hex, Nylon Insert, Torque Type

$3.49

$

Usually ships in 2-12 days

0

10

Murray 701187YP

SCREW, Hex Flange, Tapping

$5.99

$

Usually ships in 2-12 days

0

15

Murray 701254YP

V-BELT, Normal, V10 × 783 gates

Note: (Used on 19" Decks)

$29.99

$

Usually ships in 2-12 days

0

15

Murray 701296YP

V-BELT, Common

Note: (Used on 21" Decks)

$36.99

$

Usually ships in 2-12 days

0

27

Murray 701300YP

BOLT

$3.99

$

Usually ships in 2-12 days

0

28

Murray 701198YP

COVER, Wheel

$3.49

$

Usually ships in 2-12 days

0

29

Murray 701199YP

BEARING

$11.99

$

Usually ships in 2-12 days

0

30

Murray 701200YP

WHEEL, Rear, Self-Propelled, 8"

Note: (Used on 19" Decks)

$99.99

$

Usually ships in 2-12 days

0

30

Murray 701301YP

WHEEL, Rear, Self-Propelled, 9"

Note: (Used on 21" Decks)

$104.99

$

Usually ships in 2-12 days

0

31

Murray 701261YP

CHECK RING

$2.99

$

Usually ships in 2-12 days

0

32

Murray 701201YP

WASHER, Anti-Friction

$3.99

$

Usually ships in 2-12 days

0

33

Murray 701202YP

OIL BEARING B

$6.49

$

Usually ships in 2-12 days

0

34

Murray 701203YP

PINION, Left

$23.99

$

Usually ships in 2-12 days

0

35

Murray 701205YP

SHIELD, Dust, Rear

Note: (Used on 19" Decks)

$13.99

$

Usually ships in 2-12 days

0

35

Murray 701302YP

SHIELD, Dust, Rear

Note: (Used on 21" Decks)

$12.99

$

Usually ships in 2-12 days

0

36

Murray 701204YP

SPACER, Main Axle

$4.99

$

Usually ships in 2-12 days

0

37

Murray 701262YP

BEARING SHEATH

$23.99

$

Usually ships in 2-12 days

0

38

Murray 701206YP

RING, Dustproof

$2.99

$

Usually ships in 2-12 days

0

39

Murray 701263YP

RING, Elastic, For A-form Axle

$2.99

$

Usually ships in 2-12 days

0

40

Murray 701264YP

WASHER, Left Bearing Bracket

$6.99

$

Usually ships in 2-12 days

0

41

Murray 701207YP

BALL BEARING, Nylon

$4.49

$

Usually ships in 2-12 days

0

42

Murray 701265YP

TRANSMISSION, Single Speed

Note: (Used on 19" Decks)

$364.99

$

Usually ships in 2-12 days

0

42

Murray 701303YP

TRANSMISSION, Single Speed

Note: (Used on 21" Decks)

$284.99

$

Usually ships in 2-12 days

0

43

Murray 701208YP

SPRING, Gearbox

$7.99

$

Usually ships in 2-12 days

0

44

Murray 701266YP

RING

$3.99

$

Usually ships in 2-12 days

0

45

Murray 701209YP

PULLEY, Gearbox

$34.99

$

Usually ships in 2-12 days

0

46

Murray 701267YP

PIN, Elastic Cylindrical

$3.99

$

Usually ships in 2-12 days

0

47

Murray 701210YP

PIN, Sliding

$4.49

$

Usually ships in 2-12 days

0

48

Murray 701211YP

SPACER, Transmission

$4.49

$

Usually ships in 2-12 days

0

49

Murray 701212YP

PINION, Right

$27.99

$

Usually ships in 2-12 days

0

50

Murray 701213YP

LEVER, Height Adjust

$33.99

$

Usually ships in 2-12 days

0

51

Murray 701214YP

WASHER, Wheel Axle

$4.49

$

Usually ships in 2-12 days

0

52

Murray 701269YP

WASHER, Spring

$3.49

$

Usually ships in 2-12 days

0

53

Murray 701215YP

BOLT, Hexangular, Full Thread

Note: (Used on 19" Decks)

$3.49

$

Usually ships in 2-12 days

0

53

Murray 701304YP

BOLT, Hexangular, Full Thread

Note: (Used on 21" Decks)

$3.49

$

Usually ships in 2-12 days

0

54

Murray 701216YP

SPRING, Armature

$5.99

$

Usually ships in 2-12 days

0

55

Murray 701217YP

BOLT, Hexangular

$3.49

$

Usually ships in 2-12 days

0

56

Murray 701218YP

NUT, Hex, Nylon Insert, Torque Type

$2.99

$

Usually ships in 2-12 days

0

57

Murray 701219YP

AXLE, Rear

Note: (Used on 19" Decks)

$72.99

$

Usually ships in 2-12 days

0

57

Murray 701305YP

AXLE, Rear

Note: (Used on 21" Decks)

$101.99

$

Usually ships in 2-12 days

0

58

Murray 701268YP

CONNECTING ROD

Note: (Used on 19" Decks)

$27.99

$

Usually ships in 2-12 days

0

58

Murray 701306YP

CONNECTING ROD

Note: (Used on 21" Decks)

$27.99

$

Usually ships in 2-12 days

0

59

Murray 701220YP

WASHER, Nylon

$3.99

$

Usually ships in 2-12 days

0

60

Murray 701270YP

CHECK RING

$3.99

$

Usually ships in 2-12 days

0

61

Murray 701271YP

CHECK CAP

$4.99

$

Usually ships in 2-12 days

0

62

Murray 701272YP

SPRING, Connecting Rod

Note: (Used on 19" Decks)

$11.99

$

Usually ships in 2-12 days

0

62

Murray 701307YP

SPRING, Connecting Rod

Note: (Used on 21" Decks)

$11.99

$

Usually ships in 2-12 days

0

63

Murray 701273YP

BRACKET, Upper Ball Bearing

$6.99

$

Usually ships in 2-12 days

0

64

Murray 701221YP

AXLE, Front, 19"

$82.99

$

Usually ships in 2-12 days

0

64

Murray 701308YP

AXLE, Front, 21"

$75.99

$

Usually ships in 2-12 days

0

65

Murray 701309YP

WHEEL, Front, 8"

$78.99

$

Usually ships in 2-12 days

0

66

Murray 701222YP

BALL BEARING

$4.49

$

Usually ships in 2-12 days

0

67

Murray 701275YP

BRACKET, Front Ball Bearing

$6.99

$

Usually ships in 2-12 days

0
