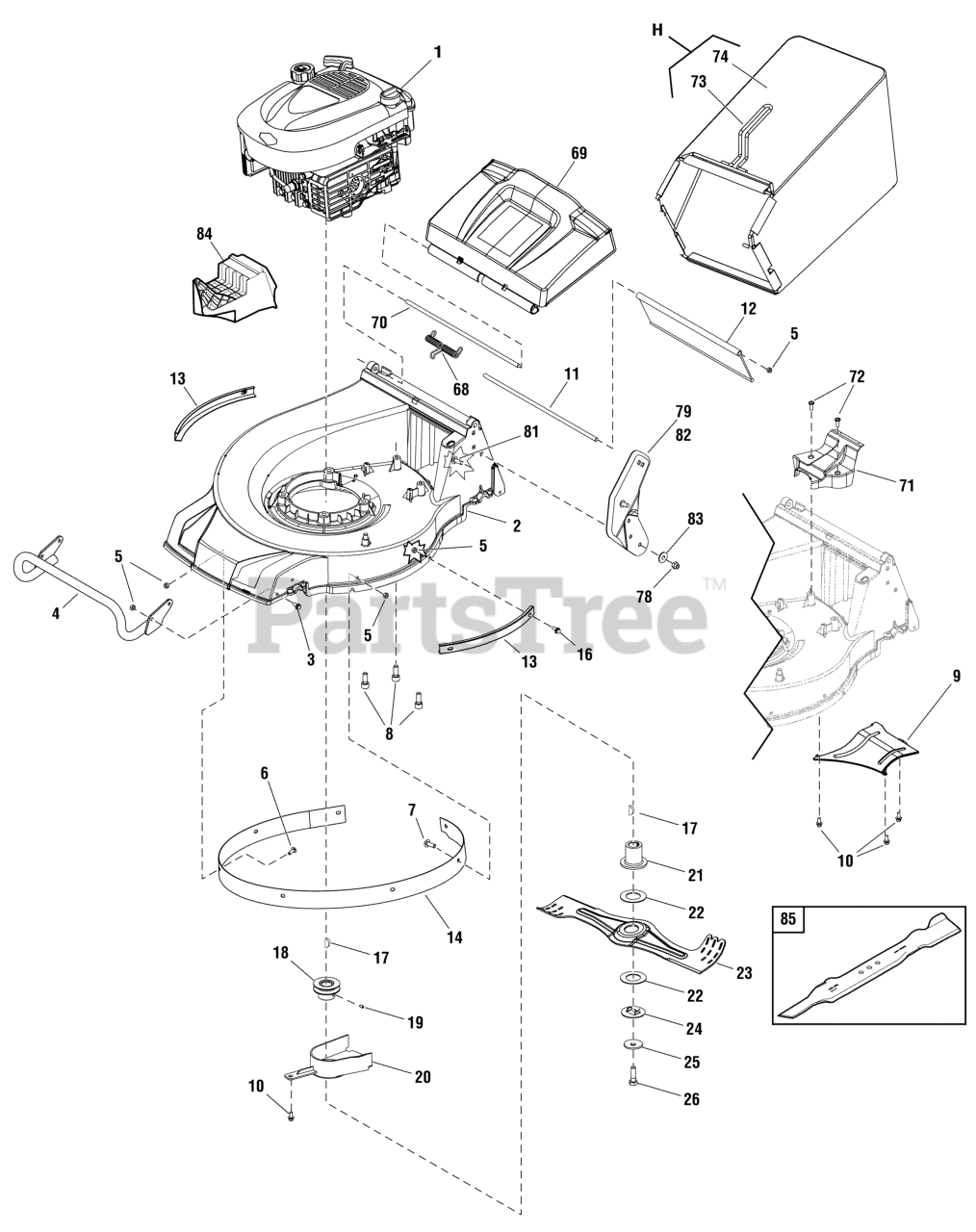

MXUA 21675 EX (881637) - Murray 21" Walk-Behind Mower (2012) Deck & Engine Group (881636_881637) Parts Diagram

21" Walk-Behind Mower

Deck & Engine Group (881636_881637) Parts Diagram

  • Title

1

Murray 126T02-7315-H1

** ENGINE, 6.75 GTP Briggs & Stratton

Note: (Engine Model: 126T02-7315-H1)

$

$

Currently unavailable

2

Murray 701180YP

DECK, 19"

$883.99

$

Usually ships in 2-12 days

0

2

Murray 701291YP

DECK, 21"
(Superseded to 701291BJYP)

$826.99

$

Usually ships in 2-12 days

0

3

Murray 701181YP

BOLT, Hex Flange

$3.99

$

Usually ships in 2-12 days

0

4

Murray 701182YP

BUMPER, 19"

$52.99

$

Usually ships in 2-12 days

0

4

Murray 701328YP

BUMPER, 21"

$56.99

$

Usually ships in 2-12 days

0

5

Murray 701183YP

NUT, Hex, Nylon Insert, Torque Type

$3.49

$

Usually ships in 2-12 days

0

6

Murray 701184YP

SCREW, Truss Head, Cross Recessed

$2.99

$

Usually ships in 2-12 days

0

7

Murray 701185YP

SCREW, Truss Head, Cross Recessed

$3.49

$

Usually ships in 2-12 days

0

8

Murray 701186YP

SCREW, Inner Hexagon, Round Head, Tapping

$5.49

$

In Stock, only 2 left!

0

9

Murray 701252YP

DEFLECTOR, Lower

Note: (Used on 19" Decks)

$58.99

$

Usually ships in 2-12 days

0

9

Murray 701329YP

DEFLECTOR, Lower

Note: (Used on 21" Decks)

$58.99

$

Usually ships in 2-12 days

0

10

Murray 701187YP

SCREW, Hex Flange, Tapping

$5.99

$

Usually ships in 2-12 days

0

11

Murray 701188YP

SHAFT, Rear Deflector, 19"

$13.99

$

Usually ships in 2-12 days

0

11

Murray 701292YP

SHAFT, Rear Deflector, 21"

$13.99

$

Usually ships in 2-12 days

0

12

Murray 701189YP

DEFLECTOR, Rear, 19"

$34.99

$

Usually ships in 2-12 days

0

12

Murray 701293YP

DEFLECTOR, Rear, 21"

$35.99

$

Usually ships in 2-12 days

0

13

Murray 701190YP

SHIELD, Outer

Note: (Used on 19" Decks)

$19.99

$

Usually ships in 2-12 days

0

13

Murray 701294YP

SHIELD, Outer

Note: (Used on 21" Decks)

$19.99

$

Usually ships in 2-12 days

0

14

Murray 701253YP

SHIELD, Inner Ring

Note: (Used on 19" Decks)

$59.99

$

Usually ships in 2-12 days

0

14

Murray 701295YP

SHIELD, Inner Ring

Note: (Used on 21" Decks)

$59.99

$

Usually ships in 2-12 days

0

16

Murray 701191YP

BOLT, Hex Flange

Note: (Used on 19" Decks)

$3.49

$

Usually ships in 2-12 days

0

16

Murray 701297YP

BOLT, Hex Flange

Note: (Used on 21" Decks)

$3.99

$

Usually ships in 2-12 days

0

17

Murray 701192YP

KEY, Woodruff

$3.99

$

Usually ships in 2-12 days

0

18

Murray 701193YP

PULLEY, Engine

$58.99

$

Usually ships in 2-12 days

0

19

Murray 701298YP

SCREW, Inner Hexagon Recessed

$3.49

$

Usually ships in 2-12 days

0

20

Murray 701299YP

SHIELD, Lower Belt

$14.99

$

Usually ships in 2-12 days

0

21

Murray 701255YP

ADAPTOR, Blade

$23.99

$

Usually ships in 2-12 days

0

22

Murray 701256YP

DISC, Friction

$3.99

$

Usually ships in 2-12 days

0

23

Murray 701195YP

BLADE, 19"

$37.99

$

Usually ships in 2-12 days

0

23

Murray 701332YP

BLADE, 21"

$33.99

$

Usually ships in 2-12 days

0

24

Murray 701257YP

CLIP

$4.49

$

Usually ships in 2-12 days

0

25

Murray 701196YP

SPRING, Dishing

$11.99

$

Usually ships in 2-12 days

0

26

Murray 701197YP

BOLT, Blade

$9.99

$

Usually ships in 2-12 days

0

68

Murray 701223YP

SPRING, Torsion

Note: (Used on 19" Decks)

$11.99

$

Usually ships in 2-12 days

0

68

Murray 701310YP

SPRING, Torsion

Note: (Used on 21" Decks)

$11.99

$

Usually ships in 2-12 days

0

69

Murray 701276YP

COVER, Rear

Note: (Used on 19" Decks)

$131.99

$

Usually ships in 2-12 days

0

69

Murray 701311YP

COVER, Rear

Note: (Used on 21" Decks)

$131.99

$

Usually ships in 2-12 days

0

70

Murray 701224YP

SHAFT, Rear Cover

Note: (Used on 19" Decks)

$13.99

$

Usually ships in 2-12 days

0

70

Murray 701312YP

SHAFT, Rear Cover

Note: (Used on 21" Decks)

$13.99

$

Usually ships in 2-12 days

0

71

Murray 701225YP

SHIELD, Upper Pulley

Note: (Used on 19" Decks)

$37.99

$

Usually ships in 2-12 days

0

71

Murray 701313YP

SHIELD, Upper Pulley

Note: (Used on 21" Decks)

$37.99

$

Usually ships in 2-12 days

0

72

Murray 701226YP

SCREW, Inner Hexagon Tapping

$3.99

$

Usually ships in 2-12 days

0

H

Murray 701227YP

GRASS CATCHER ASSEMBLY

Note: (Used on 19" Decks) (Includes Ref. Nos. 73 & 74)

$213.99

$

Usually ships in 2-12 days

0

H

Murray 701314YP

GRASS CATCHER ASSEMBLY

Note: (Used on 21" Decks) (Includes Ref. Nos. 73 & 74)

$210.99

$

Usually ships in 2-12 days

0

73

FRAME, Grass Catcher, 19" Deck

Note: (Not a serviceable part, order Ref. H)

$

$

Not available

73

FRAME, Grass Catcher, 21" Deck

Note: (Not a serviceable part, order Ref. H)

$

$

Not available

74

BAG, Grass Catcher, 19" Deck

Note: (Not a serviceable part, order Ref. H)

$

$

Not available

74

BAG, Grass Catcher, 21" Deck

Note: (Not a serviceable part, order Ref. H)

$

$

Not available

78

Murray 701228YP

NUT, Nylon Insert, Torque Type

$3.49

$

Usually ships in 2-12 days

0

79

Murray 701282YP

BRACKET, Handle, RH

$78.99

$

Usually ships in 2-12 days

0

81

Murray 701229YP

BOLT, Carriage

$3.99

$

Usually ships in 2-12 days

0

82

Murray 701283YP

BRACKET, Handle, LH

$78.99

$

Usually ships in 2-12 days

0

83

Murray 701230YP

WASHER, Flat, C Class

$3.49

$

Usually ships in 2-12 days

0

84

Murray 702120YP

PLUG, Mulch, 19"

$119.99

$

Usually ships in 2-12 days

0

84

Murray 702122YP

PLUG, Mulch, 21"

$162.99

$

Usually ships in 2-12 days

0

85

Murray 702119YP

BLADE, Mulch, 19"

Note: (Optional Accessory)

$30.99

$

Usually ships in 2-12 days

0

85

Murray 702121YP

BLADE, Mulch, 21"

Note: (Optional Accessory)

$31.99

$

Usually ships in 2-12 days

0
