MXU 16550 E (881559) - Murray 16" Walk-Behind Mower, Canada (2012) Height of Cut Group (881571) Parts Diagram

16" Walk-Behind Mower, Canada

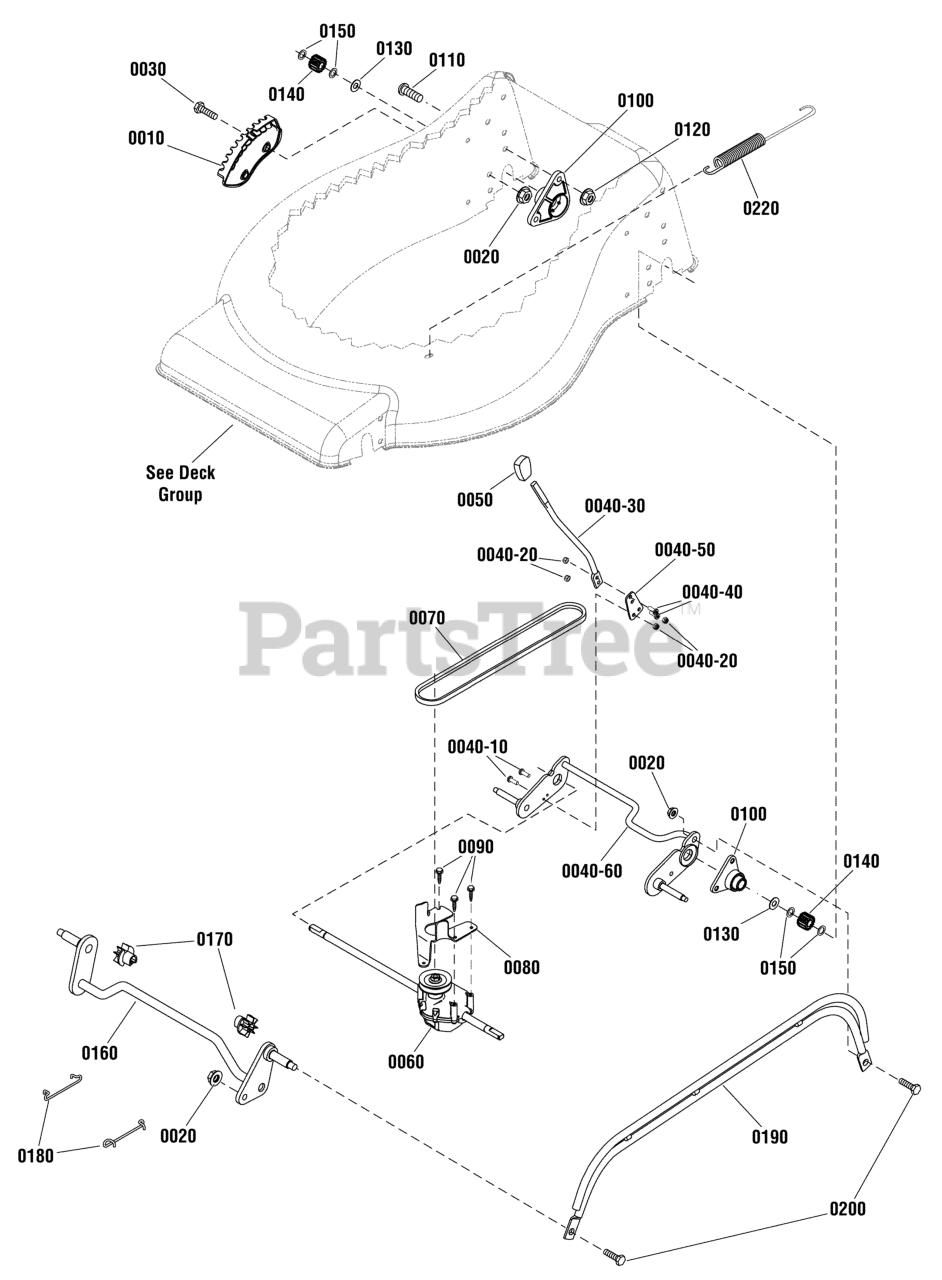

Height of Cut Group (881571) Parts Diagram

  • Title
0010

Murray 880960YP

INDEX BRACKET, Standard Wheel

$16.99

$

Usually ships in 2-12 days

0

0020

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0030

Murray 22142GS

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0040-10

Murray 880339YP

SCREW, Torx Head

$3.99

$

In Stock, only 4 left!

0

0040-20

Murray 880428YP

NUT, Nylock, M5 x 0.8

$3.99

$

Usually ships in 2-12 days

0

0040-30

Murray 880540YP

LEVER, Height Adjust

$7.99

$

Usually ships in 2-12 days

0

0040-40

Murray 880577YP

SCREW, Torx, M5 - 0.8 x 12.5

$3.99

$

In Stock, only 4 left!

0

0040-50

Murray 880642YP

SPRING, Height Adjustment

$5.99

$

In Stock, only 2 left!

0

0040-60

Murray 880873BIYP

CROSSBAR, Rear, Standard Wheel
(Superseded to 880873BMYP)

$63.99

$

Usually ships in 2-12 days

0

0050

Murray 881059YP

KNOB, Adjuster, Red

$5.49

$

In Stock, only 2 left!

0

0060

Murray 880379YP

TRANSMISSION

$91.99

$

Usually ships in 2-12 days

0

0070

Murray 880424YP

BELT, Drive

$22.99

$

Usually ships in 2-12 days

0

0080

Murray 880282YP

GUIDE, Belt

$12.99

$

Usually ships in 2-12 days

0

0090

Murray 880760YP

SCREW, Plastite, #10-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 880787YP

RETAINER ASSEMBLY, Ball Bearing

$17.99

$

Usually ships in 2-12 days

0

0110

Murray 880845YP

SCREW, Torx Truss Head, 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

0120

Murray 880859YP

NUT, Flange Lock, 1/4-20

$3.99

$

Usually ships in 2-12 days

0

0130

Murray 880324YP

WASHER, Thrust

$3.49

$

Usually ships in 2-12 days

0

0140

Murray 880226YP

GEAR, Pinion, 11 Teeth, Standard Wheel

$7.99

$

Usually ships in 2-12 days

0

0150

Murray 880269YP

RING, Retaining

$3.99

$

Usually ships in 2-12 days

0

0160

Murray 880459YP

CROSSBAR ASSEMBLY, Front

$35.99

$

Usually ships in 2-12 days

0

0170

Murray 880050YP

BUSHING, Front

$4.99

$

Usually ships in 2-12 days

0

0180

Murray 881163YP

SPRING CLIP, Crossbar

$8.99

$

In Stock, Qty 7

0

0190

Murray 881478AYP

LIFTER LINK

$50.99

$

Usually ships in 2-12 days

0

0200

Murray 880651YP

BOLT, Shoulder, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

0220

Murray 880052YP

SPRING, Extension

$6.99

$

Usually ships in 2-12 days

0
