MXMH 19850 EX (1696369-00) - Murray 19" Walk-Behind Mower (2013) Lift Group (1696369) Parts Diagram

19" Walk-Behind Mower

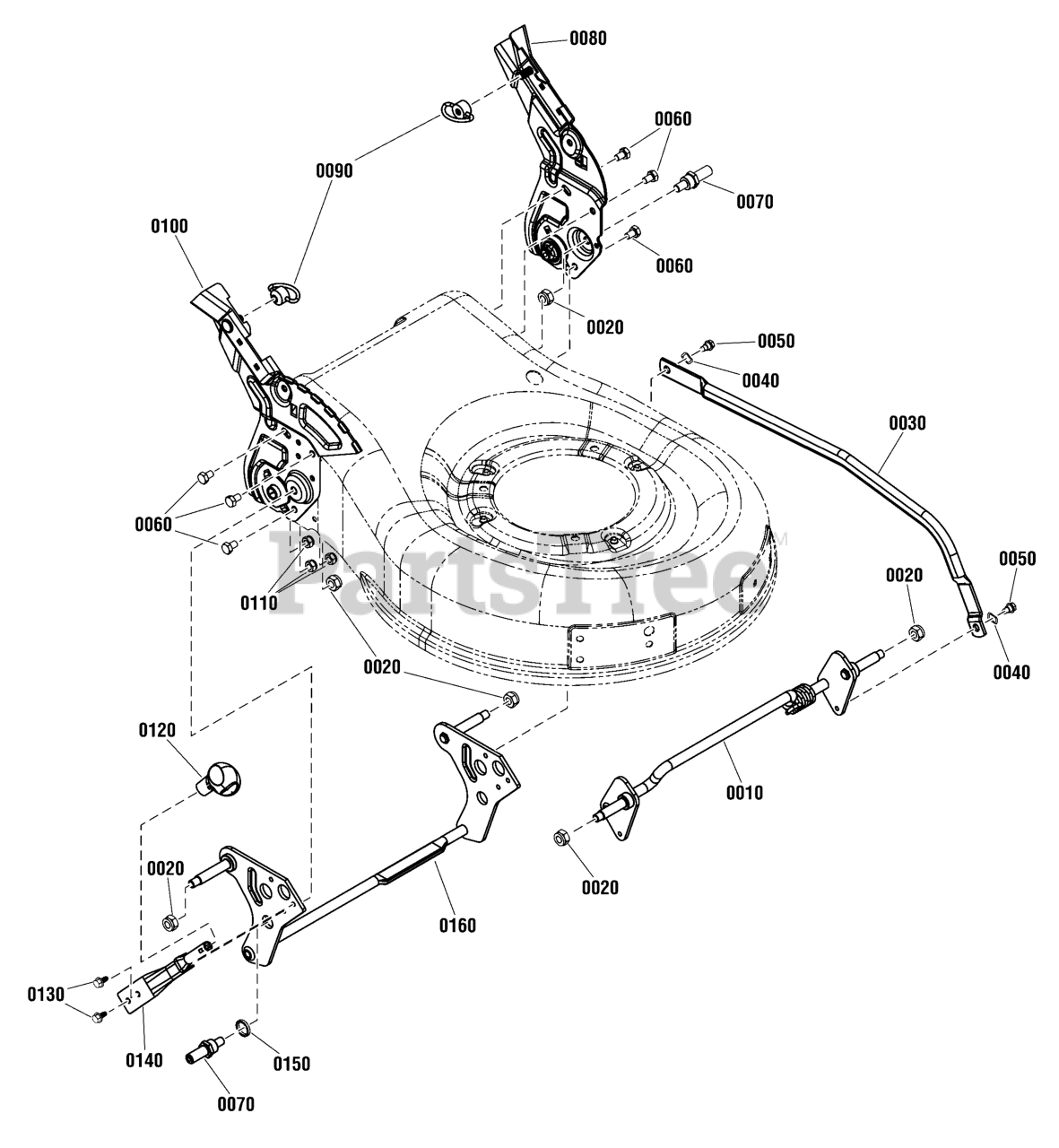

Lift Group (1696369) Parts Diagram

  • Title
0010

Murray 703610

CROSSBAR ASSEMBLY, Front

$

$

Currently unavailable

0020

Murray 703633

NUT, M10 x 1.25

$

$

Currently unavailable

0030

Murray 703744

LINK, Single Lever

$

$

Currently unavailable

0040

Murray 703521

BOLT, Shoulder, 1/4-20 x 1/2

$11.99

$

Usually ships in 2-12 days

0

0050

Murray 703712

WASHER, Wave, 3/8 x 0.598

$

$

Currently unavailable

0060

Murray 703627

SCREW, M8 x 12

$

$

Currently unavailable

0070

Murray 703632

SHAFT, Rear Axle Pivot

$

$

Currently unavailable

0080

Murray 703614

BRACKET ASSEMBLY, LH

$

$

Currently unavailable

0090

Murray 703634

NUT, WING, 3/8-16

$

$

Currently unavailable

0100

Murray 703617

BRACKET ASSEMBLY, RH

$

$

Currently unavailable

0110

Murray 703635

NUT, M8

$

$

Currently unavailable

0120

Murray 703648

KNOB, Adjuster, Black

$

$

Currently unavailable

0130

Murray 703698

LEVER, Height Adjustment

$

$

Currently unavailable

0140

Murray 7091084YP

SCREW, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

0150

Murray 703787

WASHER, .690 x .870 x .150

$

$

Currently unavailable

0160

Murray 703611

CROSSBAR ASSEMBLY, Rear

$

$

Currently unavailable
