MXMH 19850 EX (1696369-00) - Murray 19" Walk-Behind Mower (2013) Handles Group (1696369) Parts Diagram

19" Walk-Behind Mower

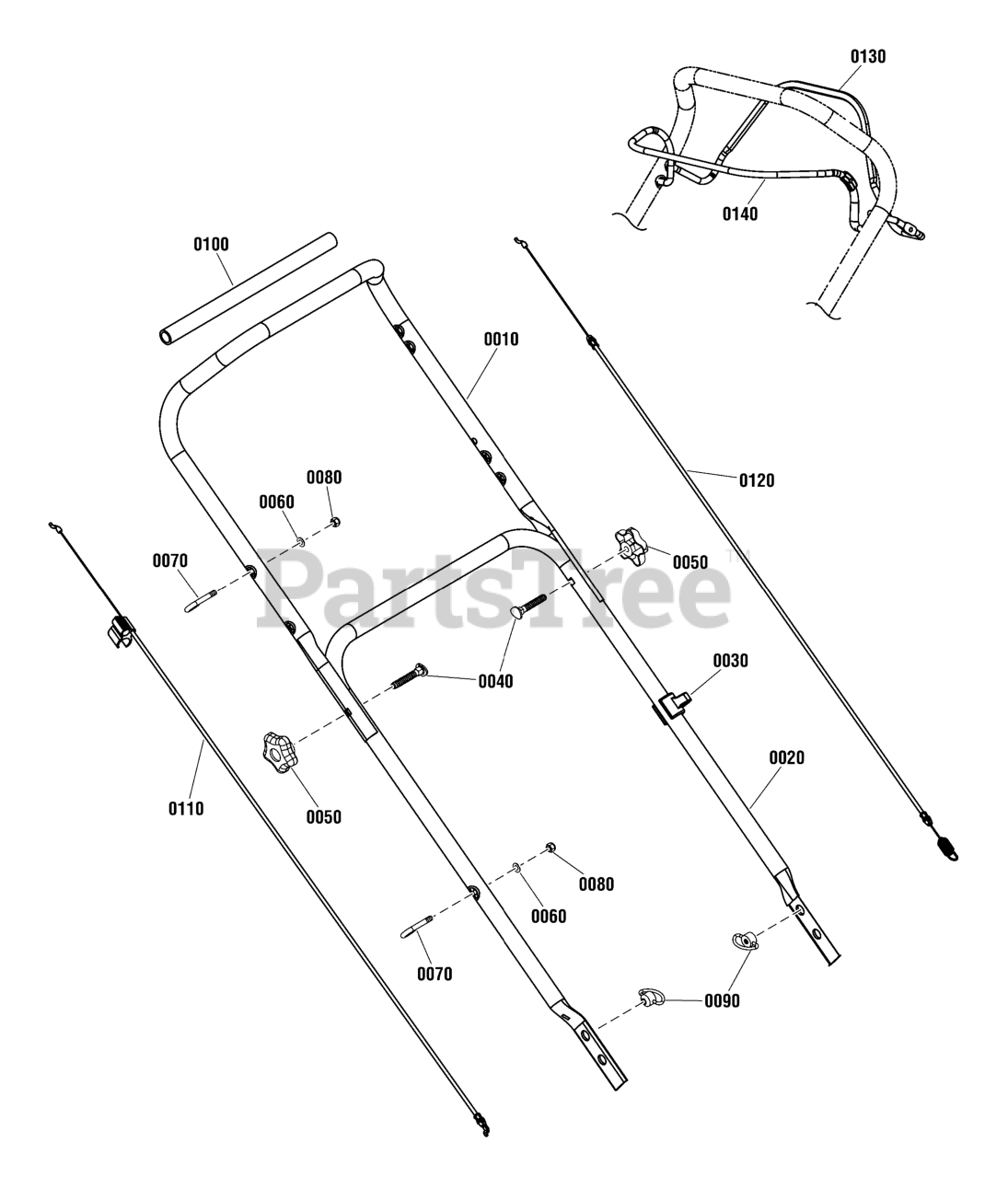

Handles Group (1696369) Parts Diagram

  • Title

0010

Murray 703750

HANDLE, Upper

$

$

Currently unavailable

0020

Murray 703748

HANDLE, Lower

$

$

Currently unavailable

0030

Murray 703689

CABLE GUIDE

$

$

Currently unavailable

0040

Murray 7091013SM

BOLT, Curved Head Square, 5/16-18 x2.00

$5.49

$

In Stock, only 1 left!

0

0050

Murray 1101453MA

KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0060

Murray 703781

WASHER, A6.4 DIN 125

$

$

Currently unavailable

0070

Murray 703768

GUIDE, Starter Rope, M6

$

$

Currently unavailable

0080

Murray 67885GS

NUT, M6 DIN 985

$6.99

$

In Stock, only 1 left!

0

0090

Murray 703634

NUT, WING, 3/8-16

$

$

Currently unavailable

0100

Murray 703647

TUBING, Foam, 22X3

$

$

Currently unavailable

0110

Murray 703724

CABLE, ENGINE BRAKE, 1151mm

$

$

Currently unavailable

0120

Murray 703723

CABLE, DRIVE CONTROL

$

$

Currently unavailable

0130

Murray 703735

LEVER, Drive, Black

$

$

Currently unavailable

0140

Murray 703736

LEVER, Engine Stop, Black

$

$

Currently unavailable
