MXMH 19850 EX (1696369-00) - Murray 19" Walk-Behind Mower (2013) Drive Group (1696369) Parts Diagram

19" Walk-Behind Mower

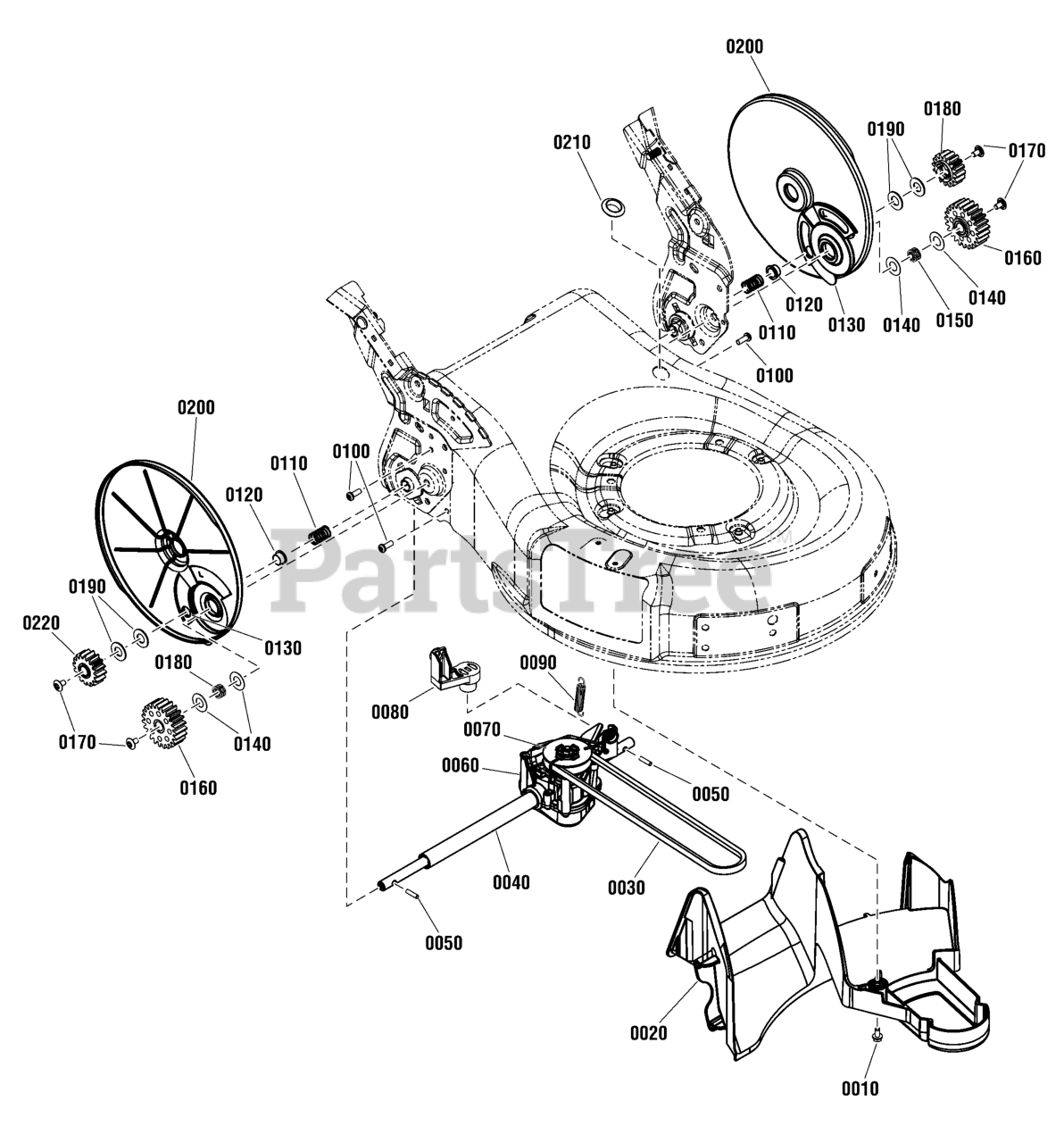

Drive Group (1696369) Parts Diagram

  • Title
0010

Murray 703619

SCREW, M6 x 1 x 12

$

$

Currently unavailable

0020

Murray 703679

BAFFLE, Rear

$

$

Currently unavailable

0030

Murray 703761

BELT 3L x 30.89

$

$

Currently unavailable

0040

Murray 703753

SPACER

$

$

Currently unavailable

0050

Murray 703636

PIN, Axle, 3/16 x 3/4

$

$

Currently unavailable

0060

Murray 703592

TRANSMISSION, Rear Wheel Drive

$

$

Currently unavailable

0070

Murray 703699

BELT GUIDE, Transmission

$

$

Currently unavailable

0080

Murray 703652

SHIFTER

$

$

Currently unavailable

0090

Murray 703691

SPRING, 2-1/2

$

$

Currently unavailable

0100

Murray 703622

SCREW, M6 x 16

$

$

Currently unavailable

0110

Murray 703703

SPRING, Compression

$

$

Currently unavailable

0120

Murray 703758

BUSHING, Flanged

$

$

Currently unavailable

0130

Murray 703778

COVER LOCK, Wheel, Rear

$

$

Currently unavailable

0140

Murray 7091192SM

WASHER, Flat, 1/2 x 1

$3.99

$

Usually ships in 2-12 days

0

0150

Murray 703704

WASHER, Spring

$

$

Currently unavailable

0160

Murray 703643

GEAR, 23

$

$

Currently unavailable

0170

Murray 703480

SCREW, 1/4-20 x 0.390

$9.99

$

Usually ships in 2-12 days

0

0180

Murray 703641

GEAR, 16, LH

$

$

Currently unavailable

0190

Murray 703710

WASHER, 1/2 x 1

$

$

Currently unavailable

0200

Murray 703671

DUST COVER, Wheel, Rear

$

$

Currently unavailable

0210

Murray 703705

GROMMET, Rubber

$10.99

$

Usually ships in 2-12 days

0

0220

Murray 703642

GEAR, 16, RH

$

$

Currently unavailable
