MXH 550 (880595X51N) - Murray 19" Walk-Behind Mower, Canada (2009) Deck & Engine Group Parts Diagram

19" Walk-Behind Mower, Canada

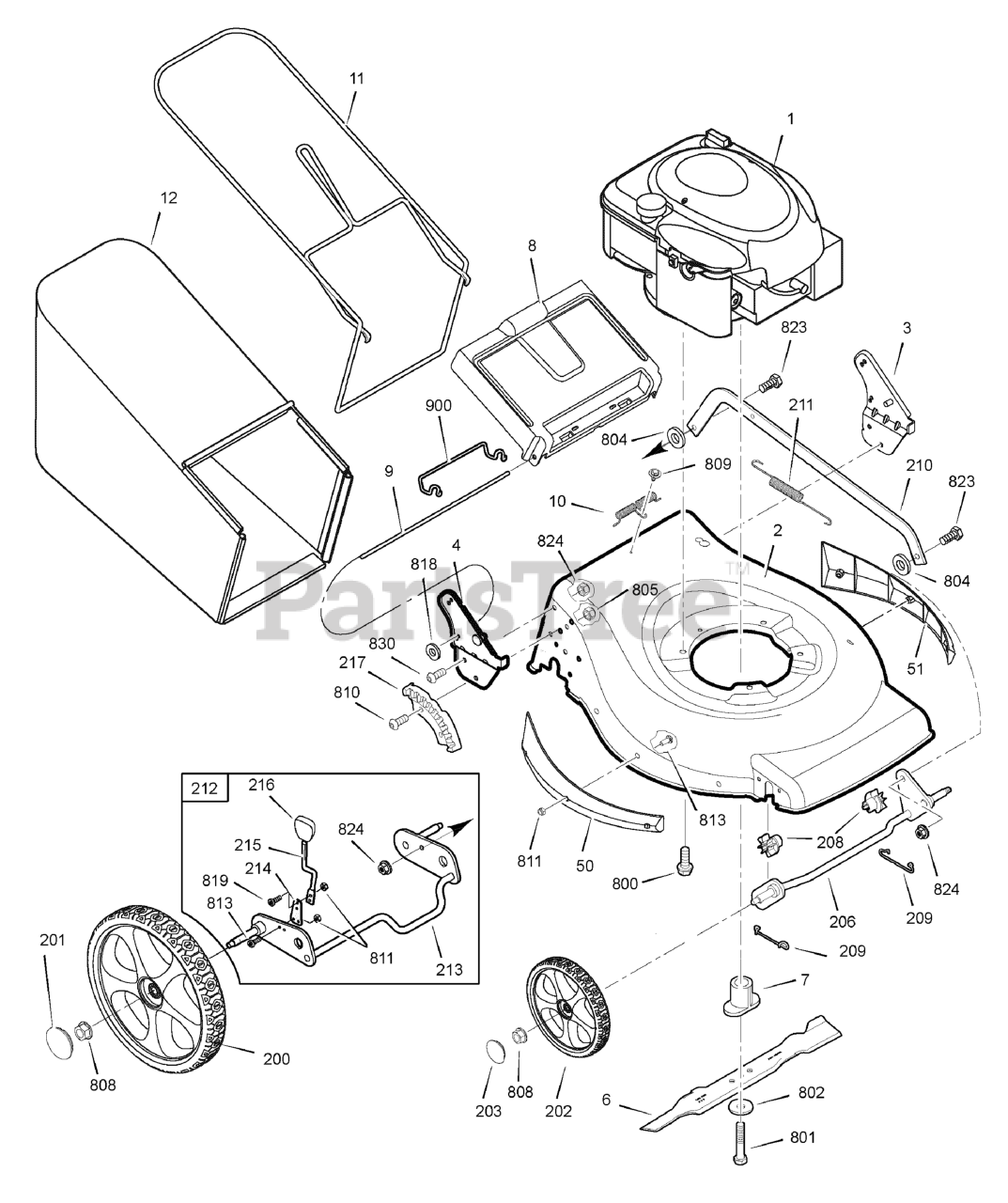

Deck & Engine Group Parts Diagram

  • Title
1

Murray 10T802-0140-B1

* ENGINE

Note: (Engine Model: 10T802-0140-B1)

$

$

Currently unavailable

2

Murray 880864YP

MOWER HOUSING

$

$

Currently unavailable

3

Murray 700141

BRACKET ASSEMBLY, Left Handle

$

$

Currently unavailable

4

Murray 700142

BRACKET ASSEMBLY, Right Handle

$

$

Currently unavailable

6

Murray 700162

BLADE, 16 in
(Superseded to 880638BZYP)

$26.99

$

In Stock, only 1 left!

0

7

Murray 700214

BLADE ADAPTER ASSEMBLY
(Superseded to 880567YP)

$31.99

$

In Stock, only 1 left!

0

8

Murray 700099

DOOR, Rear
(Superseded to 700099YP)

$22.99

$

Usually ships in 2-12 days

0

9

Murray 700095

ROD, Rear Door
(Superseded to 880214YP)

$10.99

$

Usually ships in 2-12 days

0

10

Murray 700001

SPRING, Torsion Rear Door
(Superseded to 700001YP)

$5.49

$

Usually ships in 2-12 days

0

11

Murray 700208

FRAME ASSEMBLY

$

$

Currently unavailable

12

Murray 700100

BAG ASSEMBLY

$

$

Not available

50

Murray 700226

SIDE GUARD, Right

$

$

Currently unavailable

51

Murray 700227

SIDE GUARD, Left

$

$

Currently unavailable

200

Murray 700193

WHEEL, Rear
(Superseded to 880695YP)

$47.99

$

Usually ships in 2-12 days

0

201

Murray 700197

HUBCAP, Rear
(Superseded to 880700YP)

$12.99

$

Usually ships in 2-12 days

0

202

Murray 700202

WHEEL, Front
(Superseded to 880707YP)

$34.99

$

Usually ships in 2-12 days

0

203

Murray 700198

HUBCAP, Front
(Superseded to 880701YP)

$13.99

$

Usually ships in 2-12 days

0

206

Murray 700225

CROSSBAR ASSEMBLY, Front
(Superseded to 880550YP)

$38.99

$

Usually ships in 2-12 days

0

208

Murray 700059

BUSHING, Front Crossbar
(Superseded to 880050YP)

$4.99

$

Usually ships in 2-12 days

0

209

Murray 700071

SPRING, Clip Crossbar
(Superseded to 881163YP)

$8.99

$

In Stock, Qty 7

0

210

Murray 700205

LINK, Single Lever
(Superseded to 881174AYP)

$31.99

$

Usually ships in 2-12 days

0

211

Murray 700073

SPRING, Extension
(Superseded to 880052YP)

$6.99

$

Usually ships in 2-12 days

0

212

Murray 880854YP

CROSSBAR ASSEMBLY, Rear

$75.99

$

Usually ships in 2-12 days

0

213

Murray 880855YP

REAR CROSSBAR

$60.99

$

Usually ships in 2-12 days

0

214

Murray 700164

SPRING, Adjuster
(Superseded to 880642YP)

$5.99

$

In Stock, only 2 left!

0

215

Murray 700243

LEVER, Height Adjustment
(Superseded to 880540YP)

$7.99

$

Usually ships in 2-12 days

0

216

Murray 700172

KNOB, Adjuster

$

$

Currently unavailable

217

Murray 700224

BRACKET, Height Adjuster

$

$

Not available

800

Murray 0025X6MA

SCREW, Hex Head, 3/8-16 x 1

$5.49

$

Usually ships in 2-12 days

0

801

Murray 700011

BOLT, Blade, 3/8-24 x 2
(Superseded to 880034YP)

$4.49

$

Usually ships in 2-12 days

0

802

Murray 1101989MA

WASHER, Belleville

$5.49

$

Usually ships in 2-12 days

0

804

Murray 700150

WASHER, 5/8
(Superseded to 880607YP)

$3.99

$

Usually ships in 2-12 days

0

805

Murray 700002

NUT, Nylock, M8 x 1-1/4
(Superseded to 880020YP)

$3.99

$

Usually ships in 2-12 days

0

808

Murray 015X84MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

809

Murray 26X245MA

SCREW, Self Tap, #10-16 x 1/2

$4.49

$

In Stock, Qty 6

0

810

Murray 700081

BOLT, Hex Key Head
(Superseded to 880323YP)

$3.99

$

In Stock, only 4 left!

0

811

Murray 700103

NUT, Nylock
(Superseded to 880428YP)

$3.99

$

Usually ships in 2-12 days

0

813

Murray 700122

SCREW, Torx Head, M5 x .8 x 14mm
(Superseded to 880339YP)

$3.99

$

In Stock, only 4 left!

0

818

Murray 700156

NUT, Speed
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

819

Murray 700218

SCREW, Torx Head, M5 x .8 x 12.5mm
(Superseded to 880577YP)

$3.99

$

In Stock, only 4 left!

0

823

Murray 700247

BOLT, Shoulder, 5/16-18 x 1
(Superseded to 880651YP)

$3.99

$

Usually ships in 2-12 days

0

824

Murray 015X88MA

Nut, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

830

Murray 48901MA

SCREW , 5/16-18 x 3/4

$3.99

$

Usually ships in 2-12 days

0

900

Murray 880910YP

SPRING CLIP, Rear Door

$

$

Currently unavailable

1000

$242.99

$

Usually ships in 2-12 days

0

1001

Murray 880900YP

MANUAL KIT

$

$

Currently unavailable
