MX 9899 (41AE899C077) - McCulloch Hedge Trimmer, Electric Hedge Trimmer Ass'y Parts Diagram

Hedge Trimmer, Electric

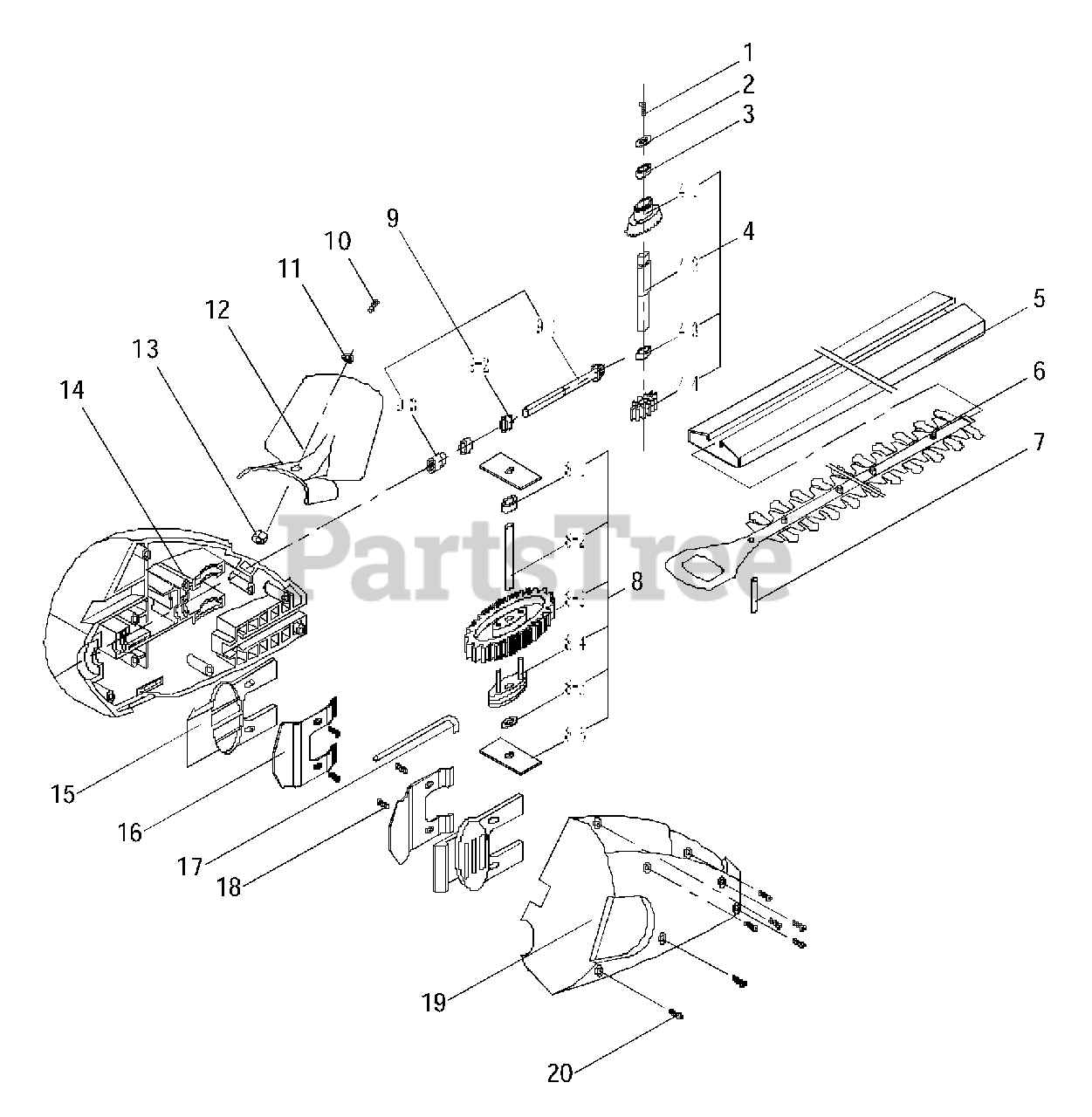

Hedge Trimmer Ass'y Parts Diagram

  • Title

MTD MC-9238-981001

HEDGE TRIMMER ASS'Y

$

$

Not available

1

MC-6SDAB03-10

SCREW

$

$

Not available

2

$

$

Not available

3

$

$

Not available

4

MTD MC-9228-981003

TRANSMISSION ASS'Y

$

$

Currently unavailable

$

$

Not available

4

MTD MC-6127-981001

TRANSMISSION SHAFT

$

$

Not available

4

$

$

Not available

4

MTD MC-6073-981002

GEAR PINION

$

$

Not available

5

MTD MC-6017-981001

BLADE COVER

$

$

Not available

$

$

Not available

$

$

Currently unavailable

8

MTD MC-6228-981002

RECIPROCAL ASS'Y

$

$

Not available

8

MTD MC-6124-981001

SHAFT SLEEVE

$

$

Not available

8

MTD MC-6239-981001

FIXED LINK

$

$

Not available

8

MTD MC-6073-969903

GEAR WHEEL

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

9

MTD MC-6228-981001

GEAR SHAFT ASS'Y

$

$

Not available

9

MTD MC-6110-981001

GEAR SHAFT

$

$

Not available

9

$

$

Not available

9

MTD MC-6081-981001

JOINTING SLEEVE

$

$

Not available

10

MC-6SDAB05-12

SCREW

$

$

Not available

11

$

$

Not available

$

$

Not available

$

$

Not available

14

MTD MC-6217-981001

HOUSING (L)

$

$

Not available

15

$

$

Not available

16

$

$

Not available

$

$

Not available

$

$

Not available

19

MTD MC-6217-981002

HOUSING (R)

$

$

Not available

$

$

Not available
