MX 675 RMD 22 H (866087-00) - Murray 22" Walk-Behind Mower (2015) Wheels Group (866087) Parts Diagram

22" Walk-Behind Mower

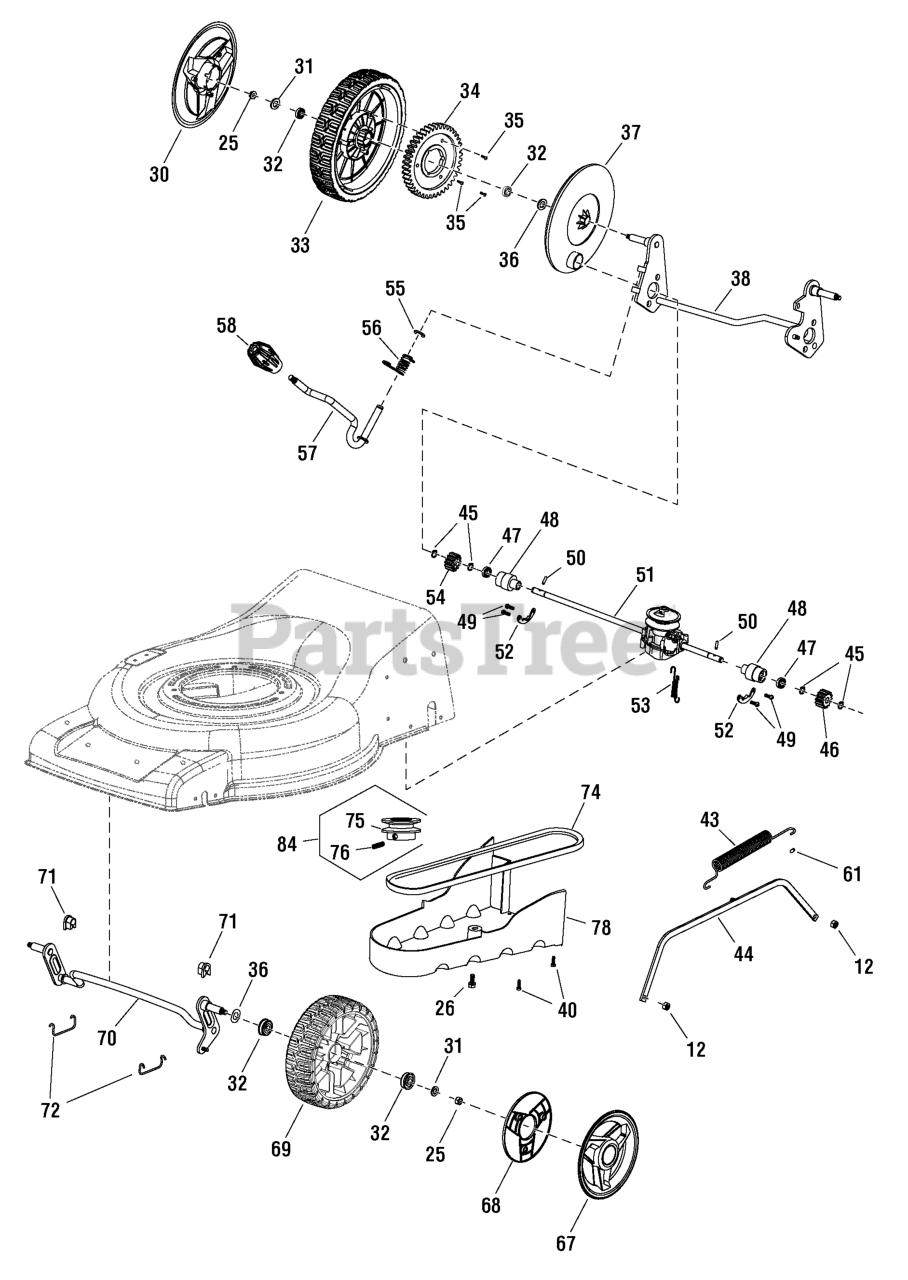

Wheels Group (866087) Parts Diagram

  • Title

12

Murray 707196

NUT, M6

$3.49

$

Usually ships in 2-12 days

0

25

Murray 707274

NUT, Hex, M8

$2.99

$

Usually ships in 2-12 days

0

26

Murray 707577

BOLT, Hex Flange, M8 x 16

$2.99

$

Usually ships in 2-12 days

0

30

Murray 707254

HUBCAP, Rear

$

$

Currently unavailable

31

Murray 707279

WASHER, Plain, 8

$2.99

$

Usually ships in 2-12 days

0

32

Murray 707192

BEARING

$4.99

$

Usually ships in 2-12 days

0

33

Murray 707347

WHEEL, Rear

$

$

Currently unavailable

34

Murray 707348

GEAR

$

$

Currently unavailable

35

Murray 707376

SCREW, ST 4.8 x 16

$

$

Currently unavailable

36

Murray 707194

WASHER, Wave

$3.99

$

Usually ships in 2-12 days

0

37

Murray 707349

DUST COVER, Rear

$

$

Currently unavailable

38

Murray 707350

AXLE, Rear

$

$

Currently unavailable

40

Murray 707374

SCREW, With Washer, ST4.8 x 13

$2.99

$

Usually ships in 2-12 days

0

43

Murray 707286

SPRING, Connecting Rod

$

$

Currently unavailable

44

Murray 707578

CONNECTING ROD

$

$

Currently unavailable

45

Murray 707355

WASHER, Ring, 12

$

$

Currently unavailable

46

Murray 707356

DRIVE GEAR, Left

$6.99

$

Usually ships in 2-12 days

0

47

Murray 707357

BEARING

$5.49

$

Usually ships in 2-12 days

0

48

Murray 707358

BUSHING

$11.99

$

Usually ships in 2-12 days

0

49

Murray 707359

SCREW, M6 x 12

$

$

Currently unavailable

50

Murray 707360

PIN

$3.49

$

Usually ships in 2-12 days

0

51

Murray 707361

GEAR BOX ASSEMBLY

$

$

Currently unavailable

52

Murray 707362

RETAINER, Axle

$

$

Currently unavailable

53

Murray 707363

SPRING, Tension

$

$

Currently unavailable

54

Murray 707364

DRIVE GEAR, Right

$7.99

$

Usually ships in 2-12 days

0

55

Murray 707285

WASHER, Split, 8

$2.99

$

Usually ships in 2-12 days

0

56

Murray 707284

SPRING, Height Adjust

$3.99

$

Usually ships in 2-12 days

0

57

Murray 707306

LEVER, Height Adjust

$

$

Currently unavailable

58

Murray 707282

KNOB, Height Adjust

$5.49

$

Usually ships in 2-12 days

0

61

Murray 707314

CAP, Spring

$3.49

$

Usually ships in 2-12 days

0

67

Murray 707188

HUBCAP, Front

$

$

Currently unavailable

68

Murray 707189

DUST COVER

$

$

Currently unavailable

69

Murray 707193

WHEEL, Front

$

$

Currently unavailable

70

Murray 707576

AXLE, Front

$

$

Currently unavailable

71

Murray 707281

BUSHING

$2.99

$

Usually ships in 2-12 days

0

72

Murray 707737

CLIP, Axle

$3.49

$

Usually ships in 2-12 days

0

74

Murray 707366

V-BELT

$

$

Currently unavailable

75

Murray 707367

PULLEY, Belt

$9.49

$

Usually ships in 2-12 days

0

76

Murray 707368

SCREW, Set, M6 x 10

$2.99

$

Usually ships in 2-12 days

0

78

Murray 707369

COVER, Belt

$

$

Currently unavailable

84

Murray 707428

KIT, Belt Pulley

$9.49

$

Usually ships in 2-12 days

0
