MX 675 RMD 22 H (866087-00) - Murray 22" Walk-Behind Mower (2015) Deck & Engine Group (866087) Parts Diagram

22" Walk-Behind Mower

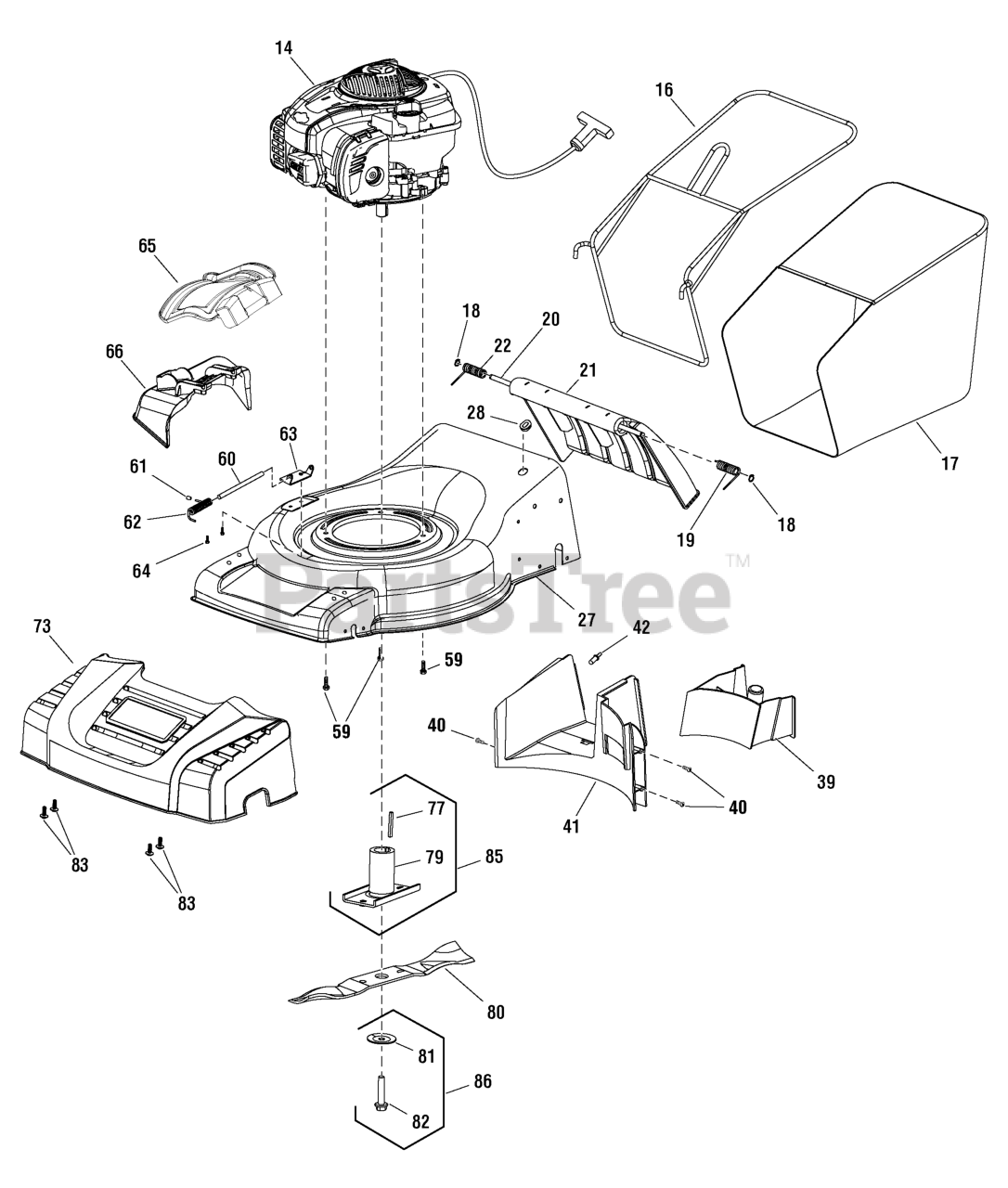

Deck & Engine Group (866087) Parts Diagram

  • Title

14

Murray 103M02-0011-H1

* ENGINE, Briggs & Stratton 675EX Series

$

$

Currently unavailable

16

Murray 707267

FRAME, Grass Bag

$

$

Currently unavailable

17

Murray 707266

BAG, Grass

$

$

Currently unavailable

18

Murray 707233

CIRCLIP

$2.99

$

Usually ships in 2-12 days

0

19

Murray 707268

SPRING, Left

$3.49

$

Usually ships in 2-12 days

0

20

Murray 707270

ROD

$5.49

$

Usually ships in 2-12 days

0

21

Murray 707269

REAR FLAP

$35.99

$

Usually ships in 2-12 days

0

22

Murray 707271

SPRING, Right

$3.49

$

Usually ships in 2-12 days

0

27

Murray 707345

DECK

$

$

Currently unavailable

28

Murray 707346

GROMMET

$

$

Currently unavailable

39

Murray 707351

MULCH PLUG

$

$

Currently unavailable

40

Murray 707374

SCREW, With Washer, ST4.8 x 13

$2.99

$

Usually ships in 2-12 days

0

41

Murray 707352

BAFFLE, Rear

$

$

Currently unavailable

42

Murray 707353

RIVET

$

$

Currently unavailable

59

Murray 707204

BOLT, Self Tapping

$3.99

$

Usually ships in 2-12 days

0

60

Murray 707316

ROD

$3.99

$

In Stock, only 1 left!

0

61

Murray 707314

CAP, Spring

$3.49

$

Usually ships in 2-12 days

0

62

Murray 707313

SPRING, Torsion

$4.49

$

Usually ships in 2-12 days

0

63

Murray 707315

BRACKET, Deflector

$3.99

$

Usually ships in 2-12 days

0

64

Murray 707317

BOLT, M6 x 10

$2.99

$

Usually ships in 2-12 days

0

65

Murray 707311

COVER, Mulching

$15.99

$

Usually ships in 2-12 days

0

66

Murray 707312

CHUTE, Side Discharge

$37.99

$

Usually ships in 2-12 days

0

73

Murray 707365

FRONT COVER

$

$

Currently unavailable

77

Murray 707292

KEY

$

$

Currently unavailable

79

Murray 707370

ADAPTER, Blade

$

$

Currently unavailable

80

Murray 707371

BLADE

$

$

Currently unavailable

81

Murray 707579

WASHER, Cone

$4.49

$

Usually ships in 2-12 days

0

82

Murray 707373

BOLT, Blade, 3/8-24 UNF

$

$

Currently unavailable

83

Murray 707374

SCREW, With Washer, ST4.8 x 13

$2.99

$

Usually ships in 2-12 days

0

85

Murray 707426

KIT, Blade Adapter

Note: (Includes Ref. Nos. 77 & 79)

$

$

Currently unavailable

86

Murray 707427

KIT, Hardware, Blade Bolt

Note: (Includes Ref. Nos. 81 & 82)

$

$

Currently unavailable
