MX 550 - Weed Eater String Trimmer Engine Parts Diagram

String Trimmer

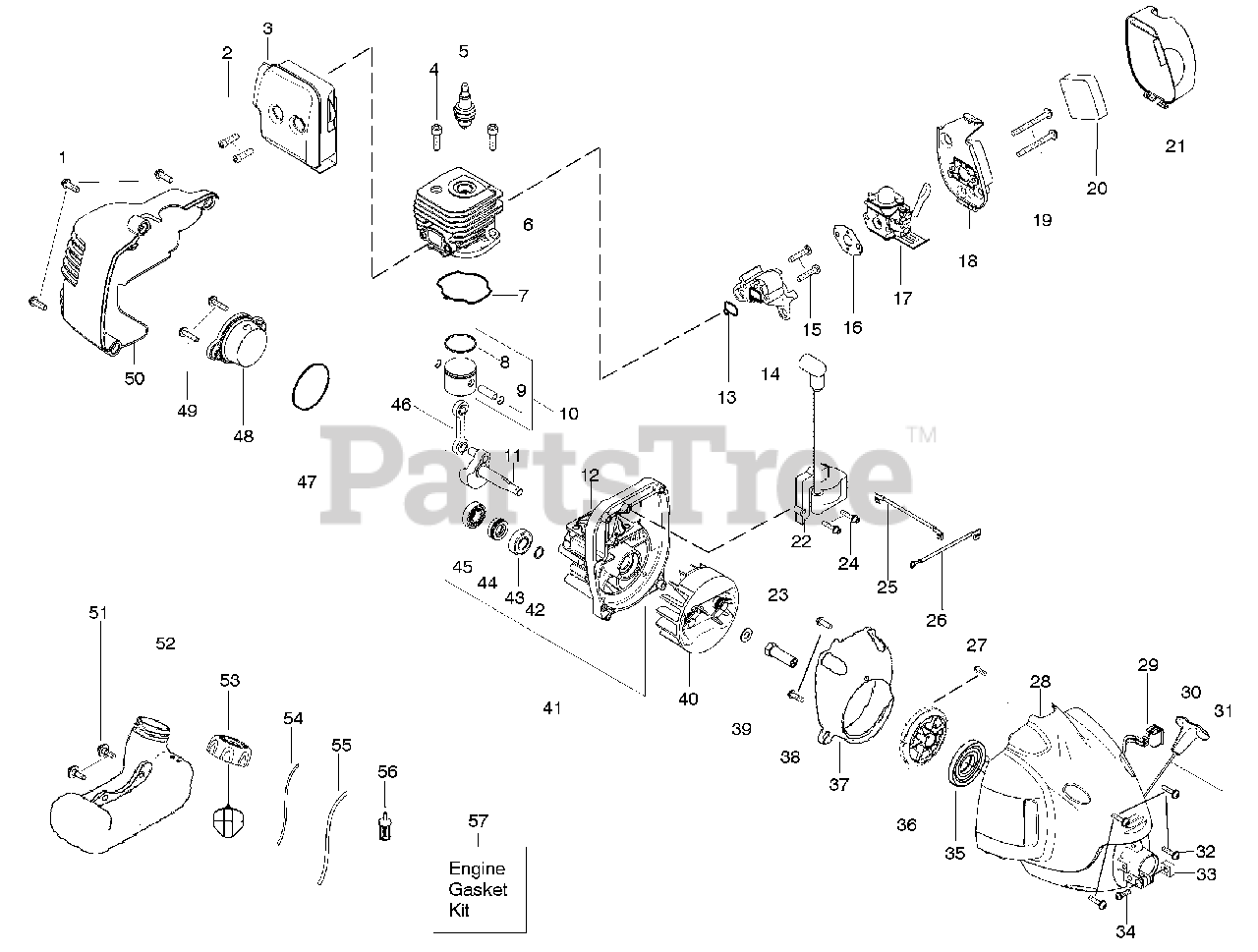

Engine Parts Diagram

  • Title

1

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

2

Poulan 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 7

0

3

Poulan 530057538

Assy-Muffler/Shield

Note: (Incl. 2)

$

$

Not available

4

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

5

Poulan 952030249

Spark Plug (RCJ 6Y)

$4.49

$

In Stock, Qty 20+

0

6

Poulan 530012541

Cylinder

$31.99

$

In Stock, only 1 left!

0

7

Poulan 530071750

Seal-Cylinder (kit)

$

$

Not available

8

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

9

Poulan 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

10

Poulan 530071357

Kit - Piston
(Superseded to 530071833)

Note: (Incl. 8, 9)

$37.99

$

In Stock, only 1 left!

0

11

Poulan 530012555

Assy-Crankshaft

$

$

Not available

12

Poulan 530012542

Assy-Crankcase

Note: (Incl. 43-45)

$

$

Not available

13

Poulan 530071750

Seal-Cyl/Carb.(kit)

$

$

Not available

14

Poulan 530057547

Adapter-Carb.

$10.99

$

Usually ships in 3-10 days

0

15

Poulan 530016309

Screw

$5.99

$

Usually ships in 3-10 days

0

16

Poulan 530071750

Gasket-Carb. (kit)

$

$

Not available

17

Poulan 530071752

Kit-Carb. Zama (C1U-W18)
(Superseded to 530071822)

$43.99

$

In Stock, only 1 left!

0

17

Poulan 545081808

Kit-Carb. Walbro (WT-669)
(Superseded to 530071822)

Note: Note: Repair kits are not available for this carburetor

$43.99

$

In Stock, only 1 left!

0

18

Poulan 530057544

Air Box

$

$

Not available

19

Poulan 530016429

Screw

$6.49

$

In Stock, only 4 left!

0

20

Poulan 530036575

Foam-Air Filter

$5.99

$

In Stock, only 2 left!

0

21

Poulan 530058740

Cover-Air Box

$

$

Not available

22

Poulan 530039234

Ignition Module
(Superseded to 501092801)

$24.99

$

In Stock, only 1 left!

0

23

Poulan 530027953

Coupling-Drive

$

$

Not available

24

Poulan 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

25

Poulan 530014663

Assy-Leadwire

$9.99

$

Usually ships in 3-10 days

0

26

Poulan 530014662

Assy-Ground Wire

$7.49

$

Usually ships in 3-10 days

0

27

Poulan 530016391

Screw

$2.23

$

Usually ships in 3-10 days

0

28

Poulan 530071732

Assy.-Fan Hsg

$19.99

$

Usually ships in 3-10 days

0

29

Poulan 530071356

Kit-Switch

$8.99

$

In Stock, only 1 left!

0

30

Poulan 530058742

Handle-Starter

$

$

Not available

31

Poulan 530071798

Kit - Rope

$

$

Not available

32

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

33

Poulan 530016382

Nut 12-24

$6.99

$

Usually ships in 3-10 days

0

34

Poulan 530016381

Screw 12-24

$3.49

$

Usually ships in 3-10 days

0

35

Poulan 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 7

0

36

Poulan 530071797

Kit-Starter Pulley
(Superseded to 545081852)

$13.99

$

Usually ships in 3-10 days

0

37

Poulan 530057548

Baffle
(Superseded to 545080601)

$9.99

$

In Stock, only 1 left!

0

38

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

39

Poulan 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 530054115

Assy-Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

41

Poulan 530071751

Assy-C'case & C'shaft

Note: (Incl. 11,12,42)

$

$

Not available

42

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 530055728

Outer Bearing

$9.99

$

Usually ships in 3-10 days

0

44

Poulan 530019264

Seal-C'shaft

$7.49

$

In Stock, only 1 left!

0

45

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

46

Poulan 530069945

Kit-Conn. Rod Assy
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

47

Poulan 530071750

O-Ring-C'case (kit)

$

$

Not available

48

Poulan 530058738

Assy-Plug
(Superseded to 530057954)

Note: (Incl.47)

$5.99

$

Usually ships in 3-10 days

0

49

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

50

Poulan 530058737

Shroud-Rear

$

$

Not available

51

Poulan 530016431

Retainer-Tank

$

$

Not available

52

Poulan 545103702

Assy-Fuel Tank

Note: (Incl. filter, lines & fuel cap)

$24.99

$

Usually ships in 3-10 days

0

53

Poulan 530058743

Assy-Fuel Cap

$9.99

$

Usually ships in 3-10 days

0

54

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

55

Poulan 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

56

Poulan 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 19

0

57

Poulan 530071750

Kit-Engine Gasket

Note: (Incl. 7,13,16,47)

$

$

Not available

57

Poulan 530057827

Choke Lever - Zama

Note: Not Shown

$9.99

$

In Stock, only 3 left!

0

57

Poulan 530058662

Choke Lever - Walbro

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

57

Poulan 530058709

Bulb-Purge

Note: Not Shown

$7.99

$

In Stock, only 1 left!

0
